Step Detail view
3
39 Mapping
Use server map
Step Detail view
1
2
RA91390962 AB-V1.3.3, en
ILS, ActiveShuttle | User interface
Description

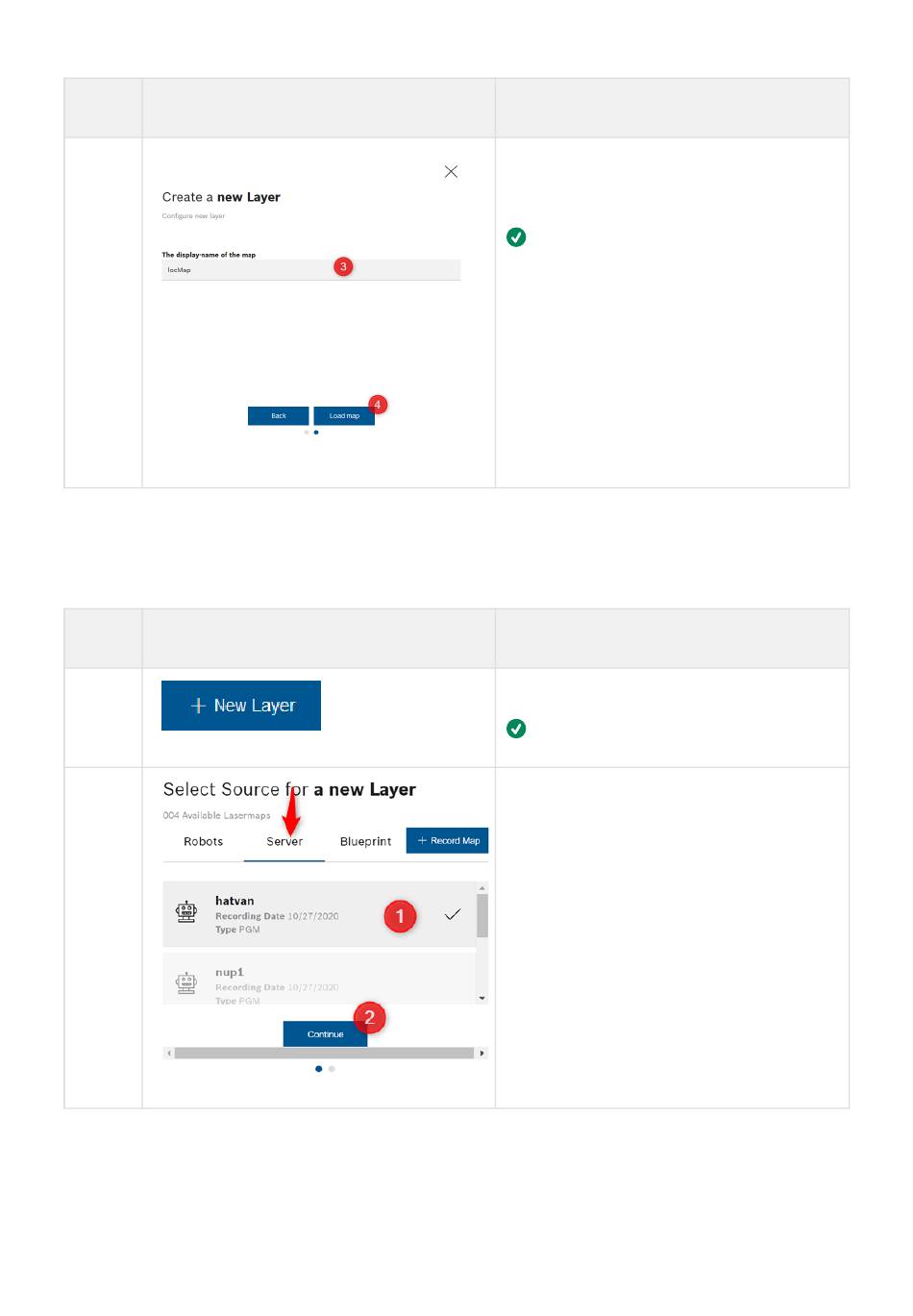

→ Enter display name for the new map (3).
→ Click on Load map (4).
The dialog window closes (5).
Description
→ Click on +New Layer.
A dialog appears.
→ Open the Server tab.
→ Select a map from the map list (1).
→ Click on Continue (2).
