Powered Drive - LINET Multicare X Instructions For Use And Technical Description

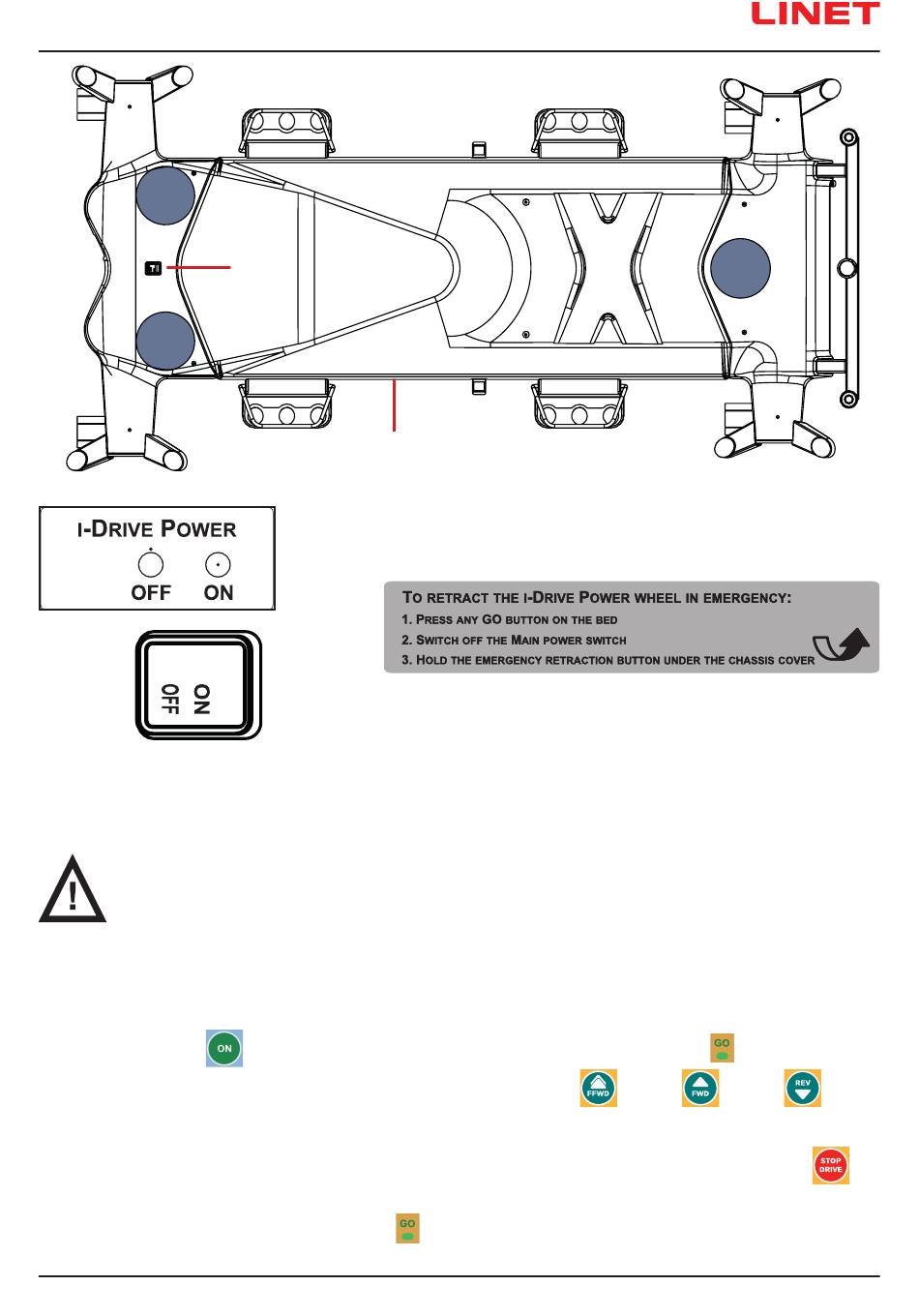

Fig. i-Drive Power Mains Switch with Label

17.7.6 Powered Drive

CAUTION!
Damage to property due to incorrect transport and involuntary movement!
► Prior to transport, ensure that the bed is disconnected from the mains.
► Prior to transport, ensure that the auxiliary outlet plug (if available) is disconnected from the mains.
► Ensure that the castors are locked prior to assembly, disassembly and maintenance (e.g.: i-Drive Power mainte-
nance).
► Ensure that the castors are locked when the bed is occupied.
► Hang the mains cable on the appropriate hook on the bed during transport.
1. Check, if the mains switch of i-Drive Power is activated.
2. Press the button
3. Place your hand on the Safety Sense touch sensor (1) and push the button
Your hand must be placed on the Safety Sense sensor to use the i-Drive Power, if released, the i-Drive Power will stop.
4. The i-Drive Power motor is immediately stopped and the electric brake is activated after pressing the red button
when braking or in emergency.
5. i-Drive Power control system is automatically deactivated and the electric brake is activated if no i-Drive Power function is
used for 3 minutes. This is signalized by the green LED
D9U001MCX-0101_03
1
2
Fig. i-Drive Power Emergency Retraction Button Label
on the Activation Panel. The i-Drive Power wheel will lower and the LED
1. i-Drive Power Mains Switch
2. i-Drive Power Emergency Retraction Button
which is extinguished after 3 minutes.
will flash.
or button or button .
