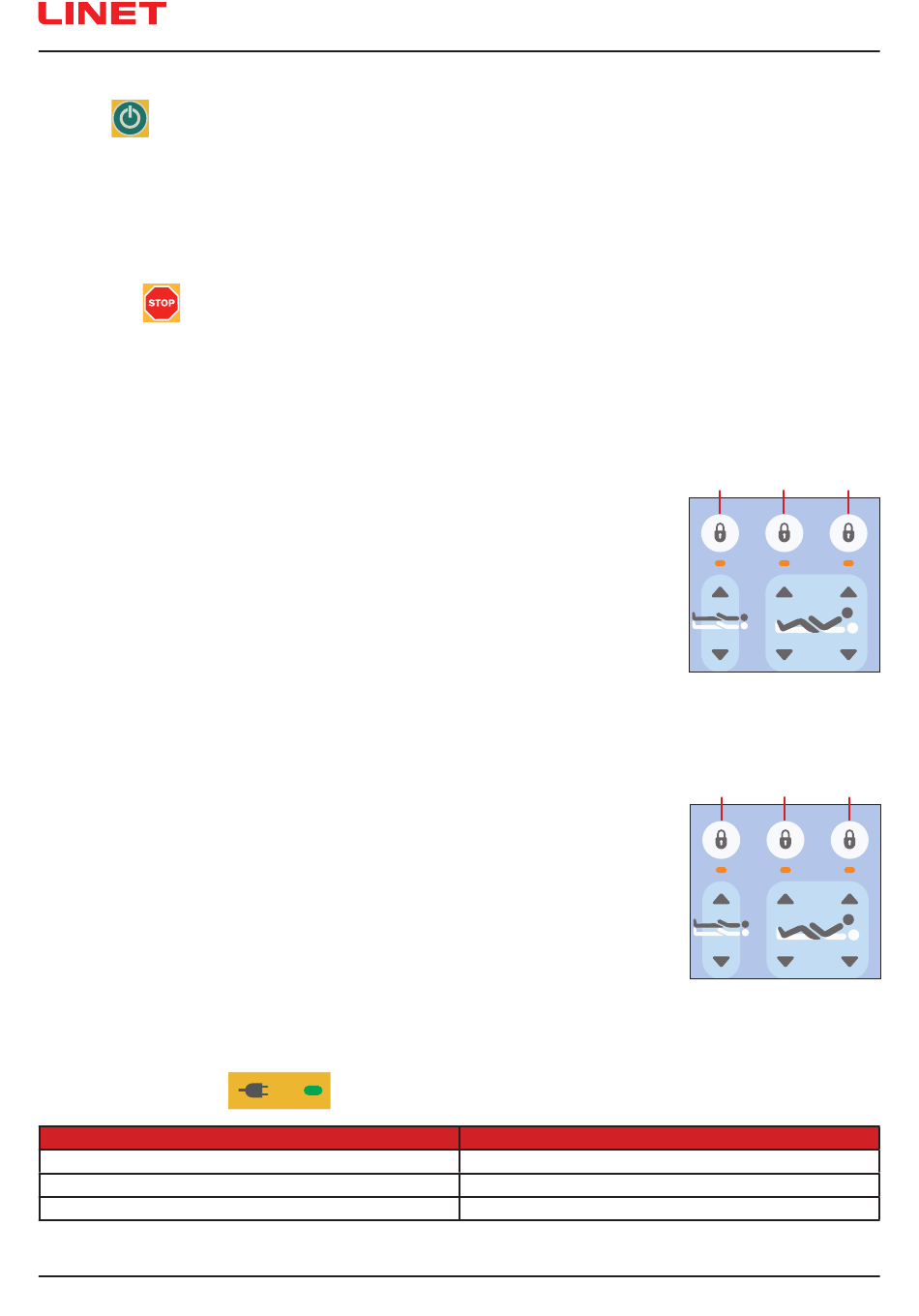

GO BUTTON
The button activates the keyboard of all control elements for 3 minutes, except for Lateral Tilt Foot Control.
During this time the following is possible:
► Adjusting individual mattress support platform elements by pressing the corresponding function buttons.
► Disabling individual functions with the lock buttons.
Each time a function button is pressed, the keyboard will remain active for another 3 minutes.
STOP BUTTON
Pressing button immediately stops all electronic bed movements.
FUNCTION BUTTONS
The function buttons 2, 4, 8, 9, 10, 11, 12, 13, 15 and 19 are described in chapter „13 Bed Positioning" on the page 77.
NOTE Pressing two function buttons at the same time will be recognized as an error by the controller. The controller will interrupt
immediately all bed movements and display shows alert.
LOCK
To lock Backrest Adjustment:
Press button 16.
►
Corresponding LED on Attendant Control Panel is lit.
Backrest Adjustment is disabled using any Control Element.
To lock Thighrest, Calfrest and Bed Extension Adjustment:
► Press button 17.
Corresponding LED on Attendant Control Panel is lit.
Thighrest, Calfrest and Bed Extension Adjustment are disabled using any Control Element.
To lock Bed Height, Lateral Tilt, Trendelenburg Tilt and Antitrendelenburg Tilt Adjustment:
► Press button 18.
Corresponding LED on Attendant Control Panel is lit.
Bed Height, Lateral Tilt, Trendelenburg Tilt and Antitrendelenburg Tilt Adjustment are disabled using any Control Element.
UNLOCK
To unlock Backrest Adjustment:
► Press button 16.
Corresponding LED on Attendant Control Panel is not lit.
Backrest Adjustment is enabled again.
To unlock Thighrest, Calfrest and Bed Extension Adjustment:
Press button 17.
►
Corresponding LED on Attendant Control Panel is not lit.
Thighrest, Calfrest and Bed Extension Adjustment are enabled again.
To unlock Bed Height, Lateral Tilt, Trendelenburg Tilt and Antitrendelenburg Tilt Adjustment:
► Press button 18.
Corresponding LED on Attendant Control Panel is not lit.
Bed Height, Lateral Tilt, Trendelenburg Tilt and Antitrendelenburg Tilt Adjustment are enabled again.
MAINS POWER LED
Status
lit LED
unlit LED
flashing LED
72
Meaning
connected to the mains
disconnected from the mains
system error
17
18 16
17
18 16
