12.5 Bed Height Foot Control (optional)
The foot control is optional and allows setting the bed height with one's feet.
The use of Bed Height Foot Control is described in the chapter „13 Bed Positioning" on the page 77.
Press the selected pedal twice in 3 seconds:
►
Bed Height Foot Control is activated for 30s after this procedure.
4

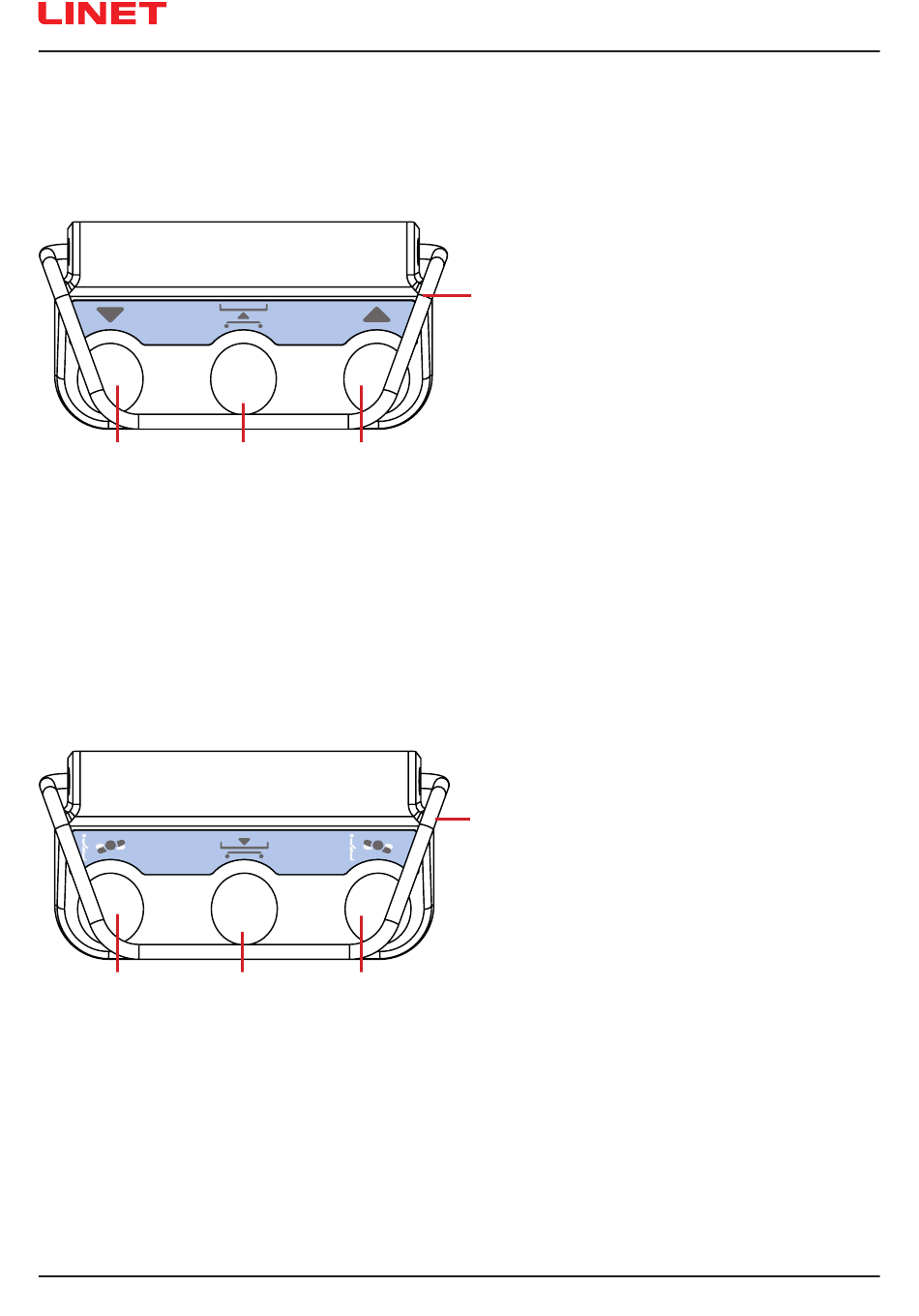

Fig. Bed Height Foot Control
12.6 Lateral Tilt Foot Control (standard)
The foot control allows setting the Lateral Tilt of the bed with one's feet.
The use of Lateral Tilt Foot Control is described in the chapter „13 Bed Positioning" on the page 77.
Press the selected pedal twice in 3 seconds:
►
Lateral Tilt Foot Control is activated for 30s after this procedure.
4
Fig. Lateral Tilt Foot Control
76
3
2
3
2
1
1.
Protection Frame against Unwanted
Activation
2.
Raise Mattress support platform Pedal
3.
Examination Position Pedal
4.
Lower Mattress support platform Pedal
1
1.
Protection Frame against Unwanted
Activation
2.
Tilt Right Pedal
3.
Low Flat Position Pedal
4.
Tilt Left Pedal
D9U001MCX-0101_03
