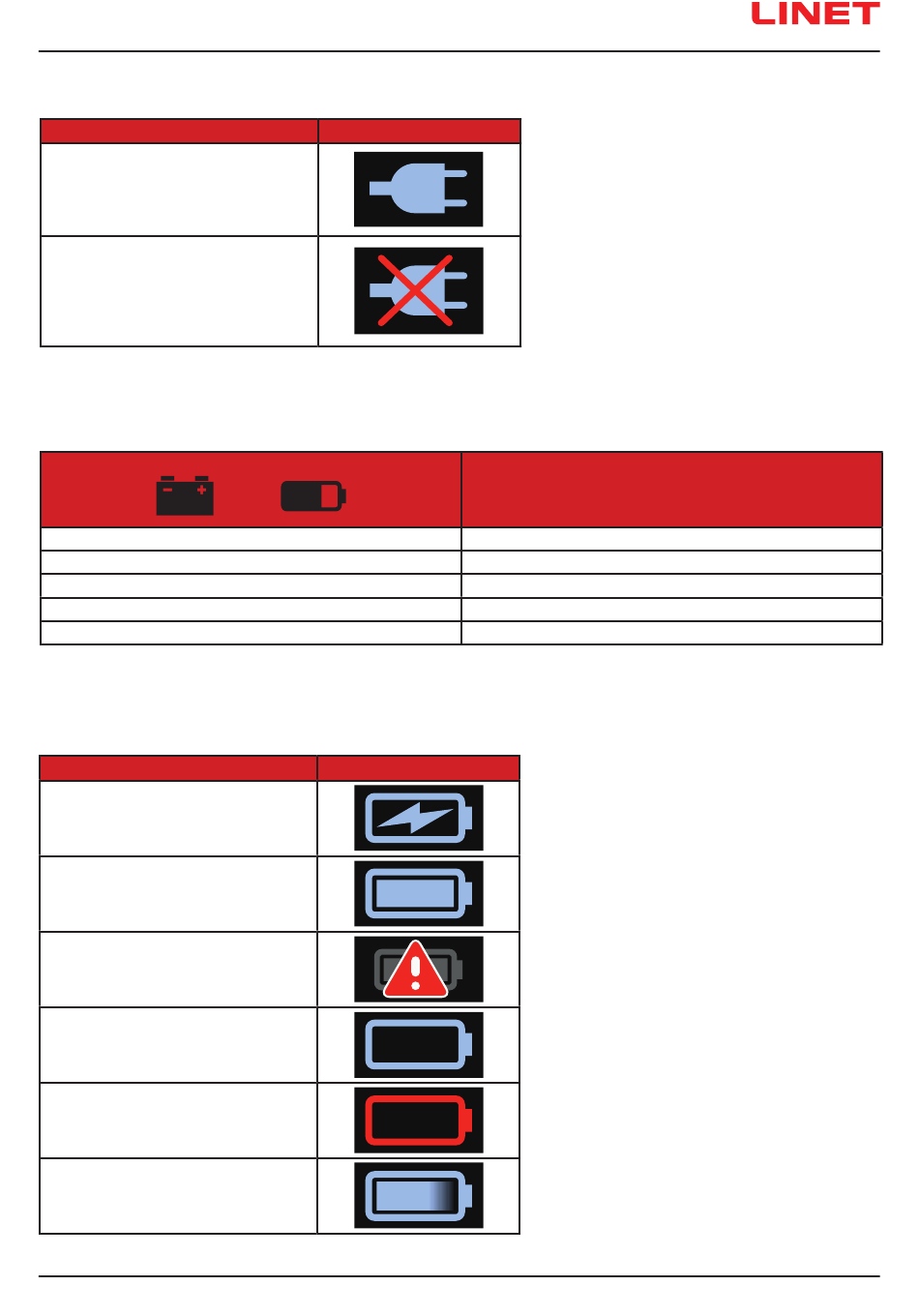

1.8.2 Connection to mains power Indicator (Multiboard X)

Connection to mains power
Bed is connected to the mains power
Bed is disconnected from the mains
power (flashing icon)

1.8.3 Accumulator indicator (Attendant Control Panel)

ACCUMULATOR INDICATOR
lit
flashing: 1,6s lit / 0,2s not lit
flashing: 0,1s lit / 0,1s not lit
flashing: 0,2s lit / 1,6s not lit
not lit

1.8.4 Accumulator Charge Status Indicator (Multiboard X)

Acummulator Charge Status
Charging
Charged Accumulator
(bed is connected to the mains)
Faulty Accumulator or Accumulator
Disconnected
Discharged Accumulator (blue outline,
bed is disconnected from the mains)
Critically Discharged Accumulator
(red outline, bed is disconnected from
the mains)
Bed is powered by the Accumulator
D9U001MCX-0101_03
Indication
accumulator disconnected or faulty
accumulator deeply discharged
accumulator discharged
accumulator is charging
accumulator charged
Indication
MEANING
