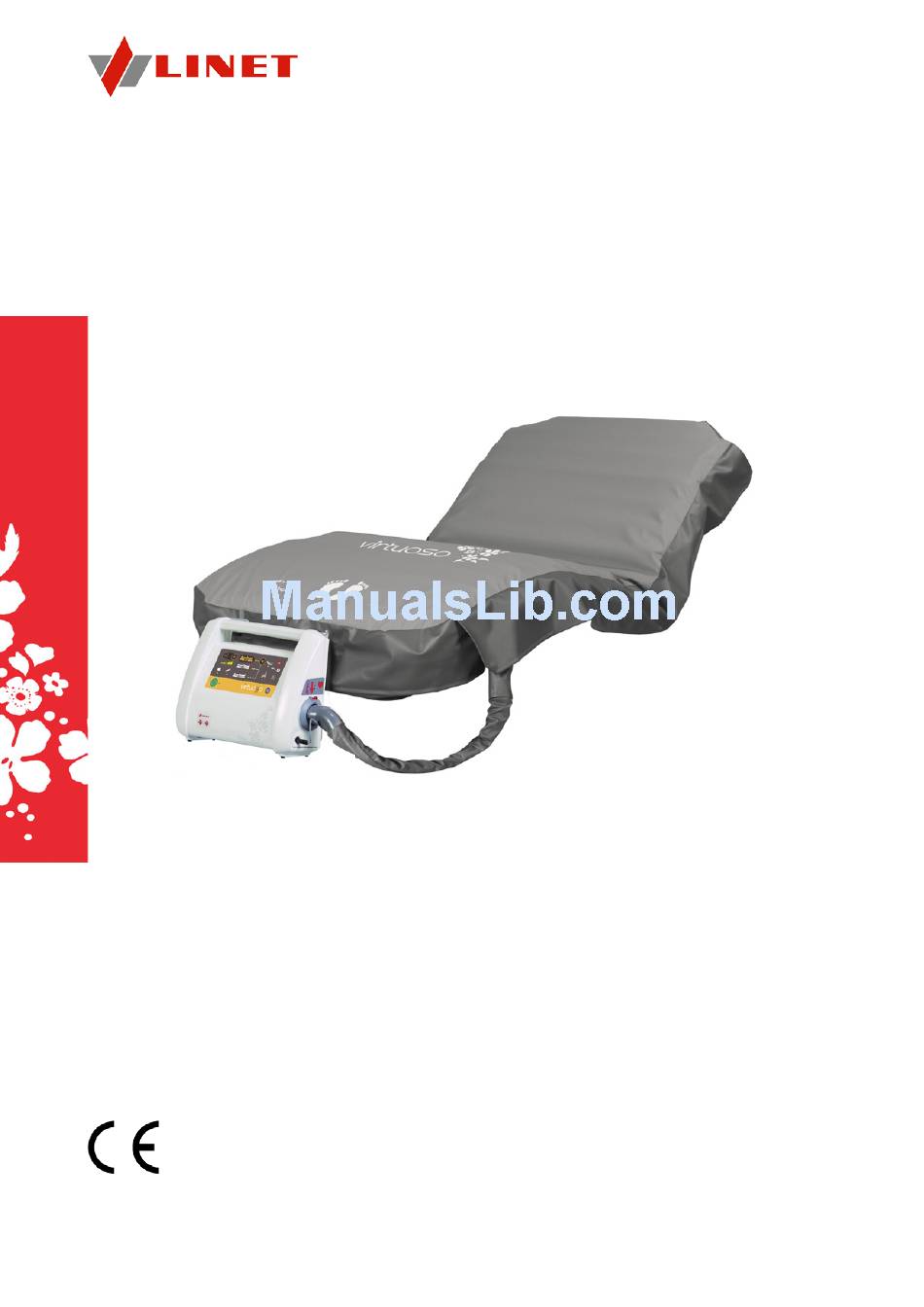

Page 1: User Manual
® User manual and technical description Virtuoso Mattress Replacement System - Series 2 9200-0443 Version: Print date: 02/2015... -
Page 2: Mattress Replacement System - Series
Manufacturer: Linet spol. s r. o. Želevčice 5, 274 01 Slaný Czech Republic Phone: +420 312 576 111 Fax: +420 312 522 668 E-Mail: info@linet.cz Web: www.linet.com Virtuoso Mattress Replacement System – Series 2 Author: LINET, s.r.o. Link: www.linet.com Version: 02 Print date: 02/2015 Copyright ©... -
Page 3: Table Of Contents
10.4 Pressure Control ..........16 10.5 APT Mode (Default Mode) ......18 10.6 MAX Mode ............18 10.7 Constant Low Pressure Mode......18 10.8 Backrest Raised Mode ........19 10.9 Battery.............19 10.10 CPR/Air Disconnected Mode ......22 10.11 System error..........22 10.12 Service ............22 Product: Virtuoso 3/37 Version:... -
Page 4: Symbols
Type and source of danger! Ü Measures to avoid the danger! Other symbols 1.2.1 Instructions Structure of instructions: Perform this step. ™ Result, if necessary. 1.2.2 Lists Structure of bulleted lists: List level 1 „ List level 2 „ 4/37 Product: Virtuoso Version:... -
Page 5: Symbols And Labels On The Product
The serial label is located on the back of the SCU (System Control Unit). The serial number, the model number and the voltage version can be found on the type plate. This information is required when contacting LINET®. Fig. 1... -
Page 6: Safety And Dangers
Improper handling of mains cable can cause an electric shock hazard, other serious injuries or damage to ™ the mattress replacement system. Use and Storage Conditions Virtuoso is suitable for use or storage in indoor environments meeting the following requirements: Ambient temperature 0 °C (32 °F) to + 40 °C (104 °F) Relative humidity... -
Page 7: Function
Ü Use ALP mode exclusively under the direction of a qualified physician. Ü Before placing a patient on a Virtuoso mattress, always have a qualified person perform a risk assessment to ensure that the support provided is appropriate and fulfils the applicable local stipulations. -

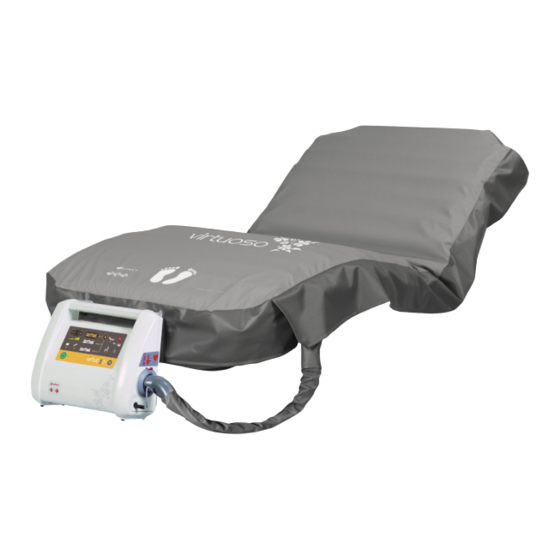

Page 8: Product Description
The microprocessor-controlled SCU maintains the set pres- sure regardless of the patient’s position by continuously monitoring and adjusting the air pressure in the mattress. The SCU is equipped with an audio/visual alarm system for detecting power failures, air pipe disconnections or other faults. 8/37 Product: Virtuoso Version:... -
Page 9: Scope Of Delivery
Notify the carrier and supplier of any deficiencies or damages immediately as well as in writing or make a note on „ the delivery note. List of Parts Mattress with Dartex cover - Applied part type B „ SCU (System Control Unit) - Applied part type B „ Mains cable „ User Manual „ Product: Virtuoso 9/37 Version:... -
Page 10: Installation
Which positions and settings are safe and appropriate may vary with the type of bed frame and siderails. Ü Before placing a patient on a Virtuoso mattress, always have a qualified person perform a risk assessment to ensure that the support provided is appropriate and fulfils the applicable local stipulations. -
Page 11: Installation Of Scu (System Control Unit)
Insert air connector 1 in the socket 2 at an angle of approximately 45°. ™ Push air connector 1 down until it clicks into place. ™ Fig. 5 Open Mode Fig. 6 Air Connector Air connector plug Air connector Product: Virtuoso 11/37 Version:... -
Page 12: Cable Management System
Ü Ensure that it is not possible for the cable to get trapped between any moving parts of the bed frame. Virtuoso is equipped with two cable routing clips on the side of the mattress cover. The cable routing clips pre- vent the cable from getting twisted, crushed or strained or becoming a tripping hazard. -
Page 13: Initial Operation
When the set pressure level is reached, indicators 2 and 16 will remain solid on. „ When the inflation process is finished: Check if safety straps of mattress cover are too tight and correct if necessary. ™ If indicator 8 flashes during inflation process and audio alarm signal sounds: Check if air pipe is connected correctly. ™ Product: Virtuoso 13/37 Version:... -
Page 14: Use
Material damage due to dampness or contamination! Ü Ensure that no moisture gets into the mattress. Ü Ensure that no food or drink gets into the mattress. Ü If moisture, food or drink get into the mattress, notify LINET® Service. 9.1.1 Preparation Inflate mattress (see „Initial Operation“). -
Page 15: Controls And Indicators
10. Audio Mute Button 11. BAT (indicates battery back-up model) 12. Service Due Indicator 13. Power Indicator (battery back-up model only) 14. GO Button 15. Battery Charge Status Indicator (battery back-up model only) 16. Pressure Level Indicator. Product: Virtuoso 15/37 Version:... -
Page 16: Button Go
16 will stop flashing and remain solid on, and an audio signal will sound. In order to guarantee optimum protection, the system adjusts the pressure automatically to the patient’s weight and posi- tion every 7.5 minutes in APT mode. 16/37 Product: Virtuoso Version:... - Page 17 „ for big or heavy patients „ for patients sitting up in the bed „ for patient positions or body shapes that concentrate the patient’s weight on small areas of the mattress „ Product: Virtuoso 17/37 Version:...
-
Page 18: Apt Mode (Default Mode)
Press button 5 once or repeatedly until indicator 2 flashes yellow. „ When CLP mode is switched on: Indicator 2 flashes yellow until pre-set pressure is reached. „ Once the pre-set pressure is reached, indicator 2 and 16 will remain solid on. „ 18/37 Product: Virtuoso Version:... -
Page 19: Backrest Raised Mode
After this period the supposed service life of battery ends and the manufacturer cannot guarantee the battery service life after this period. The battery must be replaced with the new battery approved by manufacturer after maximum 5 (five) years ™ of use at the latest. Product: Virtuoso 19/37 Version:... - Page 20 Audio alarm signals will indicate any status change. After sounding 5 times, the audio alarm signals will stop. To mute the audio alarm signal: Mute audio alarm signal (see „Mute“). ™ 20/37 Product: Virtuoso Version:...
- Page 21 Switch off SCU. ™ Pull down the battery pack’s release tab 3. ™ Pull out battery pack while holding down release tab. ™ NOTE There is no need to remove the battery pack except when replacing it. Product: Virtuoso 21/37 Version:...
-
Page 22: 10.10 Cpr/Air Disconnected Mode
10.11 System error WARNING! Risk of injury due to incorrect positioning of patient! Ü If a system error occurs, do not continue to use mattress replacement system and notify LINET® Service imme- diately. If a system error occurs: Indicator 9 flashes red. -
Page 23: Additional Functions
To allow resuscitation in Transport mode: Rotate end of air connector and main body in opposite directions until the ™ red symbols ▲ and o are aligned and air starts to escape. Mattress deflates. Fig. 14 CPR (SCU connected) Product: Virtuoso 23/37 Version:... -
Page 24: Transport Mode
In case of a power failure, the mattress will remain inflated for at least 24 hours. However, alternating pressure therapy is not possible. If no power supply will be available for more than 24 hours: Switch to Transport mode (see Transport Mode). ™ 24/37 Product: Virtuoso Version:... -
Page 25: Head Zone Selector/Heel Zone Selector
Fig. 16 Head Zone Deflated To configure the head section: Remove foot board of bed frame. ™ Open flap on foot end of mattress cover. ™ Select required setting with respective rotary control. ™ Close flap on foot end of mattress cover. ™ Product: Virtuoso 25/37 Version:... -
Page 26: Seating System
For patients who are not bed-ridden, it is possible to connect a seat cushion operating in a 2-cell cycle to the SCU instead of the mattress. The LINET® dynamic seat cushion fits on most standard chairs and chairs for specialist geriatric care. -
Page 27: Initial Operation
Inflate seat cushion (see Initial Operation). ™ 12.4.2 Seating of Patient Sit patient on seat cushion. ™ For an ideal sitting position Ensure that chair is suitable for patient’s size in order to guarantee correct seating position. ™ Product: Virtuoso 27/37 Version:... -
Page 28: Cleaning/Disinfection
Clean electrical components carefully and allow them to dry fully. ™ Neither immerse SCU in water nor heat or steam-clean it. ™ Observe local directives concerning infection control. ™ LINET® recommends the following cleaning agents: Cleaning agents Manufacturer Presept Johnson&Johnson Terralin, Mikrozid, Thermosept Schülke&Mayr... - Page 29 Carefully open zipper under side skirt of mattress cover on foot end of mattress. ™ Remove top part of mattress cover. ™ Open clips in bottom part of mattress cover to remove mattress cells. ™ Remove umbilical cover. ™ Remove bottom part of mattress cover. ™ Product: Virtuoso 29/37 Version:...
-
Page 30: Maintenance
™ Ensure that maintenance and installation are performed only by qualified personnel trained by the manu- ™ facturer. NOTE LINET® provides service documentation for qualified personnel. Storage When SCU is not in use: Switch off SCU using green illuminated power switch on side of SCU. ™... -
Page 31: Disposal
Observe local and country-specific specifications for disposal. ™ Warranty LINET® will only be held responsible for the safety and reliability of products that are regularly serviced and used in accordance with the safety guidelines. Should a serious defect arise that cannot be repaired during maintenance: Do not continue to use the product. -
Page 32: Ec Declaration Of Conformity
EC Declaration of Conformity 32/37 Product: Virtuoso Version:... -
Page 33: Technical Specifications
2x T2(T) anti-surge fuse (250 V, type 5x20 mm) „ Model 127 V 2x 1A anti-surge fuse „ Electrical safety class Class 2 with applied part type B Electrical safety In conformity with EN 60601-1 Battery operation At least 6 h in APT mode Product: Virtuoso 33/37 Version:... -
Page 34: Electromagnetic Compatibility
™ NOTE Continuing alternating inflation without excessive inflation or permanent deflation of the mattress is considered the essential performance of Virtuoso. Virtuoso is intended for the application in electromagnetic environment as specified below. The customer or user of the bed is responsible for the fact that these requirements are met. 19.3.1 Electromagnetic Radiation... - Page 35 Ensure that the magnetic frequency (50/60 Hz) fields of the network fre- IEC 61000-4-8 quency conform to the nor- mal levels of commercial or hospital environments. NOTE refers to the AC mains voltage before the test level is applied. Product: Virtuoso 35/37 Version:...
-
Page 36: Log
Serial Number: Delivery Date: Delivered By: I hereby confirm that the personnel has been familiarised with the correct operation of the mattress replacement system. Date: __________________________________________ Customer’s Signature and Seal: __________________________________________ Supplier’s Signature and Seal: __________________________________________ 36/37 Product: Virtuoso Version:... -
Page 37: Service And Maintenance Log
20.2 Service and Maintenance Log Description of Service Date Performed By Product: Virtuoso 37/37 Version:...
