19.11.1 Vertical Oxygen Bottle Holders

WARNING!

Adaptor 11029700A0000 must be fixed on the head end Accessory Adaptor by the original screw before use!

Maximum Load of the properly installed Adaptor 11029700A0000 is 25 kg.

Maximum diameter of an oxygen bottle in the Vertical Oxygen Bottle Holders 4MAR2010PC004 and 4MAR2010PC007-1 is 14 cm.

Maximum diameter of an oxygen bottle in the Vertical Oxygen Bottle Holder 4MAR2015PC001 is 11 cm.

To place Vertical Oxygen Bottle Holders on the bed:

►

Put Vertical Oxygen Bottle Holder on the sleeve fittings in the accessory adapter on head end. Vertical Oxygen Bottle

Holder 4MAR2010PC007-1 can be placed to the sleeve fittings of the Adaptor for Oxygen Bottle Holder 11029700A0000.

►

Ensure the locking pin (or pins) of Vertical Oxygen Bottle Holder is (are) locked in the sleeve fitting of the compatible adap-

tor.

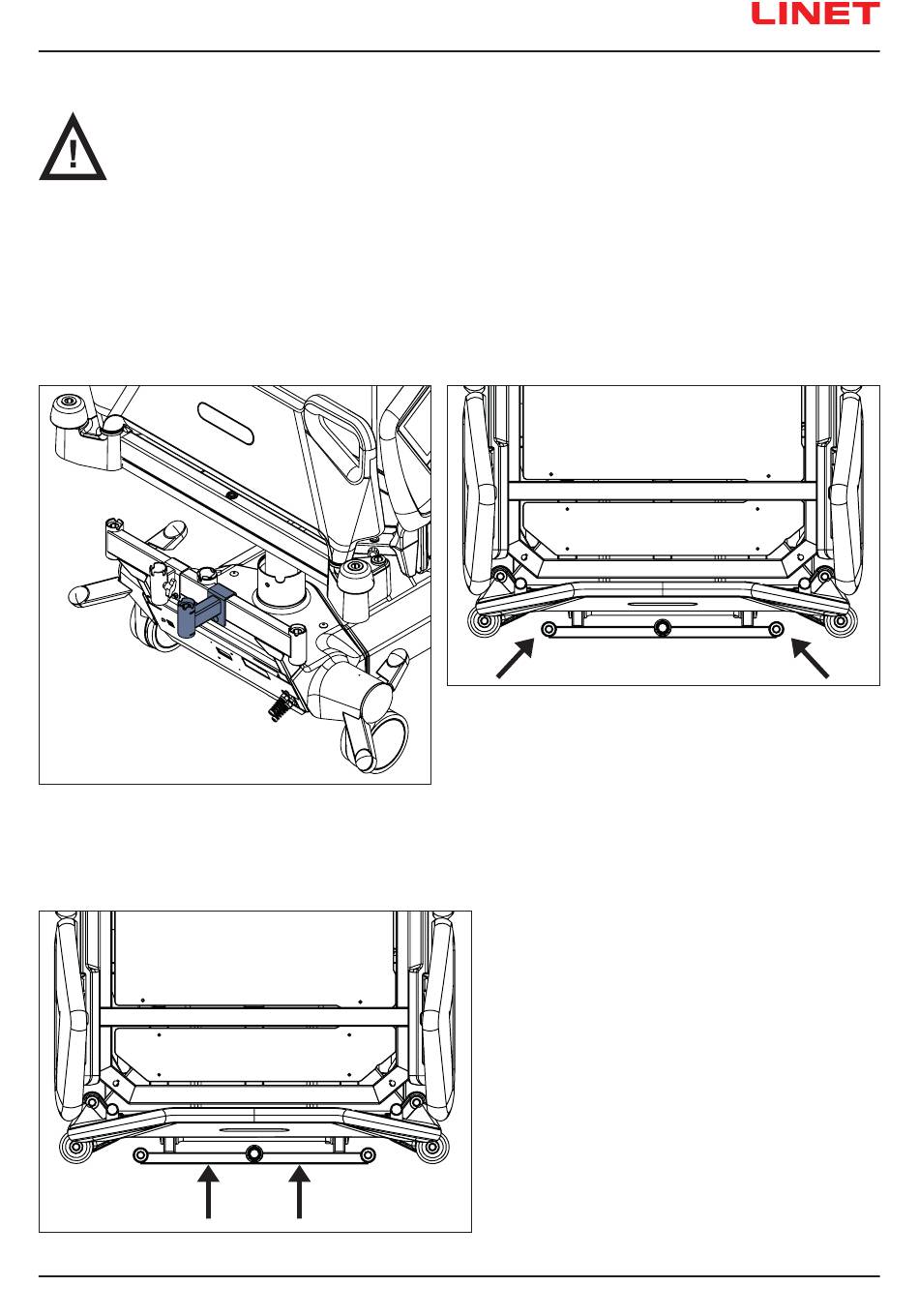

Fig. Adaptor 11029700A0000 for Vertical Oxygen Bottle Holder

4MAR2010PC007-1

Fig. Places for Horizontal Oxygen Bottle Holder

D9U001MCX-0101_03

Fig. Places for Vertical Oxygen Bottle Holders (sleeve fittings on

accessory adaptor)

►

Put Horizontal Oxygen Bottle Holder on

crossbar on the head end of the bed.

►

Secure the oxygen bottle against falling or invo-

luntary movement with rubber strap.
