4.13

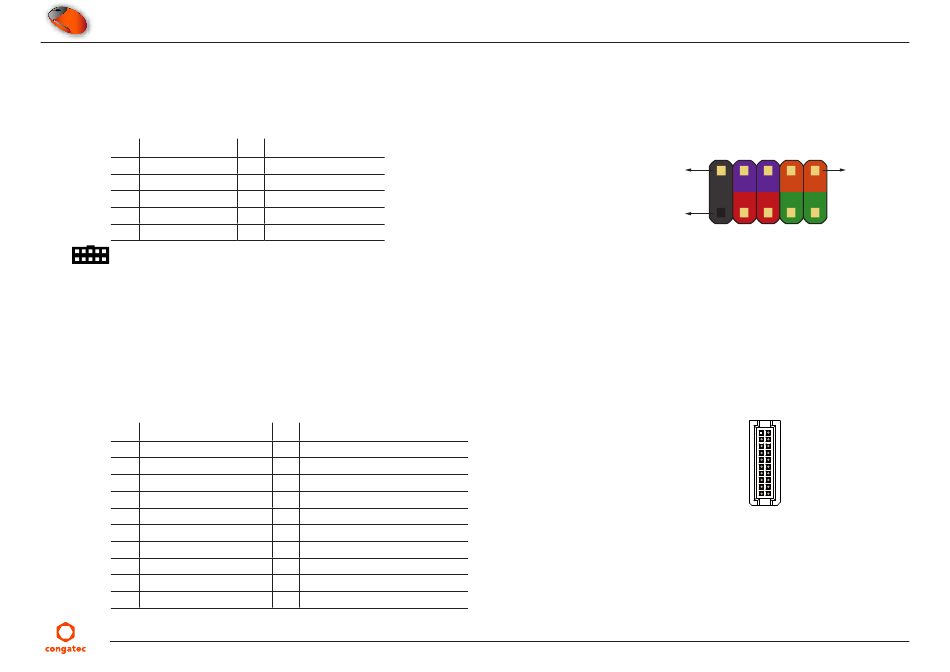

Front Panel Header

The conga-HPC/EVAL-Server provides power button and reset button for front panels on pin header X46.
Table 43 X46 - Front Panel Pinout Description
Pin Signal
1 N.C
3 N.C
5 GND
7 RSTBTN#
9 N.C
Connector Type
X46: 2.54 mm, 2x5-pin female connector
4.14

Intel ISP Adaptor-C2 Connector

The conga-HPC/EVAL-Server provides connector X41 for attaching Intel ISP Adaptor-C2. Use jumper JP6 to select the reset trigger signal
(RESET_TRIGGER#) for X41.
Table 44 X41 - Intel ISP Adaptor-C2 Pinout
Pin Signal
1 Key
3 RESET_TRIGGER#
5 GND
7 BOOT_SPI_CLK
9 BOOT_SPI_IO3
11 NC
13 NC
15 NC
17 NC
19 PLTRST#
Copyright © 2022 congatec AG
Pin Signal
2 5 V supply
4 GND
6 PWRBTN#
8 GND
10 No pin
Pin Signal
2 BOOT_SPI_CS#
4 NC
6 VCC_BOOT_SPI
8 BOOT_SPI_IO2
10 BOOT_SPI_IO1
12 BOOT_SPI_IO0
14 NC
16 NC
18 NC
20 NC
Pin 9
No Pin
HEVAm100
X46
Pin 1
X41
1 2
