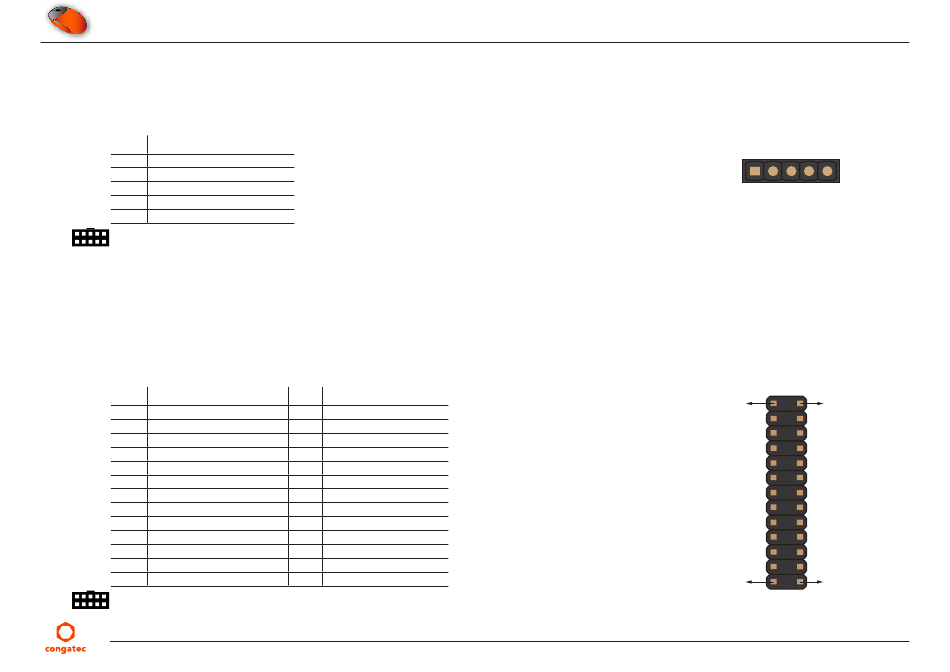

4.11

SMBus Header

The conga-HPC/EVAL-Server provides SMBus signals on header X49.
Table 41 X49 - SMBus Pinout Description
Pin Signal
1 +V3.3 standby (0.75 A fuse)
2 SMB_DAT
3 SMB_CLK
4 SMB_ALERT#
5 GND
Connector Type
X49: 2.54 mm, 5-pin female connector
4.12

GPIO Header

The conga-HPC/EVAL-Server provides 12 GPIOs on header X45.
Table 42 X45 - GPIO Pinout Description
Pin Signal
1 +V3.3 standby (0.75 A fuse)
3 GPIO_00
5 GPIO_01
7 GPIO_02
9 GPIO_03
11 GPIO_04
13 GPIO_05
15 GPIO_06
17 GPIO_07
19 GPIO_08
21 GPIO_09
23 GPIO_10
25 GPIO_11
Connector Type
X45: 2.54 mm, 2x13-pin female connector
Copyright © 2022 congatec AG
Pin Signal
2 +V3.3 main (0.75 A fuse)
4 GND
6 GND
8 GND
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 GND
HEVAm100
X49
1 2 3 4 5
X45
Pin 1 Pin 2
Pin 25 Pin 26
