Table 7 Jp9 - Atx 5V Standby Connection; Table 8 X50 - Atx Power Pinout - Congatec conga-HPC/EVAL-Server User Manual

To disconnect the 5 V standby voltage from the whole system, use jumper JP9.

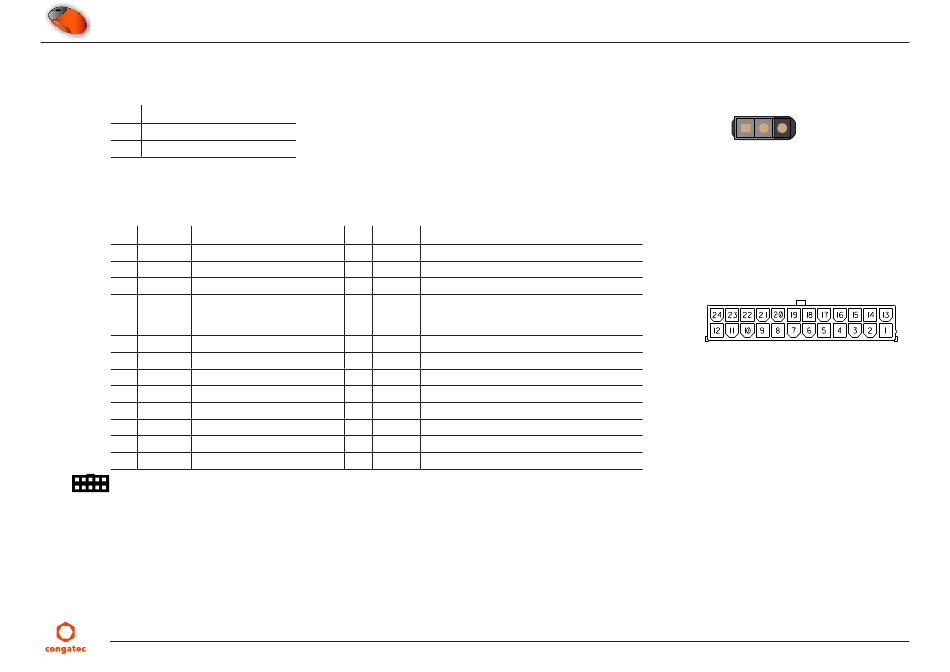

Table 7 JP9 - ATX 5V Standby Connection
Pin Description
1-2 5V standby connected (default)
2-3 5V standby disconnected
Table 8 X50 - ATX Power Pinout
Pin Signal Description
1 +3.3V Power supply +3.3 VDC
2 +3.3V Power supply +3.3 VDC
3 GND Power ground
4 +5V Power supply +5 VDC
5 GND Power ground
6 +5V Power supply +5 VDC
7 GND Power ground
8 PWR_OK Power Ok
9 5V_SB Standby power supply +5 VDC
10 +12V Power supply +12 VDC
11 +12V Power supply +12 VDC
12 +3.3V Power supply +3.3 VDC
Connector Type
X50: Standard 24-pin ATX connector
JP9: 2.54 mm, 2-pin jumper
Copyright © 2022 congatec AG
Pin Signal Description
13 +3.3V Power supply +3.3 VDC
14 -12V Power supply -12 VDC
15 GND Power ground
16 PS_ON# Power Supply On (active low). Short this pin to
GND to switch power supply ON; disconnect
from GND to switch OFF.
17 GND Power ground
18 GND Power ground
19 GND Power ground
20 N.C
21 +5V Power supply +5 VDC
22 +5V Power supply +5 VDC
23 +5V Power supply +5 VDC
24 GND Power ground
HEVAm100
JP9
1 2 3
X50
22/54
