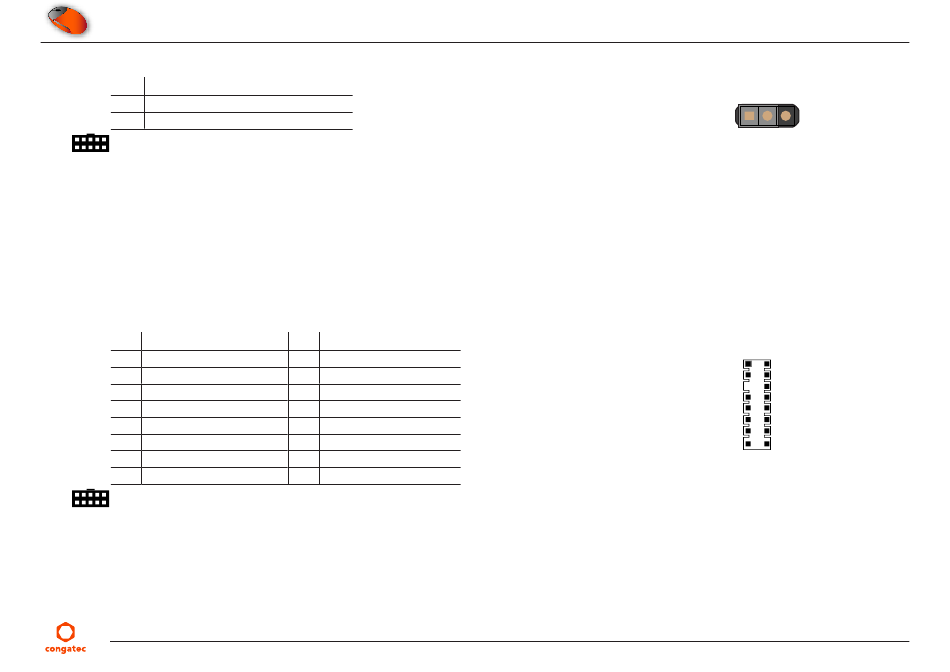

Table 45 JP6 - X41 Reset Trigger Signal
Pin Description
1-2 RSTBTN# triggers reset (default)
2-3 VIN_PWROK triggers reset
Connector Type
X41: 1.27 mm, 2x10-pin female connector
Possible mating connector: Samtec ASP-159358-02, TFM-110-02-S-D-A
JP6: 2.54 mm grid jumper
4.15

General Purpose SPI Header

The conga-HPC/EVAL-Server provides header CN2 for general purpose SPI.
Table 46 CN2 - General Purpose SPI Port Pinout
Pin Signals
1 GND
3 GP_SPI_CLK
5 KEY
7 PLTRST#
9 +V3.3S
11 PLTRST#
13 +V3.3A
15 GP_SPI_CS2#
Connector Type
CN2: 2.54 mm, 2x8-pin female connector
Copyright © 2022 congatec AG
Pin Signals
2 GP_SPI_CS0#
4 NC
6 NC
8 GP_SPI_MISO
10 GP_SPI_MOSI
12 GP_SPI_CS1#
14 GP_SPI_ALERT#
16 GP_SPI_CS3#
HEVAm100
JP6
1 2 3
CN2
1 2
3
4
Key 6
8
7
9 10
11 12
13 14
15 16
