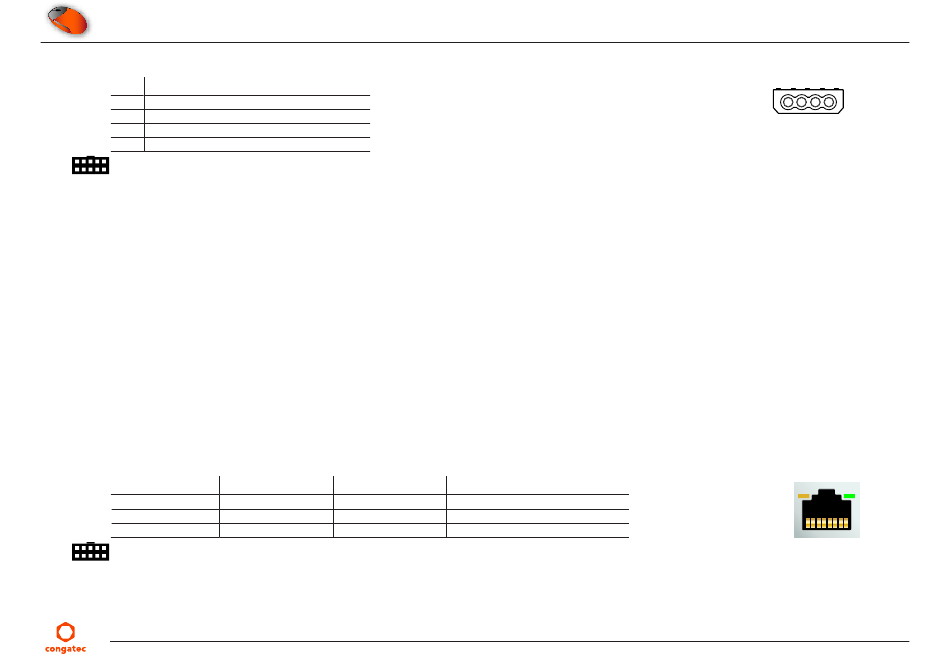

Table 28 X23 - Disk Drive Power Pinout
Pin Description
1 12 V (1.5 A resettable fuse; shared with X22)
2 GND
3 GND
4 5 V (2 A resettable fuse; shared with X22)
Connector Type
X23: Standard 4-pin disk drive power plug
4.7

Ethernet Connectors

The conga-HPC/EVAL-Server provides the following Ethernet connectors:
• two RJ45 Ethernet connector
– a 1 Gb BMC management interface (X77)
– up to 10 Gb standard NBASE-T network interface from COM-HPC
• Mezannine card connector for congatec Ethernet adapters (LEK1, LEK2 and LEK3)
4.7.1

RJ45-BMC Management Interface

The conga-HPC/EVAL-Server provides a 1 Gb BMC management interface on standard RJ45 connector (X77). The BMC management interface
does not support network connectivity.
Table 29 X77 Status LED Description
LED Left Side
Off
Green
Orange
Connector Type
X77: 8-pin RJ45 plug
Copyright © 2022 congatec AG
Description LED Right Side
10 Mbps link speed Off
100 Mbps link speed Steady On
1000 Mbps link speed Blinking
module (X25)
®
Description
No link
Link established, no activity detected
Link established, activity detected
HEVAm100
X23
X77
8 7 6 5 4 3 2 1
