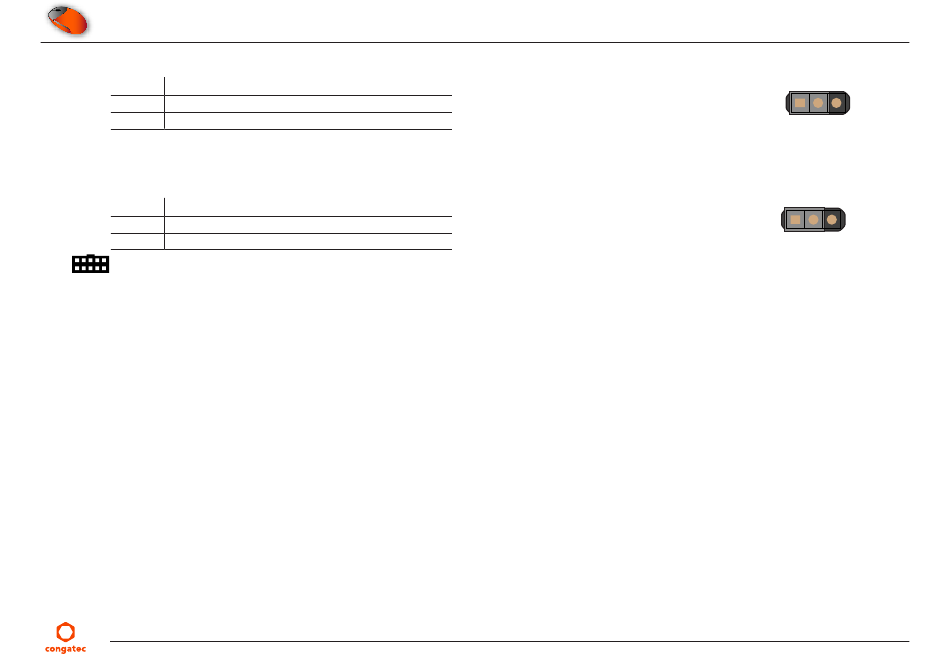

Table 22
JP2 - UART0 Power Rail Configuration
Pin
Signal
1-2
UART0 is powered by 3.3 V in S0 mode (default)
2-3
UART0 is powered by 3.3 V in standby mode
Table 23
JP16 - UART1 Power Rail Configuration
Pin
Signal
1-2
UART1 is powered by 3.3 V in S0 mode (default)
2-3
UART1 is powered by 3.3 V in standby mode
Connector Type
X65, X66: D-SUB9 plug
JP2, JP16: 2.54 mm, 2-pin jumper
Copyright © 2022 congatec AG
HEVAm100
JP2
1
2
3
JP16
1
2
3
34/54
