4.4 Applying the Grease

4.4.1 Applying the Grease

Some parts require application of grease when replaced. Apply the grease(special tool) listed below.
Smear the grease lightly and evenly with a flat brush or the like.
For the printer disassembly/reassembly method, refer to "DISASSEMBLY/REASSEMBLY" and "parts catalog".
Do not apply the grease to locations in which not designated grease may cause poor print quality. Take particular care that grease do not get onto the wiper, cap,
carriage shaft and the linear scale.
No.
1 The joint base rail and rib of carriage unit
2 Two feed roller backup
Bushing
3 Feed roller bearing
4 Pinch roller release cam three points x 10 parts
5 Upper cover stay shaft hole
The gear shaft of the upper cover stay gear
Upper cover stay shaft end
The gear tooth face of upper cover stay

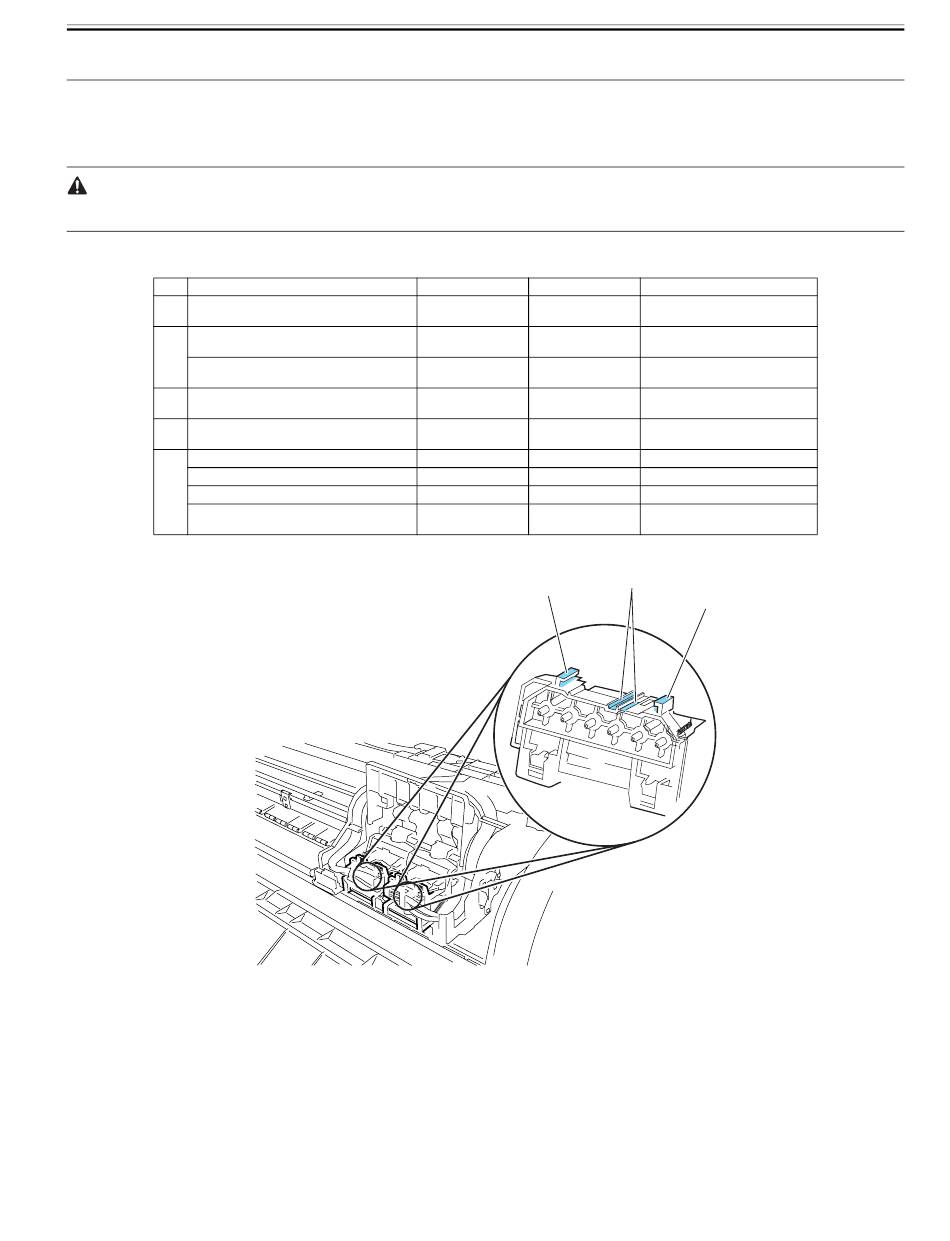

1. The joint base rail [1] and the rib [2] of the carriage unit.
Location Grease
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
FLOIL G-5000H
Quantity
Smear the grease
lightly.
Approx. 12mg Don't apply to central backup with
bearing.
Smear the grease
lightly.
Approx. 24mg Apply if remove bearing from a feed
roller.
Smear the grease
lightly.
Approx. 24mg
Approx. 24mg
Approx. 24mg
Smear the grease
lightly.
[2]
[1]
F-4-51
