Chapter 2

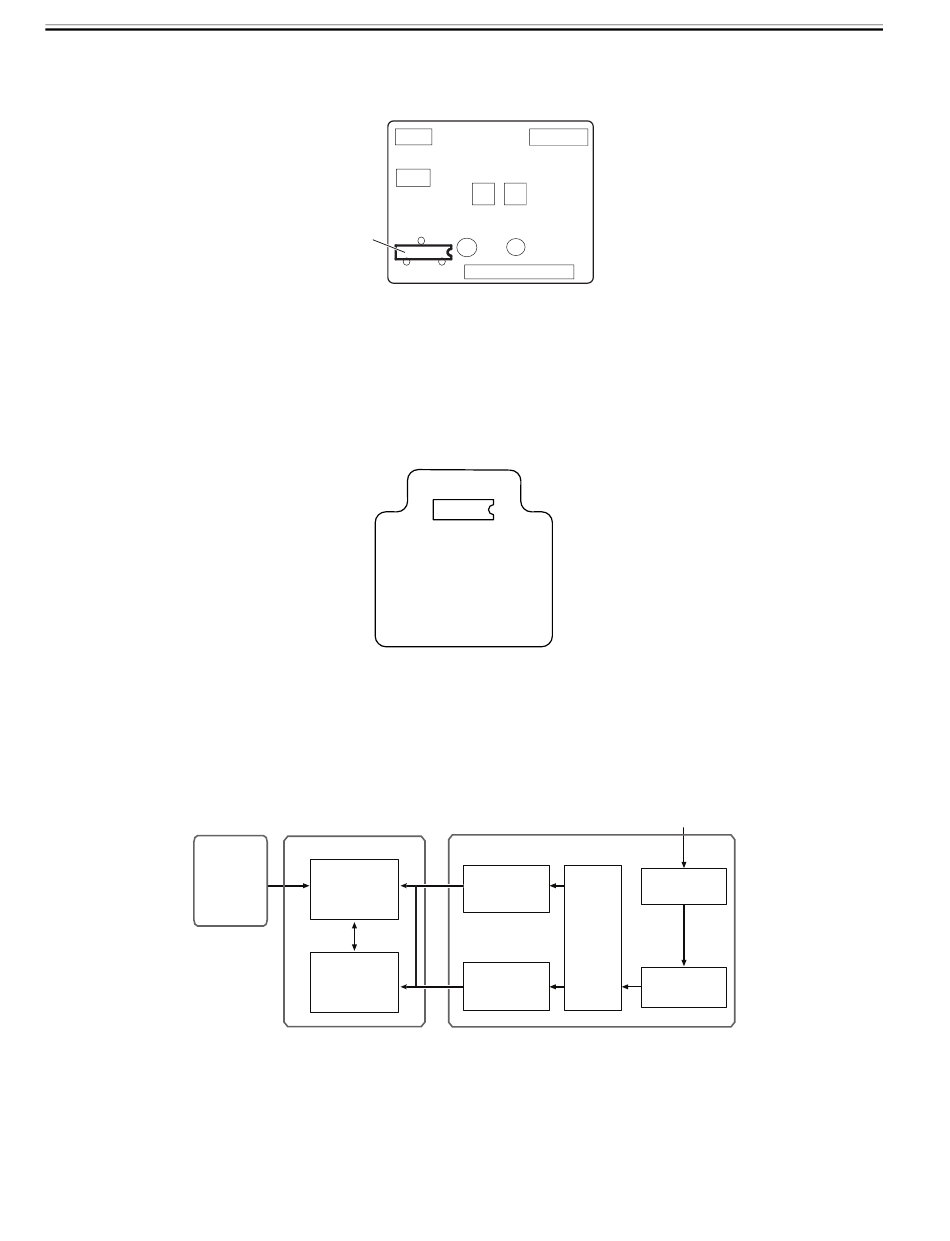

2.4.5 Motor Driver

2.4.5.1 Media take-up PCB components

a) Driver IC (IC104)
Media take-up motor drive function
This function controls the Media take-up motor based on the control signals from the main controller.
Sensor relay function
This function relays the input signals from the Media take-up paper detection sensor and Media take-up on/off sensor to the main controller PCB.

2.4.6 Maintenance Cartridge Relay PCB

2.4.6.1 Maintenance cartridge relay PCB components

a) EEPROM (IC1)
The 2-KB EEPROM stores all information written in the EEPROM on the main controller PCB.

2.4.7 Power Supply

2.4.7.1 Power supply block diagram

Operation panel
POWER ON
The power supply converts AC voltages ranging from 100V to 240V from the AC inlet to DC voltages for driving the ICs, motor, and others.
The voltage generator circuits include the +32V generation circuit for driving motors, fans, and the +5.1V generator circuit for driving sensors, logic circuits.
When in the power saving mode, the power supply cut out the +32V and the +5.1V.
Power ON/OFF operation is controlled by the main controller PCB. When the upper cover is open, the power supply cut out only the +32V power to the carriage.
2-32
IC104
F-2-28
IC 1
F-2-29
Main controller PCB

Power supply

DC power supply
control circuit
generation circuit
+5V/+3.3V
generation circuit
generation circuit
F-2-30
AC inlet
100V to 240V
+32V
Noize filter circuit
Transformer
+5.1V
Rectifying circuit
