Chapter 2

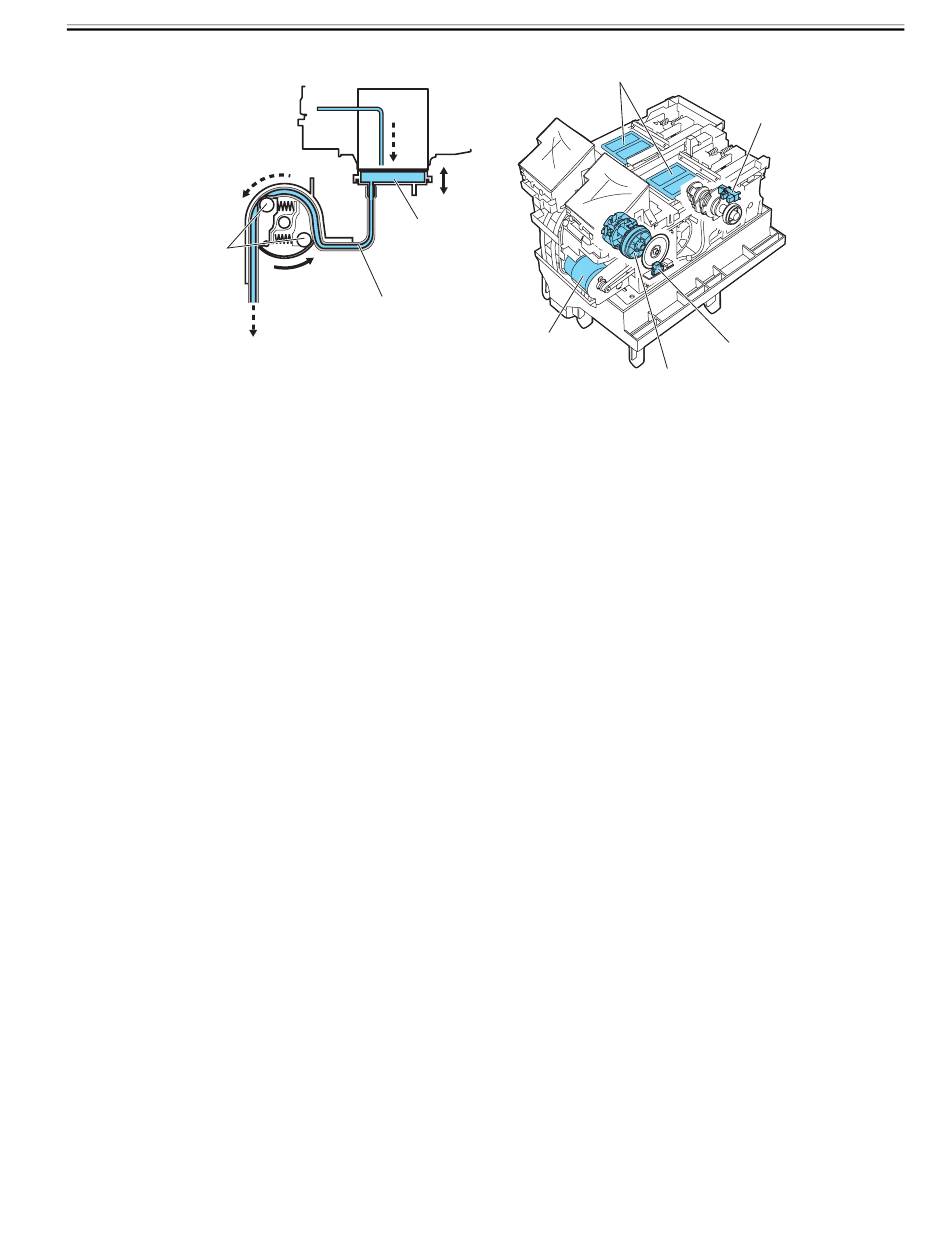

The timing at which the rotating rollers rotate is detected by the pump cam sensor, with the distance of rotation being controlled by the driving of the purge motor.
Cap
Pump cam sensor
Suction pump
Cap
Rotating rollers
Ink tubes
Purge motor
Pump encoder sensor
Suction pump
F-2-17
2-21
