Chapter 4
j) Left/Right ink tank units
Opening the left/right ink tank units
1) To open the left/right ink tank units, remove left/right circle covers (L), left/right circle covers (S), left/right side covers, upper left/right covers and left/right ink
tank cover units.
2) Remove two screws [1].
3) Remove screw [2] from the support plate at inner side of the printer.
4) Remove screw [4] from the support plate [3] at outer side of the printer, loosen screw [5] and slide the support plate to open the ink tank unit.

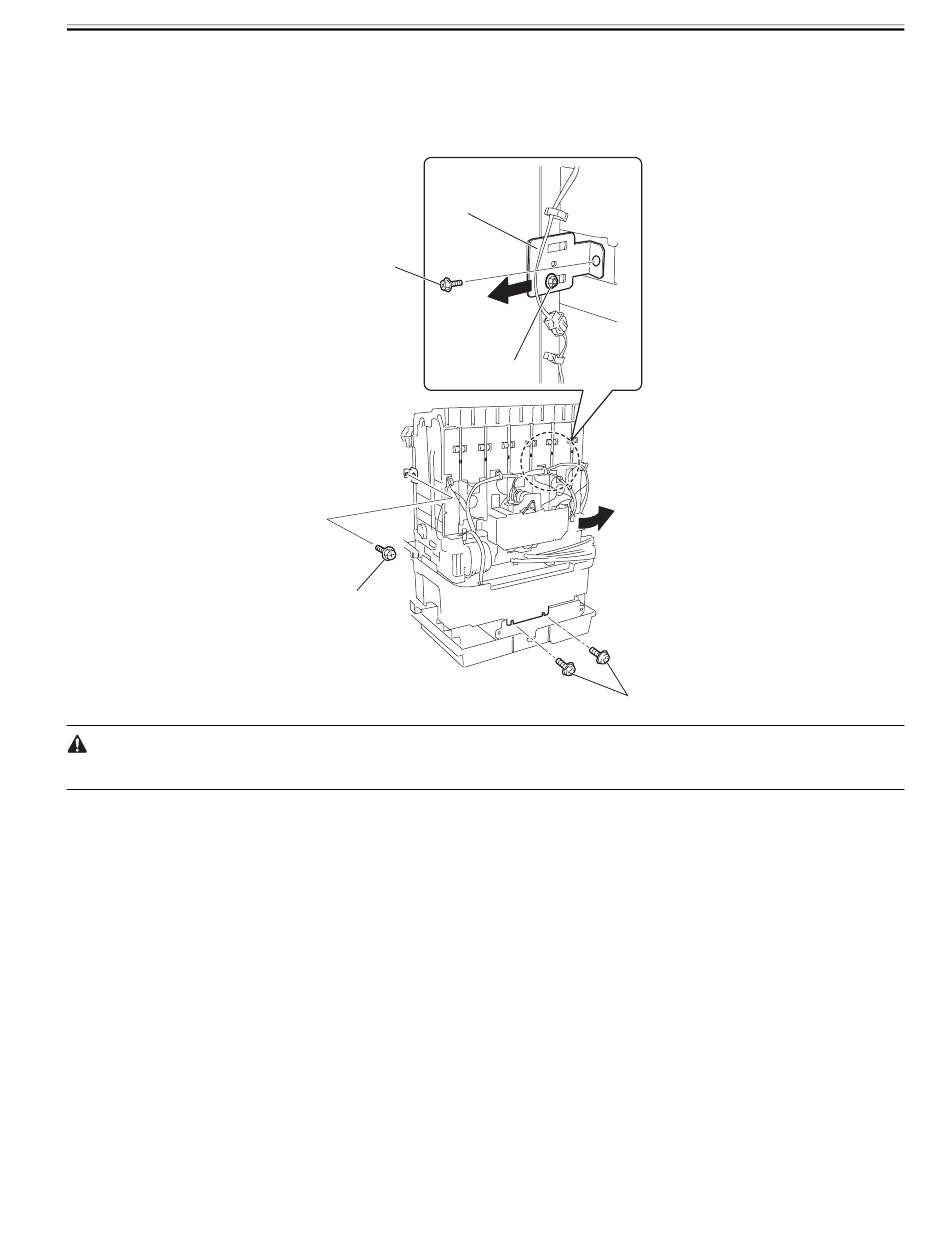

(The following figure is the case of the left ink tank unit.)
[3]
[4]
[5]
[2]
[1]
F-4-19
The ink tank units will lock themselves when they are opened to the maximum allowable angle.
Be sure to open the ink tank unit to their maximum allowable angle to prevent them from turning over.
4-11
