Canon imagePROGRAF IPF8400 Service Manual page 156

Chapter 4
c) Removing the valve motor unit
1) To remove the valve motor unit, remove the ink tank cover unit.
2) Remove three screws [1], two connectors [2] and bearing [3], and then remove valve motor unit [4].
[2]
[4]
[1]
[3]

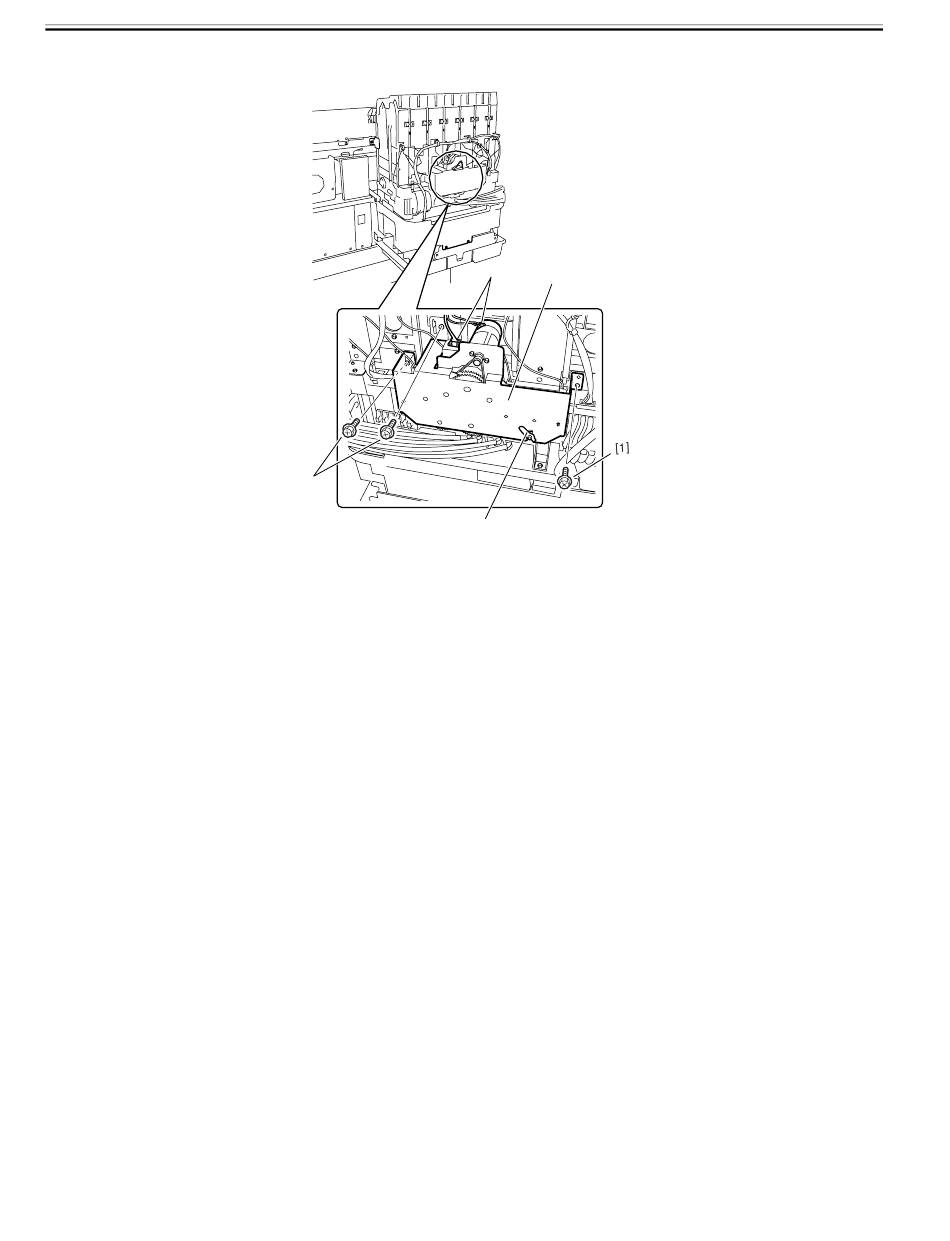

F-4-44
4-26
