Chapter 4

4.3.4 External Covers

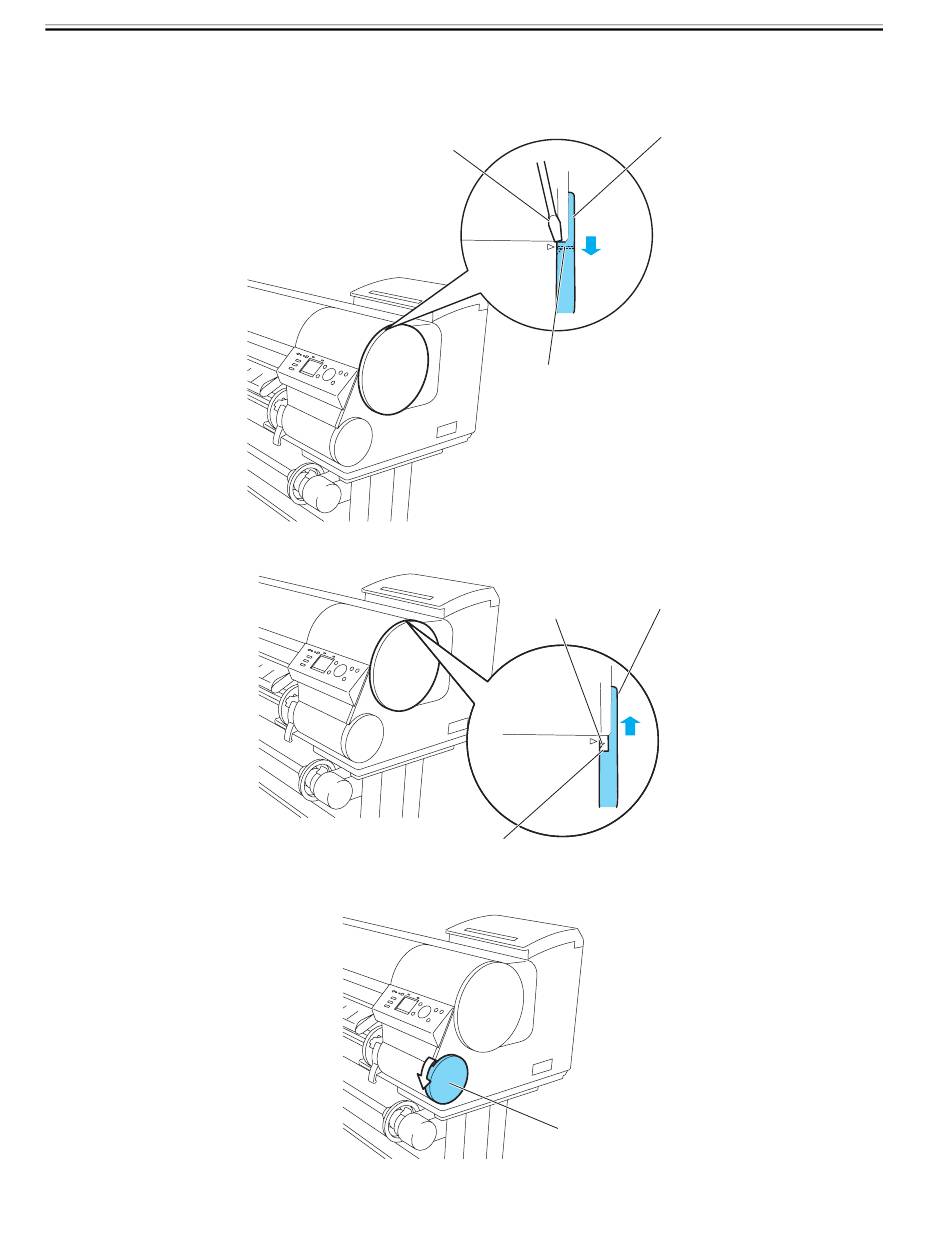

a) Left circle cover (L)/Right circle cover (L)
Removing the left circle cover (L)/right circle cover (L)
1) To remove circle cover (L) [1], insert flathead screwdriver [2] at the position shown in the figure to remove claw [3] and turn the cover forward to remove.
Installing the left circle cover (L)/right circle cover (L)
1) Install circle cover (L) [1] with its part [2] inserted in arrow mark [3] of the right side cover and turn the cover backward to install.
b) Left circle cover (S)/Right circle cover (S)
Removing the left circle cover (S)/right circle cover (S)
1) Remove circle cover (S) [1] by turning it forward to remove the hook.
4-6
[2]
[3]
F-4-8
[3]
[2]
F-4-9
[1]
F-4-10
[1]
[1]
0014-8958
