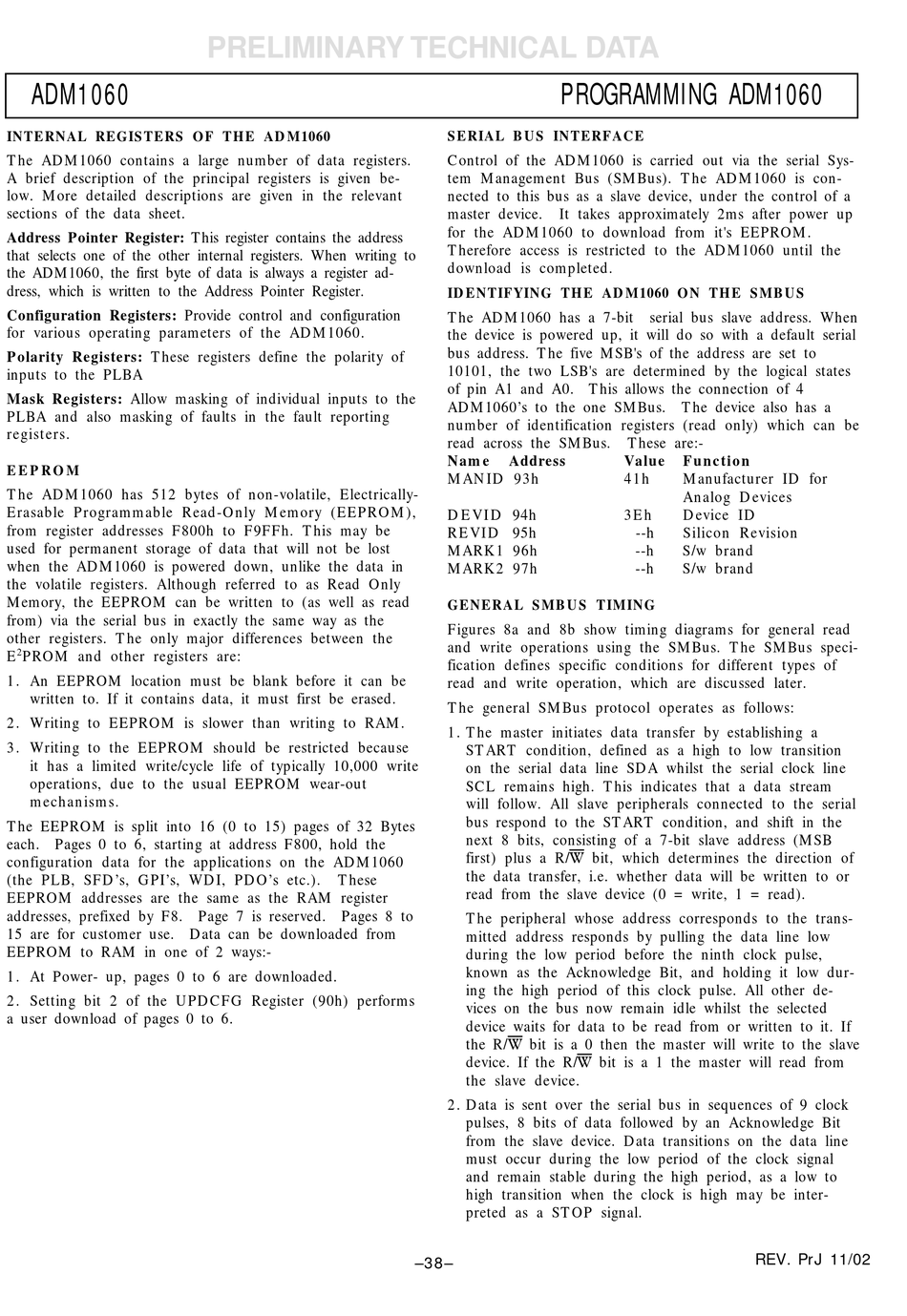

INTERNAL REGISTERS OF THE ADM1060

The ADM1060 contains a large number of data registers.
A brief description of the principal registers is given be-
low. More detailed descriptions are given in the relevant
sections of the data sheet.
Address Pointer Register: This register contains the address
that selects one of the other internal registers. When writing to
the ADM1060, the first byte of data is always a register ad-
dress, which is written to the Address Pointer Register.
Configuration Registers: Provide control and configuration
for various operating parameters of the ADM1060.
Polarity Registers: These registers define the polarity of
inputs to the PLBA
Mask Registers: Allow masking of individual inputs to the
PLBA and also masking of faults in the fault reporting
registers.

EEPROM

The ADM1060 has 512 bytes of non-volatile, Electrically-
Erasable Programmable Read-Only Memory (EEPROM),
from register addresses F800h to F9FFh. This may be
used for permanent storage of data that will not be lost
when the ADM1060 is powered down, unlike the data in
the volatile registers. Although referred to as Read Only
Memory, the EEPROM can be written to (as well as read
from) via the serial bus in exactly the same way as the
other registers. The only major differences between the
2
E PROM and other registers are:
1. An EEPROM location must be blank before it can be
written to. If it contains data, it must first be erased.
2. Writing to EEPROM is slower than writing to RAM.
3. Writing to the EEPROM should be restricted because
it has a limited write/cycle life of typically 10,000 write
operations, due to the usual EEPROM wear-out
mechanisms.
The EEPROM is split into 16 (0 to 15) pages of 32 Bytes
each. Pages 0 to 6, starting at address F800, hold the
configuration data for the applications on the ADM1060
(the PLB, SFD's, GPI's, WDI, PDO's etc.).
EEPROM addresses are the same as the RAM register
addresses, prefixed by F8. Page 7 is reserved. Pages 8 to
15 are for customer use. Data can be downloaded from
EEPROM to RAM in one of 2 ways:-
1. At Power- up, pages 0 to 6 are downloaded.
2. Setting bit 2 of the UPDCFG Register (90h) performs
a user download of pages 0 to 6.
PRELIMINARY TECHNICAL DATA
These
PROGRAMMING ADM1060

SERIAL BUS INTERFACE

Control of the ADM1060 is carried out via the serial Sys-
tem Management Bus (SMBus). The ADM1060 is con-
nected to this bus as a slave device, under the control of a
master device. It takes approximately 2ms after power up
for the ADM1060 to download from it's EEPROM.
Therefore access is restricted to the ADM1060 until the
download is completed.
IDENTIFYING THE ADM1060 ON THE SMBUS
The ADM1060 has a 7-bit serial bus slave address. When
the device is powered up, it will do so with a default serial
bus address. The five MSB's of the address are set to
10101, the two LSB's are determined by the logical states
of pin A1 and A0. This allows the connection of 4
ADM1060's to the one SMBus. The device also has a
number of identification registers (read only) which can be
read across the SMBus.
Name Address
MANID 93h
DEVID 94h
REVID 95h
MARK1 96h
MARK2 97h

GENERAL SMBUS TIMING

Figures 8a and 8b show timing diagrams for general read
and write operations using the SMBus. The SMBus speci-
fication defines specific conditions for different types of
read and write operation, which are discussed later.
The general SMBus protocol operates as follows:
1. The master initiates data transfer by establishing a
START condition, defined as a high to low transition
on the serial data line SDA whilst the serial clock line
SCL remains high. This indicates that a data stream
will follow. All slave peripherals connected to the serial
bus respond to the START condition, and shift in the
next 8 bits, consisting of a 7-bit slave address (MSB
first) plus a R/W bit, which determines the direction of
the data transfer, i.e. whether data will be written to or
read from the slave device (0 = write, 1 = read).
The peripheral whose address corresponds to the trans-
mitted address responds by pulling the data line low
during the low period before the ninth clock pulse,
known as the Acknowledge Bit, and holding it low dur-
ing the high period of this clock pulse. All other de-
vices on the bus now remain idle whilst the selected
device waits for data to be read from or written to it. If
the R/W bit is a 0 then the master will write to the slave
device. If the R/W bit is a 1 the master will read from
the slave device.
2. Data is sent over the serial bus in sequences of 9 clock
pulses, 8 bits of data followed by an Acknowledge Bit
from the slave device. Data transitions on the data line
must occur during the low period of the clock signal
and remain stable during the high period, as a low to
high transition when the clock is high may be inter-
preted as a STOP signal.
–38–
These are:-
Value Function
41h Manufacturer ID for
Analog Devices
3Eh Device ID
--h Silicon Revision
--h S/w brand
--h S/w brand
REV. PrJ 11/02
