TECHTOP TD20 Series Product Manual page 64

TD20 Series VFD
Function
Name
code
range 1
Jumping
P08.11
frequency 2
Jumping
P08.12 frequency
range 2
Jumping
P08.13
frequency 3
Jumping
P08.14 frequency
range 3
Traverse
P08.15
range
Sudden
jumping
P08.16
frequency
range
Traverse
P08.17
boost time
Traverse
P08.18
declining time

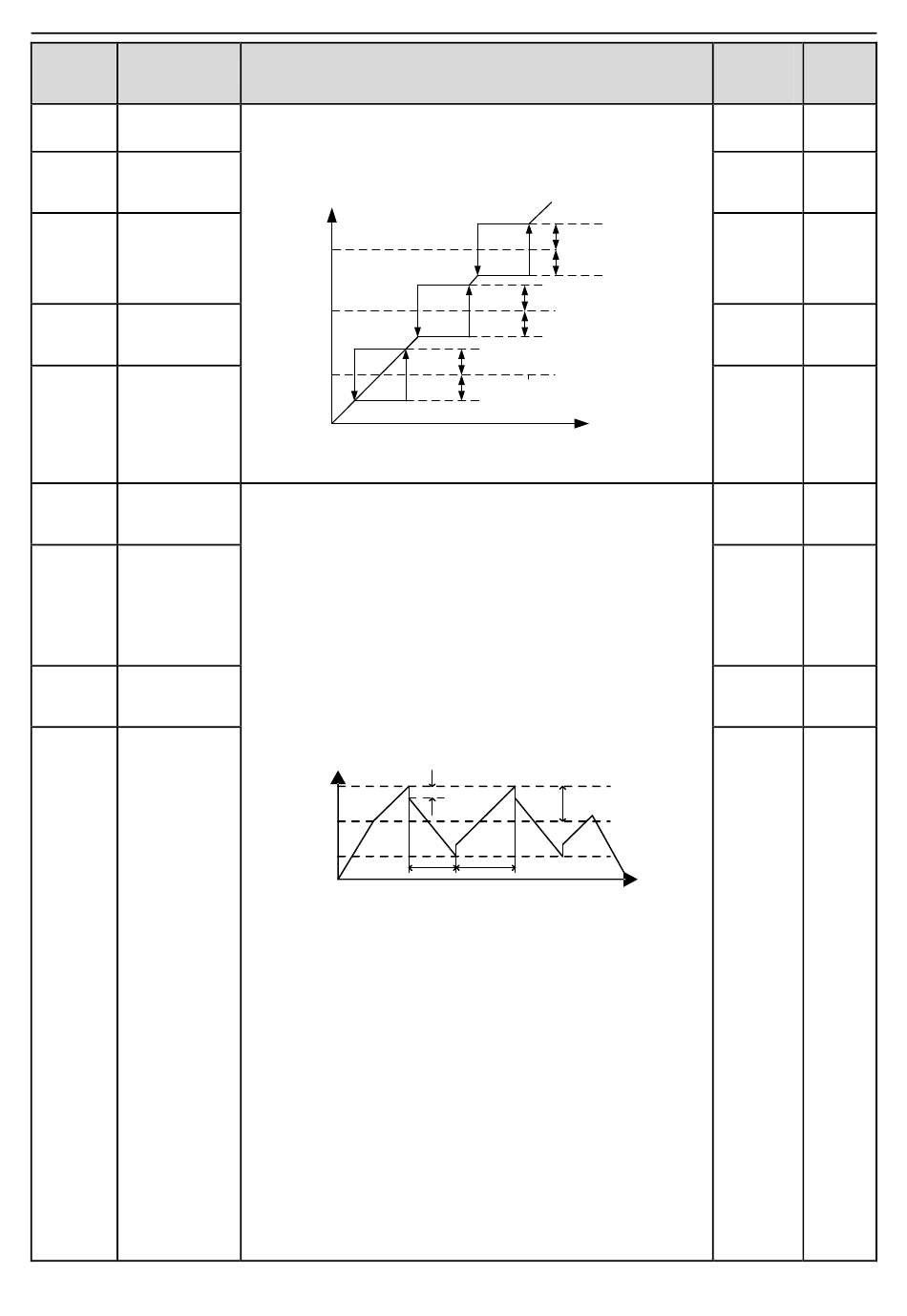

Detailed instruction of parameters
setting the jumping frequency. The VFD can set three
jumping frequency. But this function will be invalid if all
jumping points are 0.
Set frequency f
Jump
frequency 3
Jump
frequency 2
Jump
frequency1
Setting range: 0.00–P00.03 (the Max. frequency)
This function applies to the industries where traverse
and convolution function are required such as textile and
chemical fiber.
The traverse function means that the output frequency
of the VFD is fluctuated with the set frequency as its
center. The route of the running frequency is illustrated
as below, of which the traverse is set by P08.15 and
when P08.15 is set as 0, the traverse is 0 with no
function.
Output frequency
Upper limit
Center
frequency
Lower limit
Accelerate
Fall time
of traverse
Traverse range: The traverse running is limited by upper
and low frequency.
The traverse range relative to the center frequency:
traverse range AW＝center frequency×traverse range
P08.15.
Sudden jumping frequency＝traverse range
AW×sudden jumping frequency range P08.16. When
run at the traverse frequency, the value which is relative
to the sudden jumping frequency.
The raising time of the traverse frequency: The time
from the lowest point to the highest one.
The declining time of the traverse frequency: The time
½ x Jump bandwidth 3
½ x Jump bandwidth 3
½ x Jump bandwidth 2
½ x Jump bandwidth 2
½ x Jump bandwidth 1
½ x Jump bandwidth 1
Time t
Jitter frequency
Traverse amplitude
Raise time
of traverse
-62-
Function Parameters
Default
value
0.00Hz
0.00Hz
0.00Hz
0.00Hz
0.0%
0.0%
5.0s
Decelerate
T
5.0s
Modify
○
○
○
○
○
○
○
○
