TD20 Series VFD

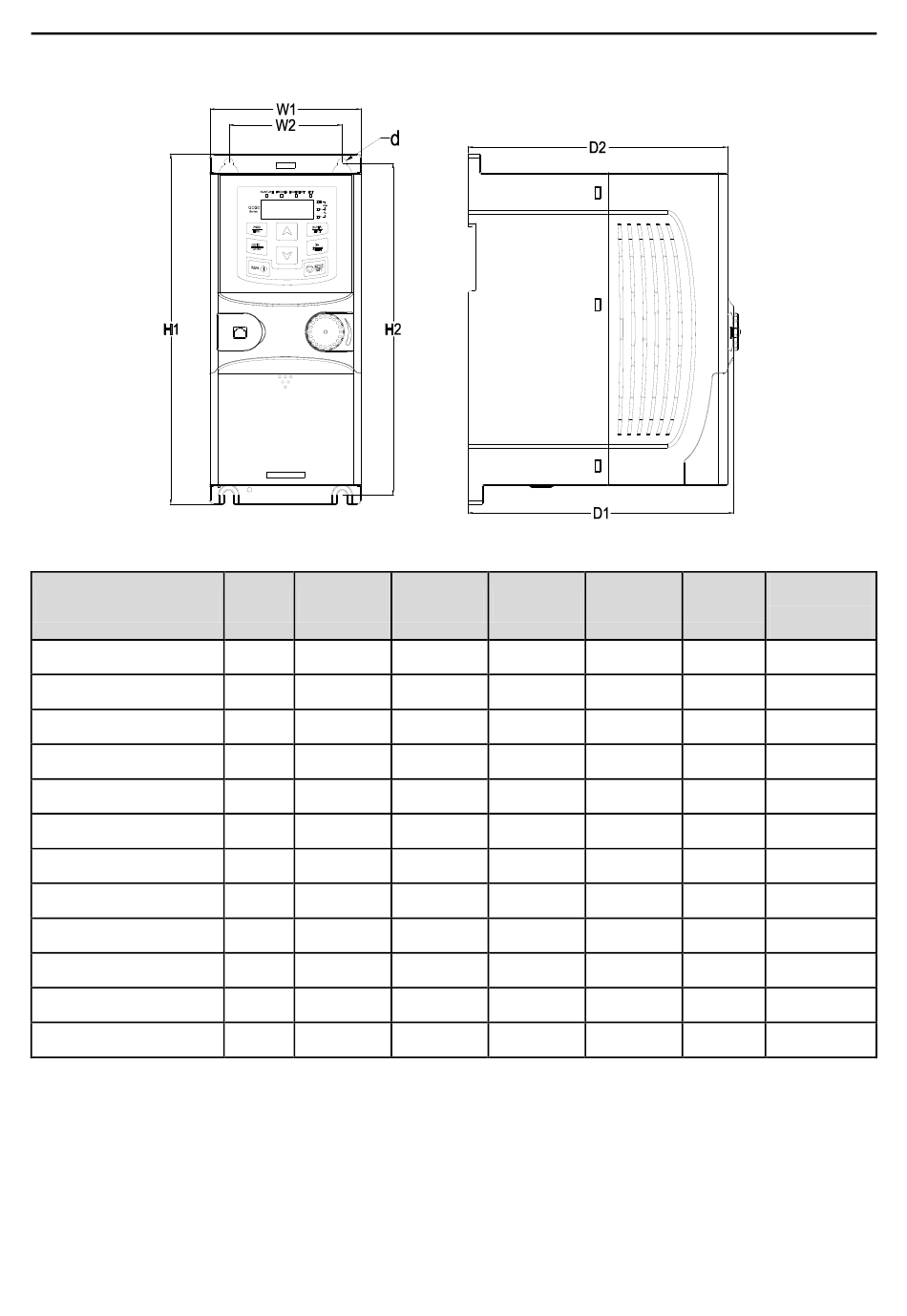

B.2 VFD chart
Model
TD20-0R4G-S1
TD20-0R7G-S1
TD20-1R1G-S1
TD20-0R4G-S2
TD20-0R7G-S2
TD20-1R5G-S2
TD20-2R2G-S2
TD20-0R4G-2
TD20-0R7G-2
TD20-0R7G-4
TD20-1R5G-4
TD20-2R2G-4
Wall mounting (unit: mm)
W1 W2
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
80.0 60.0
H1 H2
160.0 150.0
160.0 150.0
160.0 150.0
160.0 150.0
160.0 150.0
185.0 175.0
185.0 175.0
185.0 175.0
185.0 175.0
185.0 175.0
185.0 175.0
185.0 175.0
-118-
Appendix B Dimension Drawings
Installation
D1 D2
123.5 120.3
123.5 120.3
123.5 120.3
123.5 120.3
123.5 120.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
hole (d)
5
5
5
5
5
5
5
5
5
5
5
5
