supply. The default setting is NPN internal mode.
If the signal is from NPN transistor, please set the U-shaped contact tag between +24V and PW as
below according to the used power supply.
COM
PW
+ 24V
If the signal is from PNP transistor, please set the U-shaped contact tag as below according to the used
power supply.
+24V

3.3 Layout protection

3.3.1 Protecting the VFD and input power cable in short-circuit situations
Protect the VFD and input power cable in short circuit situations and against thermal overload.
Arrange the protection according to the following guide.

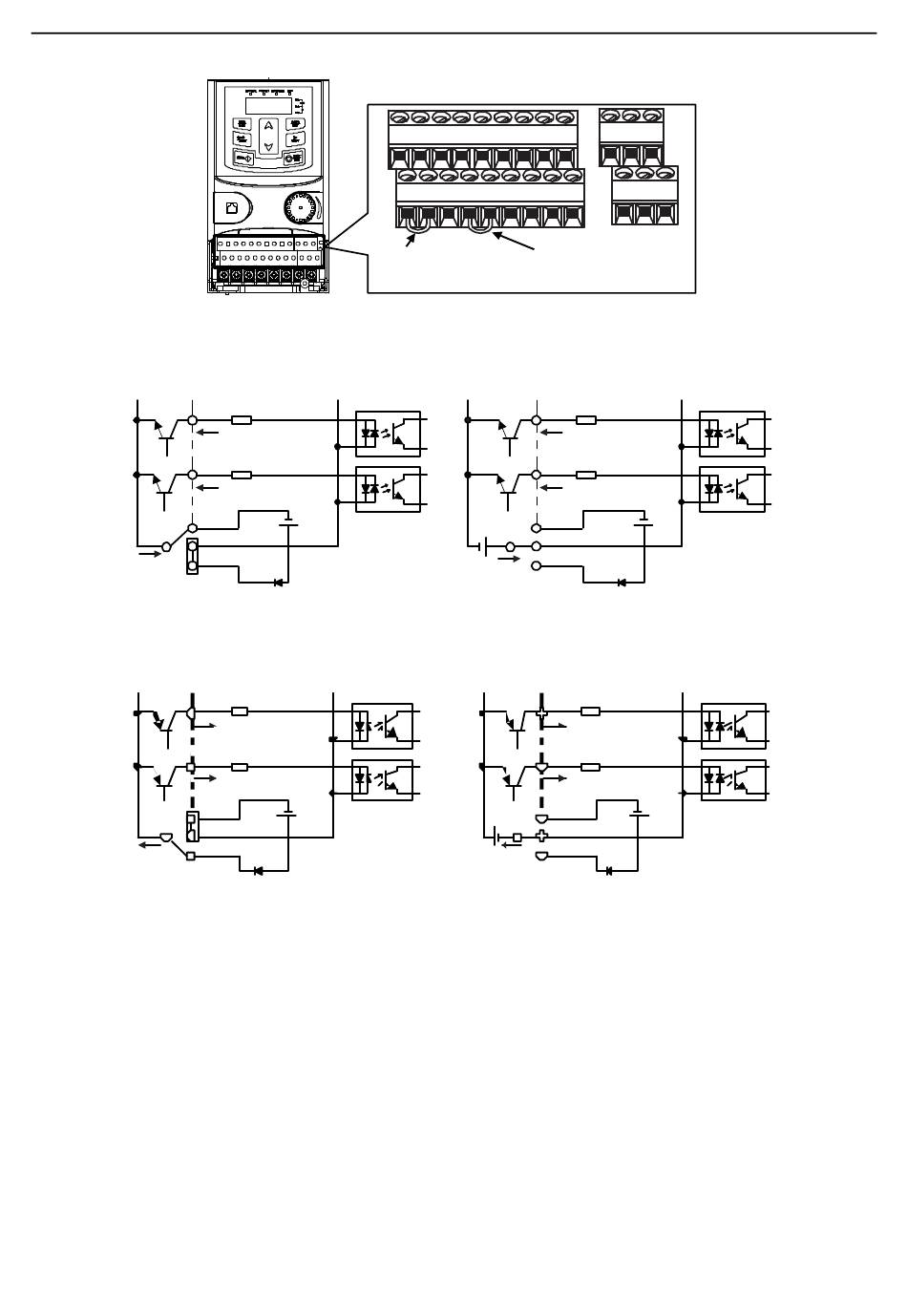

U-shaped contact
Figure 3-8 U-shaped contact tag
S1
S2
COM
+ 24V
Figure 3-9 NPN modes
S1
S2
COM
COM
+24V
PW
Figure 3-10 PNP modes
U-shaped contact
tag between
tag between
COM and CME
+24V and PW
S1
S2
COM
+ 24V
PW
+ 24V
S1
S2
COM
PW
+24V
