TECHTOP TD20 Series Product Manual page 121

TD20 Series VFD
Model
TD20-0R4G-S1
TD20-0R7G-S1
TD20-1R1G-S1
TD20-0R4G-S2
TD20-0R7G-S2
TD20-1R5G-S2
TD20-2R2G-S2
TD20-0R4G-2
TD20-0R7G-2
TD20-0R7G-4
TD20-1R5G-4
TD20-2R2G-4

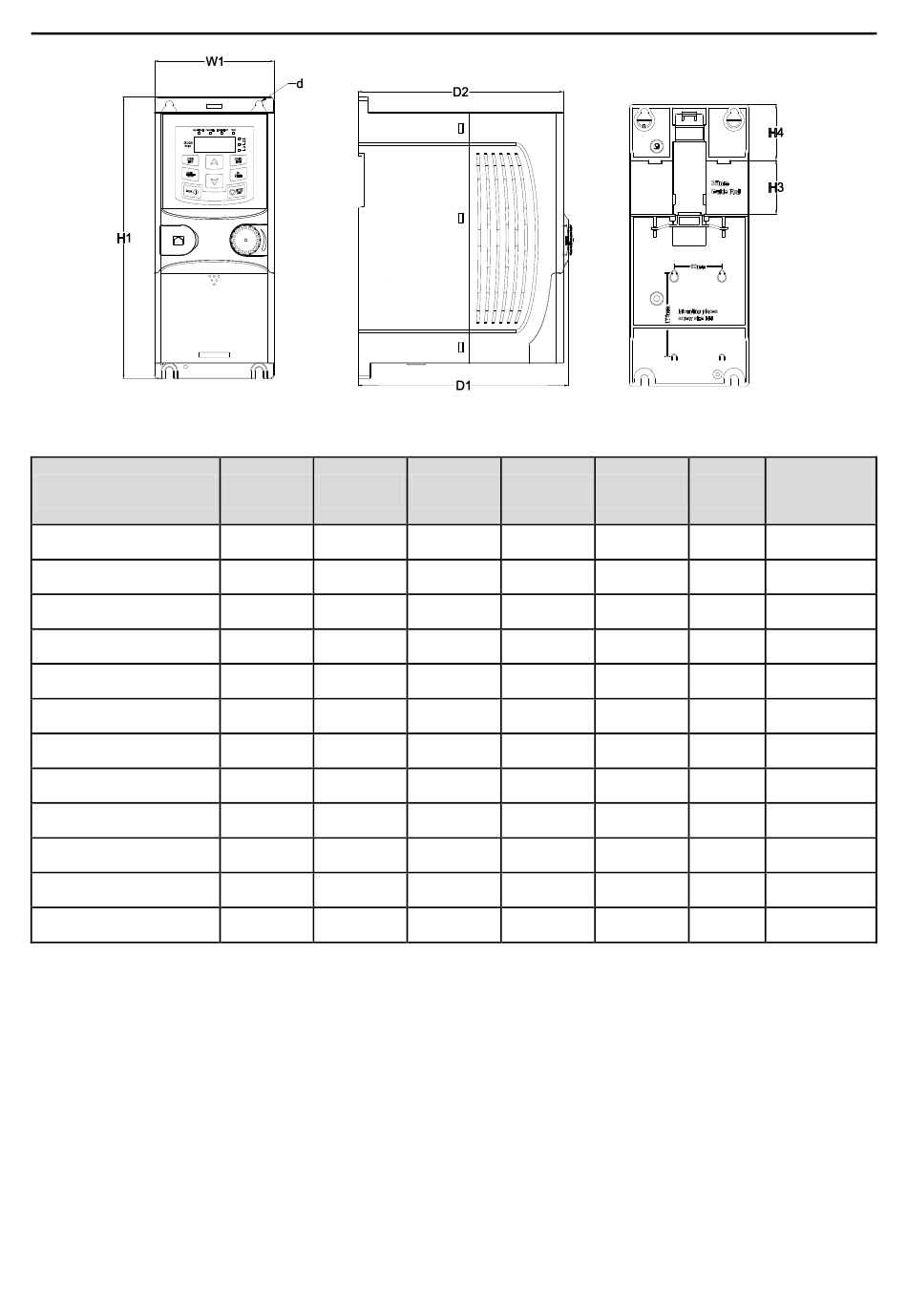

Rail mounting (unit: mm)
W1 H1
80.0 160.0
80.0 160.0
80.0 160.0
80.0 160.0
80.0 160.0
80.0 185.0
80.0 185.0
80.0 185.0
80.0 185.0
80.0 185.0
80.0 185.0
80.0 185.0
H3 H4
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
35.4 36.6
-119-
Appendix B Dimension Drawings
Installation
D1 D2
123.5 120.3
123.5 120.3
123.5 120.3
123.5 120.3
123.5 120.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
140.5 137.3
hole (d)
5
5
5
5
5
5
5
5
5
5
5
5
