TD20 Series VFD
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the
third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the control
panel, and then return to the second-level menu with shifting to the next function code automatically;
while pressing PRG/ESC will directly return to the second-level menu without saving the parameters,
and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation records
and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
All digits are blinking.
The units place is blinking.
Note: When setting the value, you can press
4.3.2 How to set the password of the VFD
TD20 series VFDs provide password protection function to users. Set P7.00 to gain the password and
the password protection becomes valid instantly after quitting from the function code editing state. Press
PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless using the correct
password, the operators cannot enter it.
Set P7.00 to 0 to cancel password protection function.
The password protection becomes effective instantly after retreating from the function code editing state.
Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless using the
correct password, the operators cannot enter it.
All digits are blinking.
The units place is blinking.
Note: When setting the value, you can press
PRC
ESC
PRC
ESC
The units place is blinking.
DATA
ENT

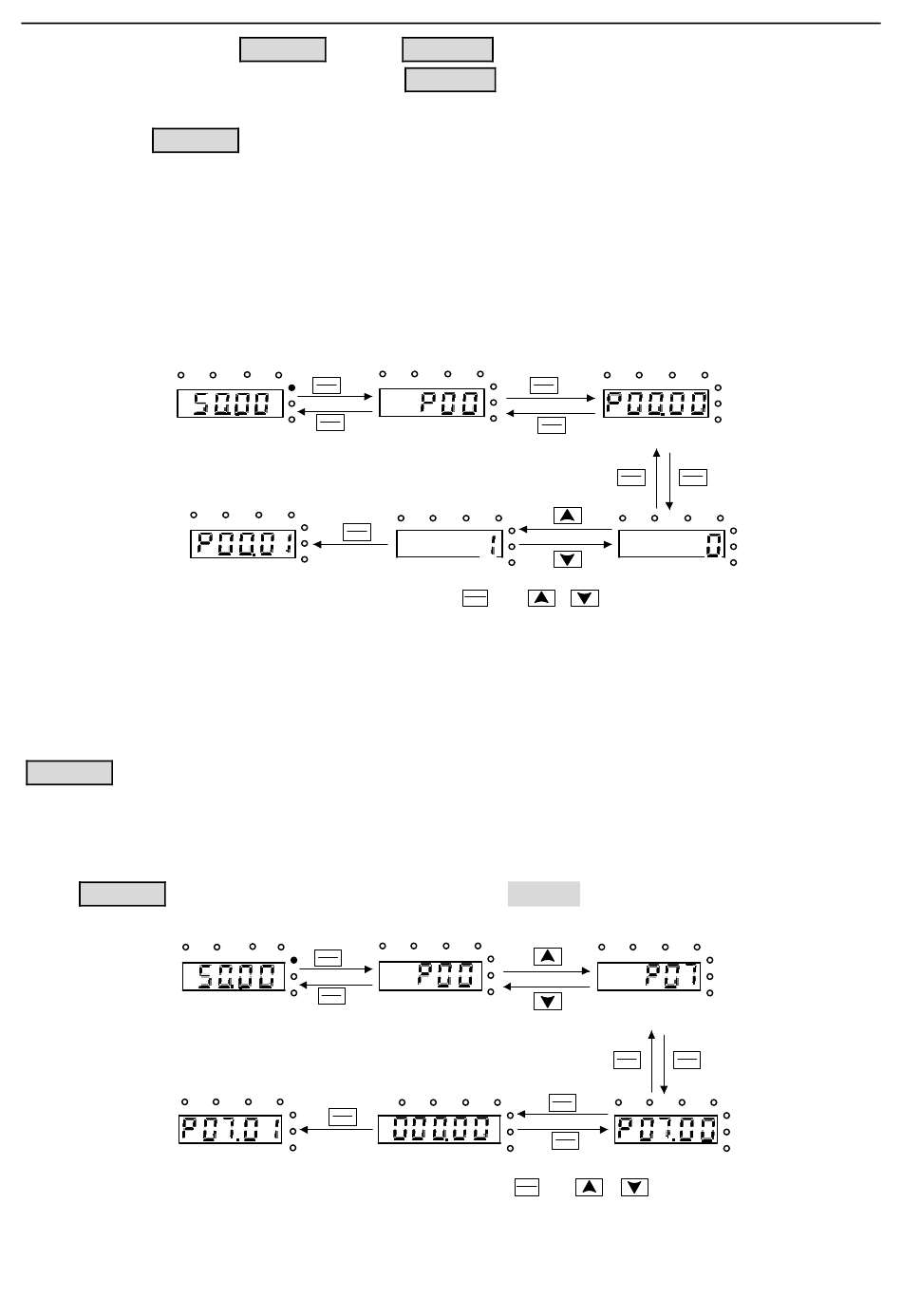

Figure 4-3 Sketch map of modifying parameters
PRC
ESC
PRC
ESC
The units place is blinking.
DATA
ENT
The units place is blinking. The units place is blinking.
Figure 4-4 Sketch map of password setting
DATA
ENT
PRC
ESC
The units place is blinking.
»
and + to modify the value.
SHIFT
The units place is blinking.
PRC
ESC
PRC
ESC
»
and
SHIFT
-22-
Keypad Operation Procedure
PRC DATA
ESC ENT
PRC DATA
ESC ENT
+ to modify the value.
