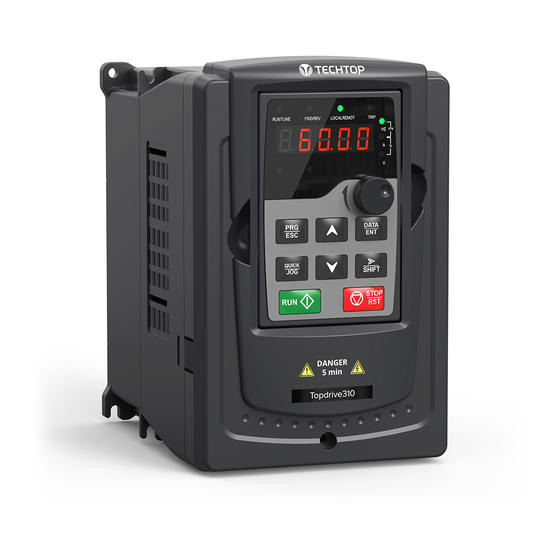

TOPDRIVE310 SERIES
NEMA 1 KIT INSTALLATION GUIDE

For NEMA 1 Kit Frames 1-5:

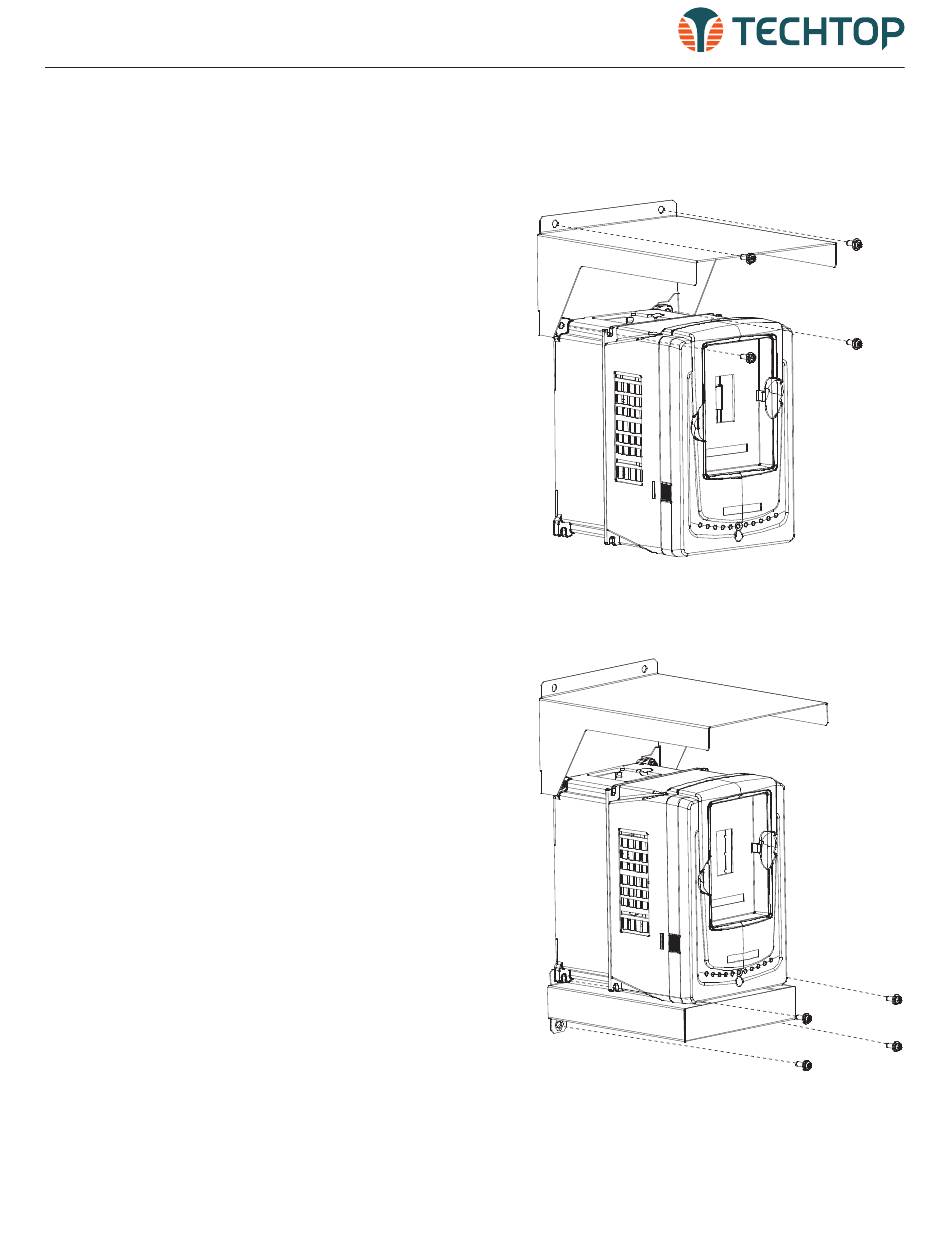

STEP 1

Place the drip-cover behind the drive and align
the mounting holes of the drip-cover with the
top mounting holes of the drive. Use the screws
for mounting the drive to secure the drive and
the drip cover to the mounting surface.
Screw quantity: 4
Screw specifications: Same as mounting screws

STEP 2

Align the bottom mounting holes of the drive
with the mounting holes of the junction box. Use
four screws to secure the junction box and drive
to the mounting surface.
Screw quantity: 4
Screw specifications: Same as mounting
screws
TECHTOP GENERAL PURPOSE VECTOR DRIVES, TD310 NEMA 1 KIT INSTALLATION GUIDE 1
