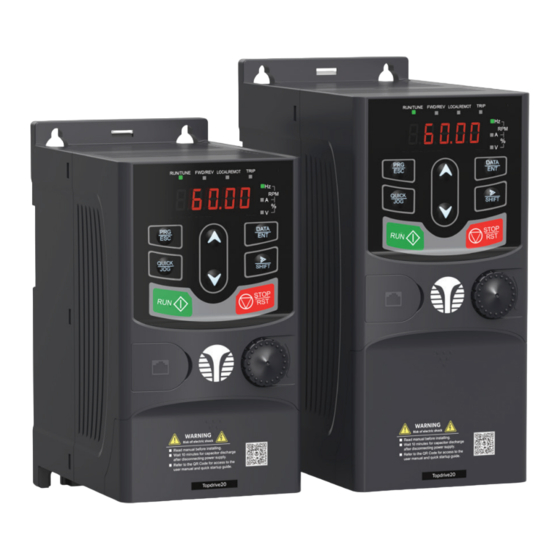

TOPDRIVE20 SERIES
NEMA 1 KIT INSTALLATION GUIDE

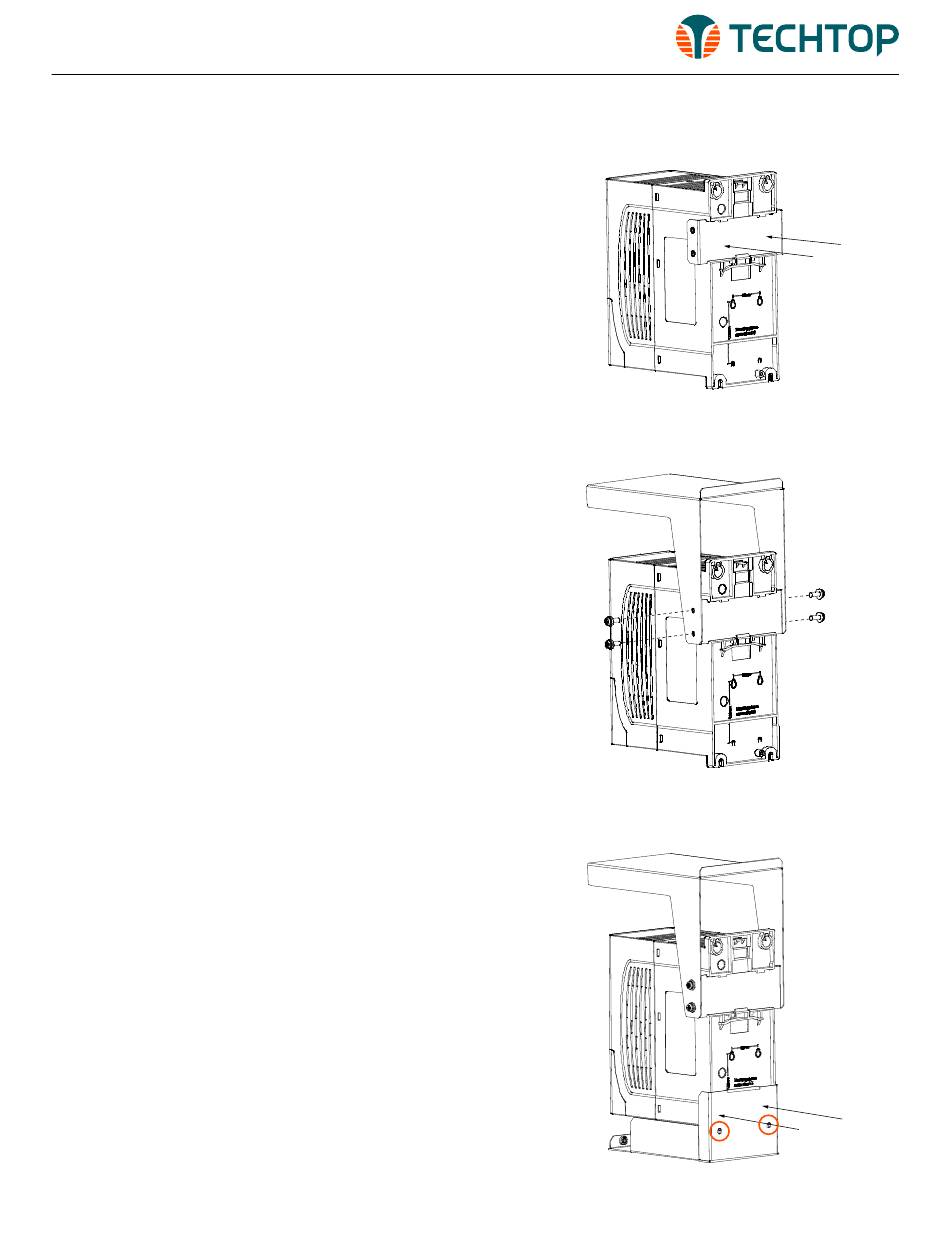

STEP 1*
Insert the drip-cover DIN rail plate into the DIN
rail bracket on the back of the drive.
*Note installation of the drip-cover is optional and should
be considered based on the environment. The drip-cover
is used to protect from falling debris and water.
STEP 2*
Align the mounting holes of the drip-cover with
the mounting holes of the DIN rail plate. Use
the four screws to secure the drip-cover to the
mounting plate.
Screw quantity: 4
Screw specifications: M4x10
*Note installation of the drip-cover is optional and should
be considered based on the environment. The drip-cover
is used to protect from falling debris and water.
STEP 3
Place the junction box base on the back of the
drive so the mounting holes align with the bottom
mounting holes of the drive.
TECHTOP GENERAL PURPOSE MICRO DRIVES, TD20 NEMA 1 KIT INSTALLATION GUIDE
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TECHTOP TOPDRIVE20 Series
Summary of Contents for TECHTOP TOPDRIVE20 Series
- Page 1 STEP 3 Place the junction box base on the back of the drive so the mounting holes align with the bottom mounting holes of the drive. TECHTOP GENERAL PURPOSE MICRO DRIVES, TD20 NEMA 1 KIT INSTALLATION GUIDE...
- Page 2 Align the holes of the junction box face plate with the junction box base. Use two screws to secure the junction box face plate to the junc- tion box base. Screw quantity: 2 Screw specifications: M4x10 TECHTOP GENERAL PURPOSE MICRO DRIVES, TD20 NEMA 1 KIT INSTALLATION GUIDE...
