TECHTOP TD20 Series Product Manual page 15

TD20 Series VFD
Terminal
PE Grounding terminal
Terminal
R, S, T Power input of the main circuit
U, V, W
PB, (+) Braking resistor terminal
PE Grounding terminal
Note:
•
Do not use asymmetrically motor cables. If there is a symmetrically grounding conductor in the motor
cable in addition to the conductive shield, connect the grounding conductor to the grounding terminal
at the VFD and motor ends.
•
Route the motor cable, input power cable and control cables separately.
•
When selecting C3 input filters, connect the filters in parallel at the input side of the VFD.
3.2.3 Wiring of terminals in main circuit
1. Connect the ground line of input power cable to the ground terminal of VFD (PE) directly, and
connect 3PH input cable to R, S and T and fasten up.
2. Connect the ground line of motor cable to the ground terminal of the VFD, and connect the 3PH
motor cable to U, V, W and fasten up.
3. Connect the brake resistor which carries cables to the designated position.
4. Fasten up all the cables on the outside of the VFD if allowed.
Terminal name

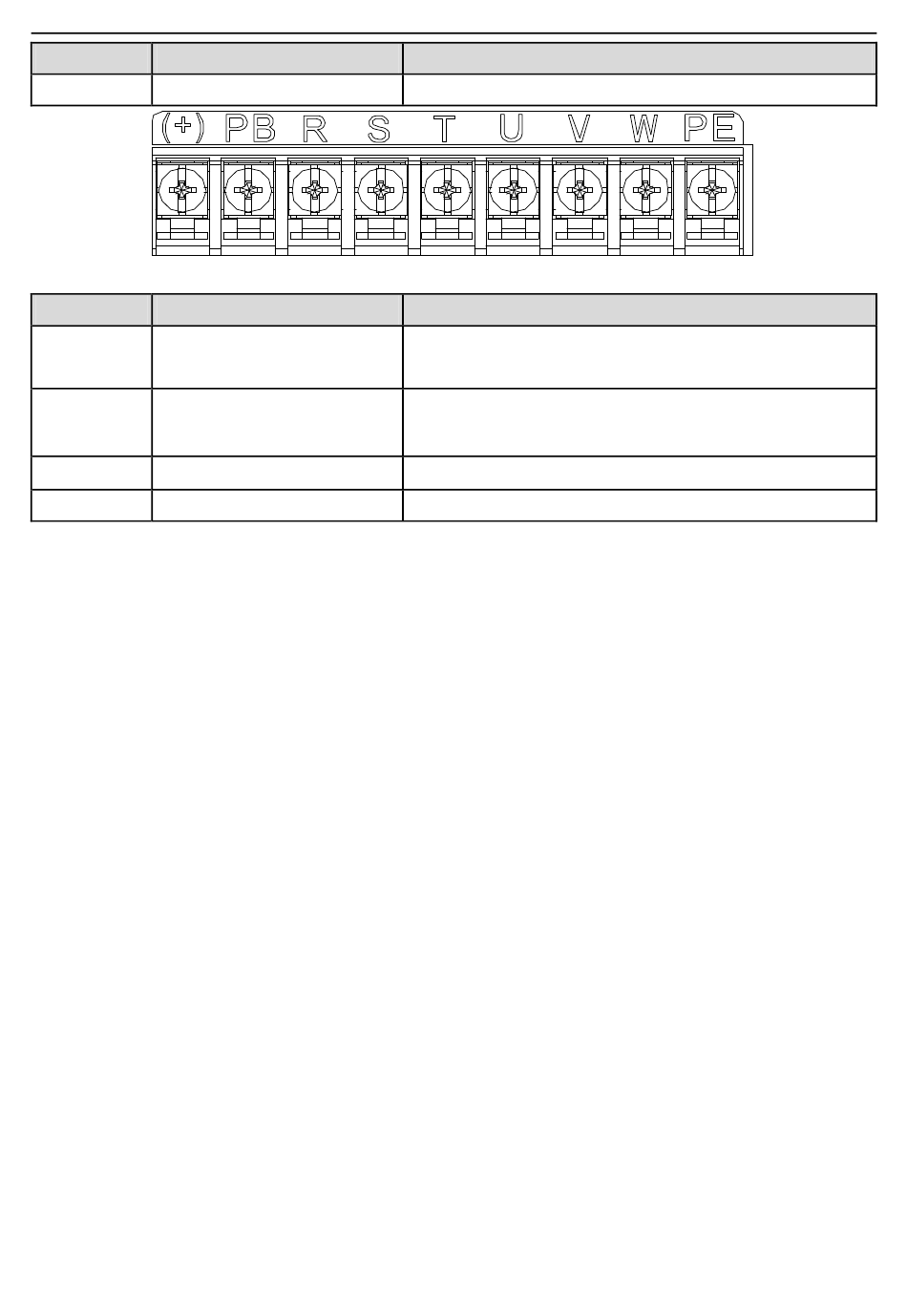

Figure 3-5 3PH terminals of main circuit
Terminal name
The VFD output
Each machine should be grounded.
3-phase AC input terminals which are generally
connected with the power supply.
3-phase AC output terminals which are generally
connected with the motor.
PB and (+) are connected to the external resistor.
Each machine should be grounded.
-13-
Installation Guide
Function
Function
