2) Remove the Note Transport

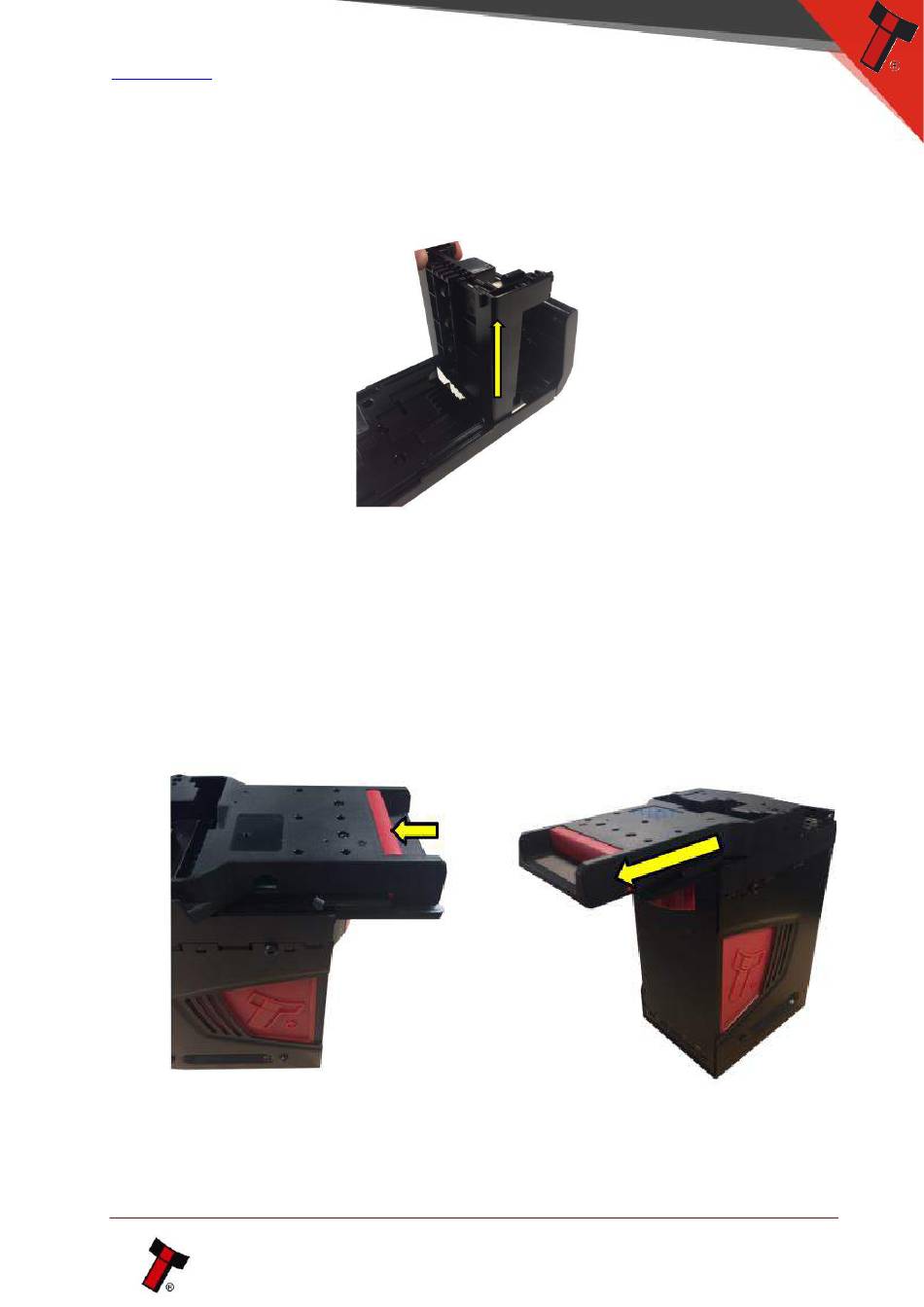

With the NV200 Spectral head removed, the Note Transport can be lifted

upwards to remove it from the safe. Check the Note transport for jammed notes

before inserting back into Outer Docking Plate and re-attaching the head

To clear a jam between the note transport and cashbox (access to the safe is required).

This is not applicable to the Stackerless version of the Safe Interface:

1) Follow the steps above to remove the Note Transport

2) Remove the Inner Docking Plate

Press the red latch on the Inner Docking Plate to unlock it, then slide forward to

remove the docking plate from the cashbox chassis:

3) Remove any jammed notes

With the Safe Interface fully removed, clear any jammed notes or debris.

Re-assemble in reverse order once cleared.
