User Manual NV200 Spectral Range
<< Back to Contents
6.5.4.2 NV200 Spectral with Spectral Payout Module

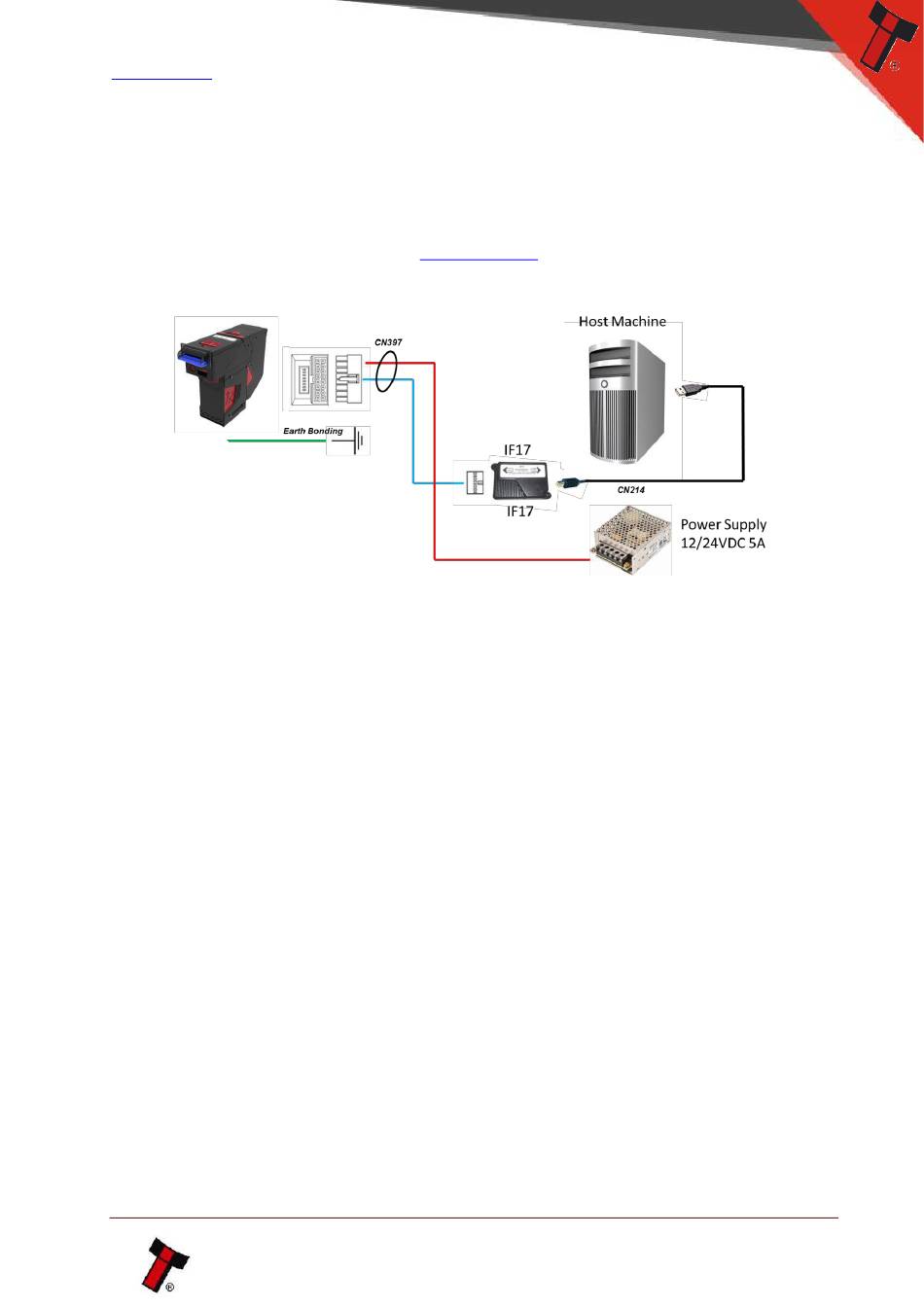

The drawing below highlights how to connect the NV200 Spectral Payout to a ccTalk
host machine using available cables and interfaces from Innovative Technology Ltd.
This is not true ccTalk as the Tx and Rx pins are not joined, pin 1 and 5 can be connected if
required.
For complete cable drawings refer to
Appendix
11.1.
Copyright © Innovative Technology Ltd 2019
Doc: GA02119 User Manual NV200 Spectral Range
Version: 2.2
Page 59 of 113
