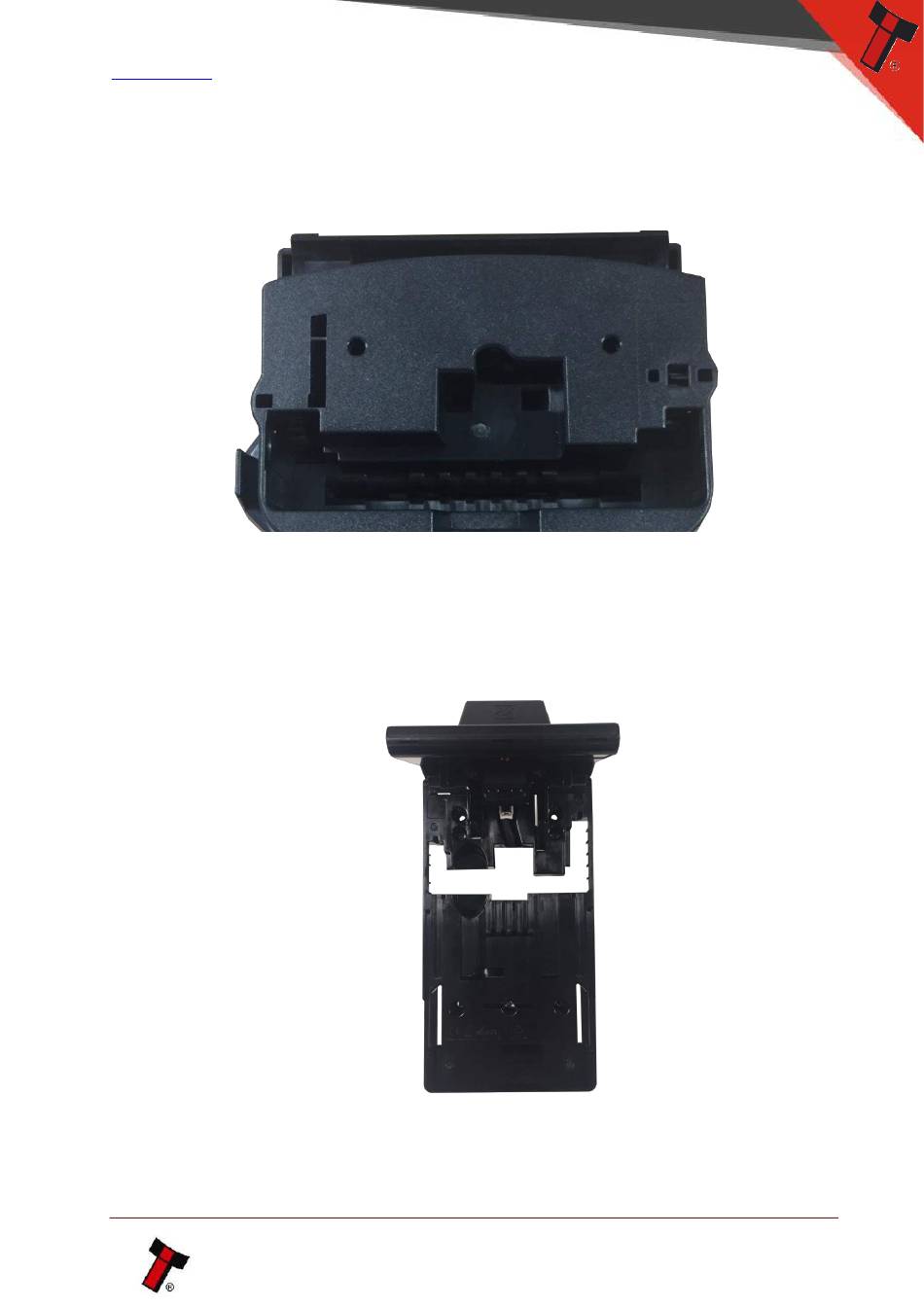

2) Dock the Inner Docking Plate
With the Inner Docking Plate correctly positioned, push it backwards until it
clicks into place. The aperture on top of the Inner Plate should line up with the
cashbox aperture on the chassis:
3) Attach the Outer Docking Plate
The outer docking plate mounts to the top of the safe, externally. The aperture
for the Note Transport must be cut into the safe and it must line up exactly with
the Inner Docking Plate mounted inside the safe.
4) Insert the Note Transport
The note transport is inserted into the top of the Outer Docking Plate. It will
travel through the aperture in the top of the safe and dock into place on the
Inner docking plate inside the safe.
