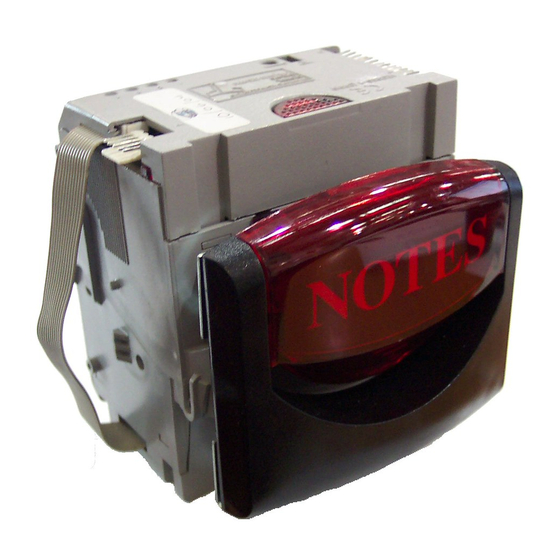

NV4(/5) Bank Note Validator
®
The Next Generation Smiley
Bank Note Validator
Operations Manual
© Copyright Innovative Technology Limited 1999
1
GA125 Issue 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Innovative Technology NV4

Summary of Contents for Innovative Technology NV4

  • Page 1 ® Innovative Technology Limited NV4(/5) Bank Note Validator ® The Next Generation Smiley Bank Note Validator Operations Manual © Copyright Innovative Technology Limited 1999 GA125 Issue 11...

  • Page 2: Introduction

    It also describes the functionality of the new NV5 validator fitted with Firmware Version 3.02. Please note that the NV4 Validator is pin for pin compatible with the NV2/3 Smiley® Validator at first glance. However it requires a higher peak operating current than the NV2/3.

  • Page 3: Table Of Contents

    Page INTRODUCTION ........................2 CONTENTS .......................... 3 SCOPE OF DOCUMENT ...................... 4 NV4 COMPARED WITH THE NV2/3 (SMILEY ®) ..............5 GENERAL DESCRIPTION ....................6 ENVIRONMENT AND POWER REQUIREMENTS ............. 11 INTERFACES: HARDWARE DESCRIPTION ..............12 INTERFACES: PROTOCOLS .................... 14 TEACHING AND SECURITY .....................

  • Page 4: Scope Of Document

    If the unit is re-taught pay particular attention to the instructions. Good teaching is essential to ensure satisfactory operation. If the tops and bottoms of NV4 Validators are swapped the unit must be re-calibrated. In the unlikely event of a problem it is better to have the complete unit checked.

  • Page 5: Nv4 Compared With The Nv2/3 (Smiley ®)

    “Smiley®” mouth  Bezel is held securely to fascia by 4 screws NV2 is clipped into fascia and steel retaining plates. NV4 body is easily clipped and unclipped to bezel.  Alternative Universal bezel allows NV4 to be fitted in a variety of different ways.

  • Page 6: General Description

    The NV4 Validator leaves the factory containing at least one currency data set so that it is ready for immediate installation. If it is desired to change the currency data set this may be done using either the NV4 to NV4 currency copy system or the PC based Currency Management software.
  • Page 7 Cloning: It is possible to clone Issue 1 and 2 NV4's to become NV5's but it is not possible to reverse the operation. Apart from the differences mentioned above the NV4 and NV5 functionality is the same. Therefore the rest of this manual applies to both products except where stated.
  • Page 8 General Description Display Information The four red LED’s on the top of the unit are used to provide a variety of status signals: Firmware revision code From software revision 2.50 onwards, when the validator is first switched on, the LED’s are used to signal the 3 digit firmware revision number in sequence using a binary coding.

  • Page 9: Note Validated As Known Fraud

    General Description Validation / reject codes (as from firmware version 2.6.2) When a note is accepted, while the unit is in parallel or pulse mode, a code is presented on the LED's representing the channel in which it was accepted. If the "enable reject code" option is set then, during note validation the heartbeat will be suspended and should the note be rejected then a code is flashed twice representing the reason for rejection, prior to the heartbeat returning.
  • Page 10 General Description Figure 5b – LED display indication for firmware version numbers Number LED DISPLAY GA125 Issue 11...

  • Page 11: Environment And Power Requirements

    Electrical Supply Minimum Maximum Supply Voltage (V dc) Absolute Limits MDB Supply Voltage NOTE: If input voltage falls below 10.5v the NV4 will shut down automatically Supply Ripple Voltage 0.25V @100Hz VCOM (Host logic high) Supply Currents With Stacker HS1 or...

  • Page 12: Interfaces: Hardware Description

    Hold this pin HIGH for Parallel Pulse output. Connect this pin LOW for Serial Outputs. Factory Test Pin FACTORY USE ONLY - DO NOT CONNECT 5 Pin Connector. For stacker use only. DO NOT power the NV4 validator through the 5 way connector Name: Description: Supply Voltage...
  • Page 13 Interfaces: Hardware Connector Details: 15 Pin 0.1" pitch header, Molex 22-01-2155 (RS Components equivalent 479 - 175) 5 Pin 0.1" pitch header, Molex 22-01-2055 (RS Components equivalent 467 - 627) Figure 6 - Input / Output circuits GA125 Issue 11...

  • Page 14: Interfaces: Protocols

    Escrow Control: The NV4 has a single note escrow facility. This allows the Validator to hold onto the note once accepted, and then only pass the note out of the back of the Validator when the host machine confirms that the Vend operation has been completed.
  • Page 15 If all four inhibits are high simultaneously then the NV4 will not read in any notes. In this mode, if a note is inserted the motor will run in reverse preventing the insertion of a note. All four inhibits may be connected together to create a 'global' inhibit.
  • Page 16 Interfaces: Protocols 300 baud Serial Output Only Mode. Pin 14 connected to 0V only Data format: 1 start bit 8 data bits 2 stop bits. 300 baud. Transmitted codes: MESSAGE DECIMAL VALUE Accept on C1 Accept on C2 Accept on C3 Accept on C4 Accept on C5 Accept on C6...
  • Page 17 Interfaces: Protocols Inhibit C10 Inhibit C11 Inhibit C12 Inhibit C13 Inhibit C14 Inhibit C15 Inhibit C16 Uninhibit C1 Uninhibit C2 Uninhibit C3 Uninhibit C4 Uninhibit C5 Uninhibit C6 Uninhibit C7 Uninhibit C8 Uninhibit C9 Uninhibit C10 Uninhibit C11 Uninhibit C12 Uninhibit C13 Uninhibit C14 Uninhibit C15...
  • Page 18 Interfaces: Protocols Example protocols are shown in the tables below: Event Validator Host 120  Note entered into validator Validator Busy 121   Validator Ready Note Accepted Channel 2  Accept on Channel 2 120  Note entered into validator Validator Busy 121 ...
  • Page 19 Refer to the special menu option setting to use this feature. If the NV4 is set to 15 channel mode it will issue the vend signals as a binary pattern on the parallel outputs for 100 milliseconds. In this way a maximum of 15 different notes can be accepted and controlled.

  • Page 20: Teaching And Security

    Requirements NV4 whose board issue number (x.00) must be the same as the slave you wish to copy to. Typically issue 1 units can only be re-programmed by another issue 1 unit. The same applies for issue 2 units. The slave firmware issue can be the same or a lower level of firmware than the Master, but if it is a higher version of firmware in the Slave, it will not accept the data from the lower level Master unit.
  • Page 21  The Master and Slave NV4s are connected together using the NV4 copy cable as above.  On the 15 pin connector on the Master NV4, pins 15 and 14 are held low and +12v input is connected to pin 11 and 0v to pin 12.
  • Page 22 Figure 8 - Connecting Master and Slave NV4 units to copy a currency set  If you are using the NV4 copy connector you can simply connect your existing 15 way plug to the master NV4 with this piece in-between.
  • Page 23 Currency Transfer. LED’s 1 and 4 on both NV4 Units will flash on and off while the transfer is taking place, if an error occurs during this process, led 1on the master will flash on its own and the process can be restarted to try again. At the end of the Currency transfer, LED’s 3 &...
  • Page 24 Refer to the section below on the Special Menu Features on how to set the Code Lock, and how to enter the Code Lock if required. (refer to page. 29) If a code lock is set, when the NV4 is switched to Teach, LED 1 will be lit.
  • Page 25 Occasionally the NV4 will not accept one of the first notes because it looks too different from the others e.g. the first old note. Put the note to the bottom of the pile and try again later. If the NV4 continues to reject all the old notes, it is best to teach these as a separate face.
  • Page 26 While teach notes are being inserted the NV4 performs a very elementary test to look for operator errors. The NV4 checks the length of the notes and also does a crude test to see if subsequent notes are similar to the first teach note that was inserted.
  • Page 27 Security Levels The NV4 has three security level options. The security levels affect the severity of note testing and may be independently set for each of the channels. The higher the level of security the more closely the validation is examined.

  • Page 28: Special Menu Features

    If a code lock is set, when the NV4 is switched to Teach, LED 1 will be lit. Otherwise none of the LED’s will be lit. (Refer to Figure 13) The code lock must be entered, as described below, before a menu selection can be made.
  • Page 29 To disable the fifteen channel teach mode, repeat the above procedure points 1 - 6. Selecting a Channel To Teach In Fifteen Channel Mode 1 Power up the NV4 with the teach/run switch in the run position. 2 Switch the teach/run switch to the teach position.
  • Page 30 “Reset Code Lock” facility in the NV4 Currency Manager program. Note: Binary notation is the expressing of numbers as a pattern of “1” and “0”. On the NV4 Validator the code numbers are in binary as shown by the red LED’s and these are indicated as follows.
  • Page 31 Special Menu Features 5 Quickly slide the switch from teach to run and back to teach. 6 Press the select button repeatedly until the third and final digit shows on the red LED’s. 7 Quickly slide the switch from teach to run and back to teach. All red LED’s will flash twice.. 4.

  • Page 32: Mechanical Installation

    Calibration and Routine Maintenance Mechanical Installation The NV4 validator can be supplied with either the Conventional Bezel or the Universal bezel. Refer to drawings on pages 40 and 45 for more details. Mounting Recommendation Details for the Conventional Bezel In connection with the following instructions refer to Drawings GA105 for Fitting Details, GA106 for approximate dimensions required to fit the Validator, and GA107 for Cleaning &...
  • Page 33 4. Leave space below the validator for the note when it is in a pre-validated position. This space should be sufficient to accommodate the longest note that the validator will see plus 25mm. 5. Cashbox designs should comply with the details shown in Drawings GA123 for the NV4 and GA146 for the NV5.

  • Page 34: Calibration And Routine Maintenance

    Calibration: The NV4 has an in-built calibration system. To re-calibrate an NV4 the unit must first be powered OFF and fitted to its front bezel. It must also be removed from any stacker it is fitted to. Now insert a piece of white paper into the curved entrance until it hits the drive wheels (letter quality, ideally 100 gram, white matt linen - approximately 150mm x 80mm.

  • Page 35: Fault Finding

    (+5v to any note. +12v) Have sufficient notes been used to 30 different notes are teach the NV4? recommended, but some currencies may require more Check that the relevant inhibits are Test interface disabled ( to enable a channel). The inhibit pin should be held logic low (0v).

  • Page 36: Support Tools

    2. PC Hardware Diagnostics Software. In order to assist with the repair and testing of NV4, a diagnostic software package is available which allows the various functions of the validator to be individually operated remotely from a PC using a serial link.

  • Page 37: Parts List And Drawings

    Parts List Parts List and Drawings No Part No Description No required PM102 TOP COVER (NV4 Grey) PM102BK TOP COVER (NV5 Black) PM103 TOP PATH PM104 BOTTOM PATH PM105 BOTTOM COVER (NV4 Grey) PM105BK BOTTOM COVER (NV5 Black) PM106 DRIVE WHEEL...
  • Page 38 Parts List 45 PM191 LEFT STRIMMER COVER 46 PM192 RIGHT STRIMMER COVER 47 PM206 CURVE GUIDE LH AS REQ 48 PM207 CURVE GUIDE RH AS REQ No Part No Description No Required Including Conventional Bezel: PM100 BEZEL MC104 UPPER BEZEL STUD MC109 LOWER BEZEL STUD MC105...
  • Page 39 Drawings Figure 19 - NV4/5 Exploded View GA125 Issue 11...
  • Page 40 Drawings Figure 20 - NV4 Fixing Instructions with Conventional Bezel GA125 Issue 11...
  • Page 41 Drawings Figure 21 - NV4 / NV5 Outline Dimensions GA125 Issue 11...
  • Page 42 Drawings Figure 22 - NV4 Cleaning Instructions GA125 Issue 11...
  • Page 43 Drawings Figure 23 - NV4 Cashbox Advice GA125 Issue 11...
  • Page 44 Drawings Figure 24 – NV5 Cashbox Advice GA125 Issue 11...
  • Page 45 Drawings Figure 25 - NV4 Validator panel / door mounted using Universal Bezel and Escutcheon Plate GA125 Issue 11...
  • Page 46 Drawings Figure 26 - NV4 Validator internally mounted using Universal Bezel GA125 Issue 11...
  • Page 47 Drawings Figure 27 - NV4 Validator internally mounted using Universal Bezel and Escutcheon Plate GA125 Issue 11...

  • Page 48: Revision History

    Revision History Revision History Issue No. Mod No. Date Done by Issue 1 Sales Pre Release 7/11/97 Issue 2 Production release 18/2/98 Issue 3 MOD 160 11/09/98 Issue 4 MOD 291 26/08/99 Issue 5 MOD 333 22/02/00 JB / AZ Issue 6 MOD 362 23/03/00...
