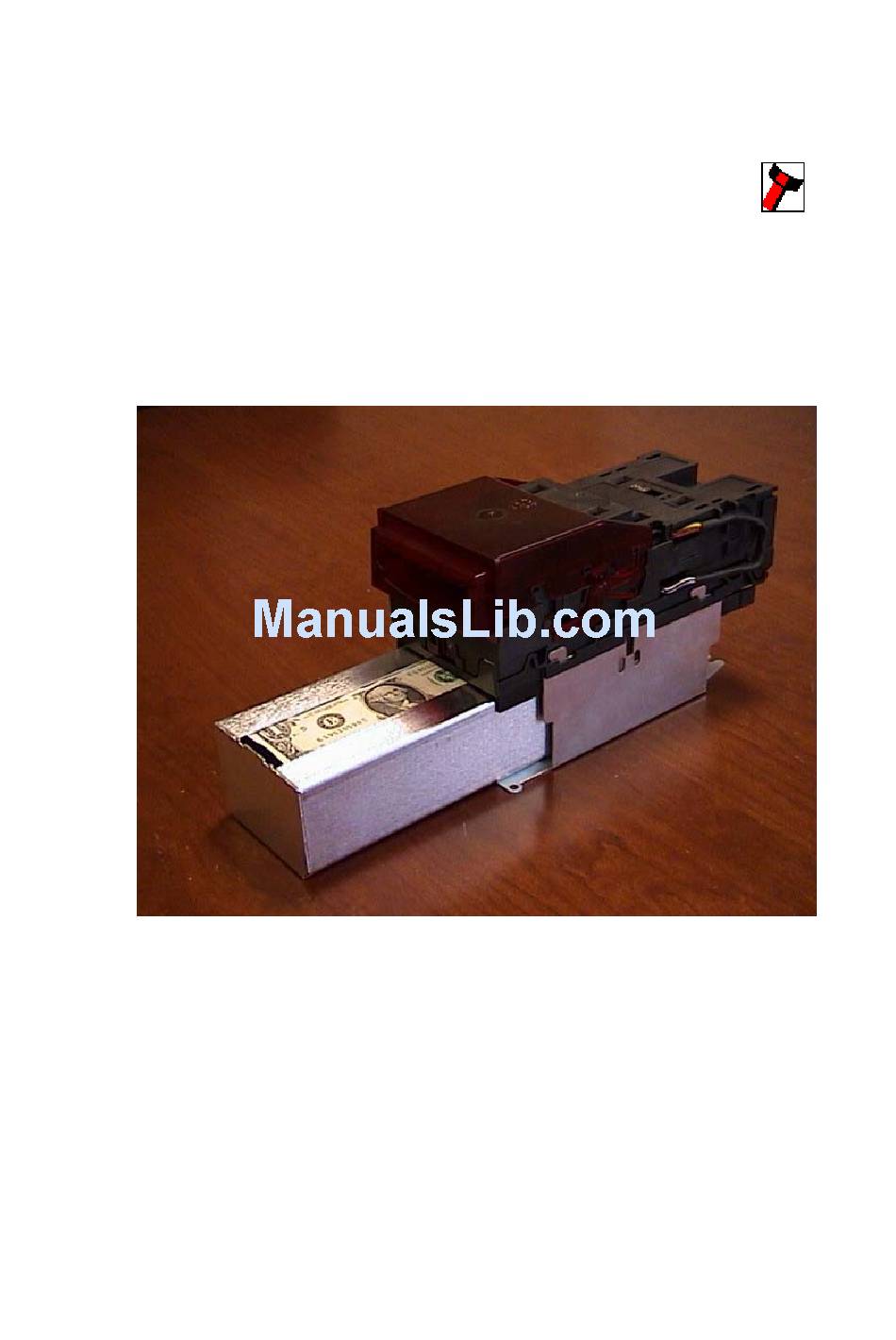

- Page 1 Innovative Technology Limited ® NV7 Bank Note System ® The Future of Smiley Bank Note Handling Operations Manual Issue 2 © Copyright Innovative Technology Limited 2001...
-
Page 2: Introduction
This manual describes the operation of the NV7 Bank note Validator as fitted with Firmware Version 1-00 Please note that the NV7 Validator is NOT pin for pin compatible with the NV2/3/4/4X or 5 series products We recommend that you study this manual as there are many new features permitting new uses and more secure applications. -
Page 3: Table Of Contents
Contents Page INTRODUCTION.............................2 CONTENTS.............................3 SCOPE OF DOCUMENT ........................4 GENERAL DESCRIPTION ........................5 NV7 FUNCTIONALITY ...........................6 ENVIRONMENT AND POWER REQUIREMENTS ................7 INTERFACES: HARDWARE DESCRIPTION..................8 INTERFACES: PROTOCOLS ......................10 MECHANICAL INSTALLATION......................14 CALIBRATION AND ROUTINE MAINTENANCE................15 FAULT FINDING...........................16 SUPPORT TOOLS..........................17 PARTS LIST AND DRAWINGS ......................18... -
Page 4: Scope Of Document
Do not attempt to lubricate the mechanisms as this may affect the note transport. Do not polish the lens as this may alter the optical characteristics. If the NV7 Validator is disassembled the unit must be re-calibrated. In the unlikely event of a problem it is better to have the complete unit checked. -
Page 5: General Description
The NV7 Validator leaves the factory containing at least one currency data set so that it is ready for immediate installation. If it is desired to change the currency data set this may be done using either the NV7 to NV7 currency cloning system or the PC based Currency Management software. -
Page 6: Nv7 Functionality
The red status is used to indicate system problems – these are described below Slow flashing green In normal RUN operation, when the NV7 is ready to read a note, the green led Heartbeat (slow = status led will flash slowly ("Heartbeat") to signal a “healthy” status. -
Page 7: Environment And Power Requirements
Humidity 95% Non condensing Electrical Supply Minimum Maximum Supply Voltage (V dc) Absolute Limits *MDB Versions Supply Voltage NOTE: If input voltage falls below 10.5v the NV7 will reject notes Supply Ripple Voltage 0.25V @100Hz Supply Currents Standby 350mA Validating... -
Page 8: Interfaces: Hardware Description
Interfaces: Hardware Description Interface Logic levels Logic Low Logic High Inputs 0V < Low < 0.5 +3.7V < High <12V 0.6V pull up voltage of host interface Outputs with 10KΩ pull up Maximum Current Sink 50mA per output Note that the output low signal is affected by the value of the pull up resistor on the host interface. All outputs are open collector transistors. - Page 9 Inhibit 4 Inhibit channel 4 by holding this pin HIGH Busy NV7 is validating and stacking output. Active low while the NV7 is reading, transporting or stacking a note. Escrow Operate Escrow function by holding LOW, refer to Escrow section for...
-
Page 10: Interfaces: Protocols
30 second time-out. For channels above 4, taking all the inhibits high will cause a note reject. In the event of a note being forcibly removed from the mouth of the NV7 during the 30 second interval, the NV7 will go out of service for 45 seconds. - Page 11 If all four inhibits are high simultaneously then the NV7 will not read in any notes. In this mode, if a note is inserted the motor will run in reverse preventing the insertion of a note. All four inhibits may be connected together to create a 'global' inhibit.
- Page 12 2 .NV7 - NV7 Copy (Cloning) Overview The facility exists for using an NV7 Bank Note Validator to copy its programme and settings to another NV7 The ‘Master’ validator will transmit the currency data and upgrade the slave’s firmware if necessary.
- Page 13 NV7 – NV7 copy process. Connect NV7 master to slave using copy adaptor and apply power Master unit will flash RED and GREEN LED if the connector is configured correctly. RED and GREEN on master flash together – attempting to communicate with slave.
-
Page 14: Mechanical Installation
Mechanical Installation The NV7 validator can be supplied with either the Horizontal Bezel (PM314 & PM315) or the Vertical bezel (PM306 & PM305). Changing or removing the bezels: Push both of the locking arms so that they disengage from the bezel sides. The bezel may then be unhooked from the 6 locating points. -
Page 15: Calibration And Routine Maintenance
Cleaning: Slide the red catch on the end of the NV7 Validator to open the note path. The note path and lozenge may now be exposed for cleaning. Wipe the surfaces with a soft lint free cloth that has been dampened with a water and detergent solution (such as a household washing up liquid) NEVER use a solvent based cleaner such as alcohol, petrol, methylated spirits, white spirit, or PCB cleaner. -
Page 16: Fault Finding
Check that the unit has been Check Currency on label programmed for this note. Check the security setting Adjust security setting Notes not stacking correctly Is cash box fitted? Replace cash box Is cash box damaged Incorrect cash box for NV7... -
Page 17: Support Tools
Please contact sales at Innovative Technology for password updates. 3. Email Support. If the data you require is not available over the Internet Innovative Technology supports an email system to help customers with unusual requirements. The address is sales@innovative-technology.co.u... -
Page 18: Parts List And Drawings
Parts List and Drawing... -
Page 27: Revision History
Revision History Issue No. Mod No. Date Done by Draft A July 2001 Issue 1 January 2002 Issue 2 June 2002...
