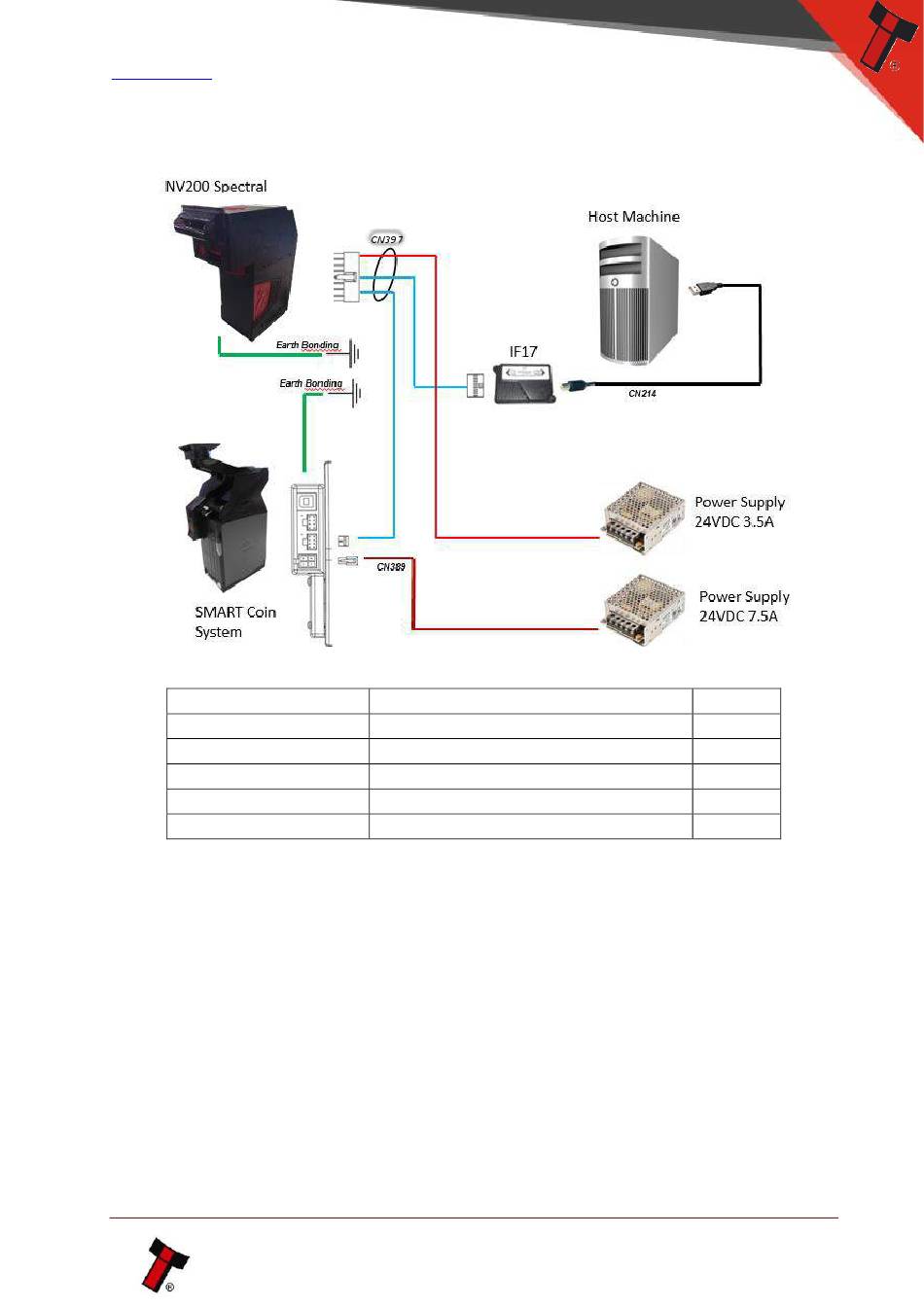

6.4.3.2 NV200 Spectral and Smart Coin System

Part Name
NV200 Spectral
PA02014
IF17
CN397
CN214
Power Requirements
This setup option requires a stable 24VDC / 3.5A power supply for the NV200 Spectral
whilst the SCS requires 24V DC 7.5A according to the product specification.
Check the power requirements of your host machine and other peripherals to
dimension a proper power environment for your system setup.
Caution
It is very important that the cashbox chassis of the NV200 Spectral is bonded to earth,
as lack of proper bonding can cause communication issues and failures. The earth
bonds on a NV200 Spectral should be made to the intended connection on the outer
Cashbox. The resistance between the cashbox and the Earth pin on the mains plug
should be less than 0.7 ohms.
Copyright © Innovative Technology Ltd 2019
Description
NV200 Spectral Note Validator
NV200 Docking Interface
USB Interface Converter
Docking Plate / Spectral Payout to Host Cable
USB A to B Cable Assembly
Quantity
Doc: GA02119 User Manual NV200 Spectral Range
1
1
1
1
Version: 2.2
Page 56 of 113
