7.3.3 Cleaning the TEBS Cashbox

Remove the cashbox as this provides access to the moving parts within the TEBS

cashbox. Once the cashbox has been removed, detach the NV200 Spectral head this

provides access to the drive gears.

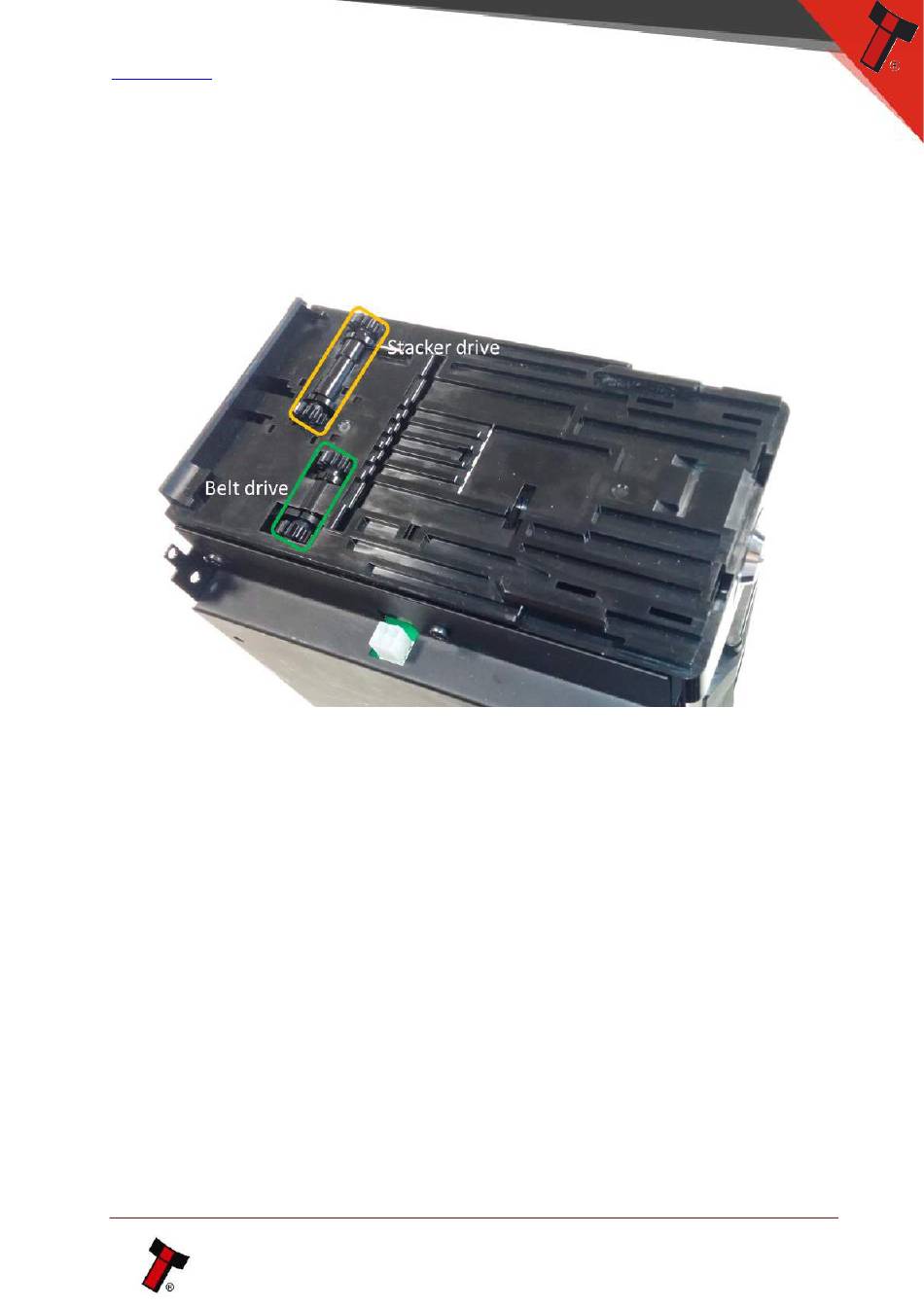

Manually turn the stacker drive this will move the stacker forward, when at the full

extension there is a tactile bump. This will hold the stacker out allowing compressed air

(Max pressure = 5 bar) to be blown into the unit.

Once the debris has been cleared check foam strips on the stacker to ensure they are

not damaged, if not move the stacker back into the rest position. If they are damaged,

remove the stacker plate by pushing up and replace the strips with ITL part number

LB2034.

Doc: GA02119 User Manual NV200 Spectral Range

Version: 2.2

Page 65 of 113
