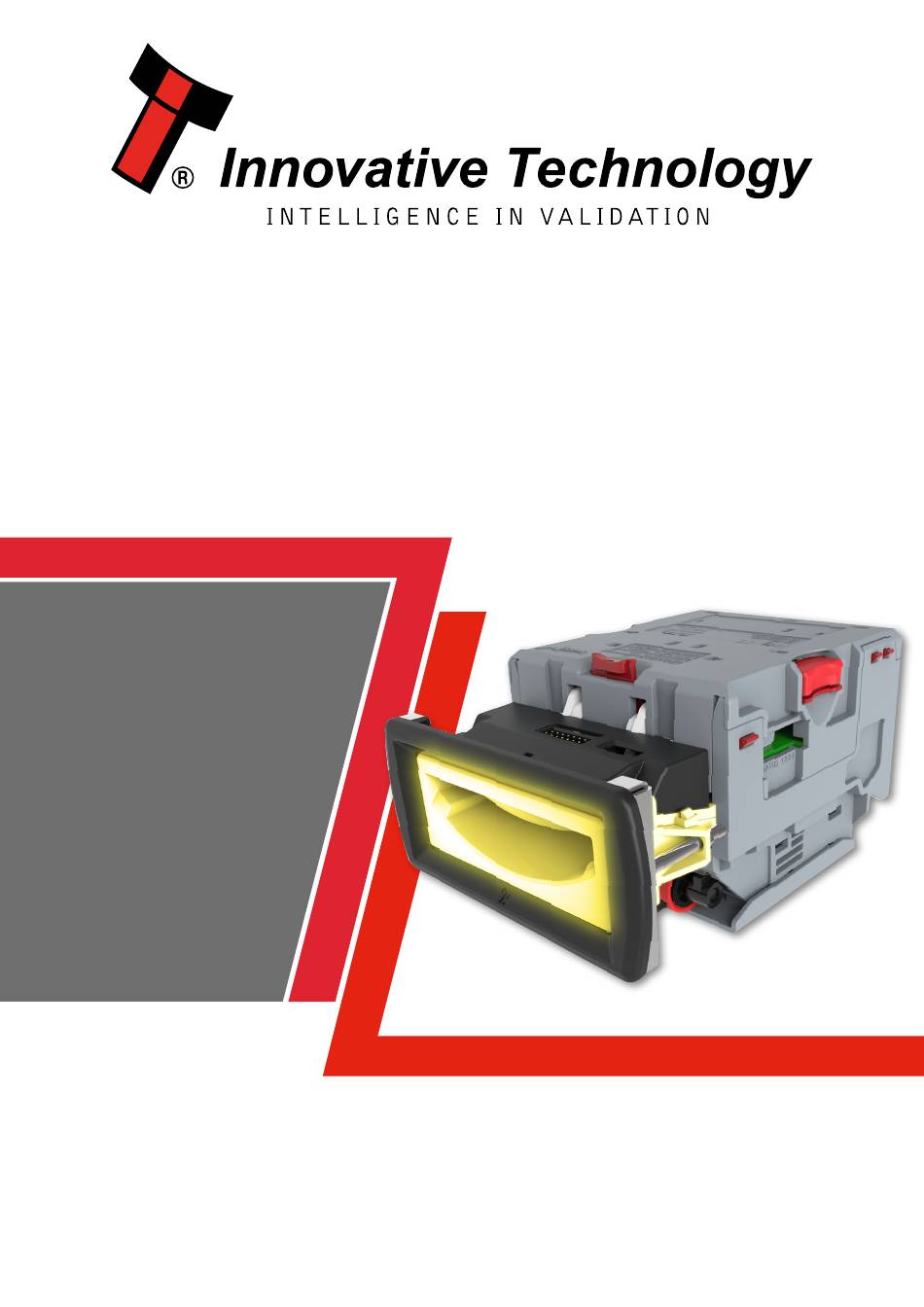

  • Page 1 NV10 Family [GA02116] USER MANUAL Copyright © Innovative Technology Ltd 2018...

  • Page 2: Table Of Contents

    Switching to Programming Mode (SSP) ....................18 5.4.1.5 Programming the device ........................18 5.4.2 DA3 ............................... 20 5.4.2.1 General Description ..........................20 Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 1 of 80...
  • Page 3 6.8.5 Low Power Mode .......................... 49 6.8.6 Credit Hold Function ........................49 ............................49 SCROW ONTROL 6.10 IF15 I ............................. 50 NTERFACE Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 2 of 80...
  • Page 4 11.6 ....................... 77 OWER IMING IAGRAM 11.7 ST P PCN ..........................78 ROCESSOR 11.7.1 NV10USB+ ............................. 78 11.8 ........................80 AMING ONVENTION Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 3 of 80...

  • Page 5: Document Introduction

    Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found on the ITL website. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product. Innovative Technology Ltd shall have the sole discretion whether to repair or replace, and any replacement product supplied may be new or reconditioned.

  • Page 6: Product Safety Information

    1.6 Disclaimer Innovative Technology Ltd is not responsible for any loss, harm, or damage caused by the installation and use of this product. This does not affect your local statutory rights.
  • Page 7 Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž • Sledovaný stupeň znečištění je: 2 • Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 6 of 80...

  • Page 8: Product Introduction

    • Proven field reliability • Future proof • One build standard for Global Applications 2.3 Typical Applications • Amusement • Vending 2.4 Component Overview Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 7 of 80...

  • Page 9: Bezel Options

    Standard Bezel technology.com/de/shop/bezels/nv10- (82mm) standard-bezel-detail http://www.innovative- NV10 USB/+ PA00266 technology.com/de/shop/bezels/nv10- Extended Bezel extended-bezel-detail NV10 USB/+ http://www.innovative- 66mm Width technology.com/shop/bezels/nv10- PA00267 Extended Bezel 66mm-width-extended-bezel-detail Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 8 of 80...
  • Page 10 NV10 FAMILY USER MANUAL << Back to Contents http://innovative- technology.com/it/shop- NV10 USB/+ it/bezels/nv10-usb-rainbow-bezel- PA01174 Rainbow Bezel detail (82mm) Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 9 of 80...

  • Page 11: Technical Data

    3.2 Weight • Validator 0.55 kg 3.3 Environmental Requirements Environment Minimum Maximum Temperature +3°C / 37°F +50°C / 122°F Humidity 95% Non-condensing Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 10 of 80...

  • Page 12: Power Requirements

    The minimum and maximum dimension for media IN are as follows: Note Sizes Minimum Maximum Width 60 mm 85 mm Length 115 mm 170 mm Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 11 of 80...

  • Page 13: Mechanical Installation

    • NV150 • NV200 Innovative Technology Ltd. has a policy of continuous product improvement. Due to design changes older model or product bezels (and cashboxes) may not be compatible with the NV10 USB/+. However, new product deliveries always include a bezel (and cashbox if equipped) that must be used.

  • Page 14: Software Compatibility

    NV10 USB/+. For further details on Re-programming the NV10 USB/+ refer to 5.4.1.5 Caution! Older versions of Validator Manager may not support the NV10! Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 13 of 80...

  • Page 15: Bezel Removal

    NV10 USB/+ is being installed Ensure bezel is secured to and transported inside a host machine. validator Press the indicated button Pull the bezel downwards Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 14 of 80...
  • Page 16 NV10 FAMILY USER MANUAL << Back to Contents 3. Pull the bezel away from the NV10 USB/+ frame Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 15 of 80...

  • Page 17: Free Fall Cashbox Advice

    NV10 FAMILY USER MANUAL << Back to Contents 4.3 Free Fall Cashbox Advice Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 16 of 80...

  • Page 18: Software Installation And Configuration

    NV10 USB/+. For detailed instructions please refer to the relevant manual package supplied with the software or contact support@innovative-technology.com. 5.2 Software Downloads All software from Innovative Technology Ltd is free of charge and can be downloaded from the website www.innovative-technology.com/support/secure- download once registered and logged in.

  • Page 19: Dataset/Firmware Programming

    This will scan all active com ports for a unit, if your NV10 USB/+ fails to connect please ensure the correct drivers are installed and the unit is in SSP. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 18 of 80...
  • Page 20 When completed the unit will restart and a pop up box will appear saying Device Programming Complete. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 19 of 80...

  • Page 21: Da3

    This method is a match download so only a dataset with a matching denomination code will be programed onto the validator. E.g. GBP06615 -> GBP06620. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 20 of 80...

  • Page 22: Smart Update

    All the details of DA3 using can be found in the DA3 User Manual Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 21 of 80...

  • Page 23: Configuration Card

    LEDs will flash at a fast rate while programming takes place. After completion of programming, the validator will reset. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 22 of 80...

  • Page 24: Ssp Configuration Card Options

    When using the configuration card to set SSP mode, the following options are available: Note inhibits – fill in the boxes to inhibit notes Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 23 of 80...

  • Page 25: Cctalk Configuration Card Options

    CRC checksum. Fill in this box to use simple 8 bit checksum se No escrow t/out – fill in this box to disable the escrow timeout Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 24 of 80...

  • Page 26: Mdb Configuration Card Options

    When using the configuration card to set MDB mode, the following options are available: Note inhibits – fill in the boxes to inhibit notes Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 25 of 80...

  • Page 27: Parallel Mode Configuration Card Options

    Binary – fill in this box to enable binary output mode No escrow t/out – fill in this box to disable the escrow timeout Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 26 of 80...

  • Page 28: Pulse Mode Configuration Card Options

    Pulse mode but the NV10 USB/+ will always be enabled. It is not necessary to set the inhibits to enable the NV10 USB/+. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 27 of 80...

  • Page 29: Sio Mode Configuration Card Options

    NV10 USB/+ will start up in the disabled state No escrow t/out – fill in this box to disable the escrow timeout Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 28 of 80...

  • Page 30: Configuration Button

    When in programming mode, do not turn off the power before the operation is complete as this will make the unit unusable. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 29 of 80...

  • Page 31: Configuration Button Functions

    Bezel will flash – Press twice (within Shows current interface Powered ON see the flash count half a second) type table below Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 30 of 80...
  • Page 32 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 31 of 80...

  • Page 33: Protocols And Interfacing

    Secure Protocol (SSP) and Encrypted Smiley ® Secure Protocol (eSSP) are field proven secure interfaces specifically designed by Innovative Technology Ltd. to address the problems by cash handling systems in gaming machines. Problems such as acceptor swapping, re-programming acceptors and line tapping are all addressed.

  • Page 34: Pin Assignments

    + Vin Power +12VDC Supply Power 0V Supply (GND) Caution! +12VDC and 0V (GND) must always be connected, also when using USB connections. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 33 of 80...

  • Page 35: Example Drawings

    << Back to Contents 6.2.3 Example Drawings The drawings below highlights how to connect the NV10 USB/+ to an SSP or eSSP host machine using available cables and interfaces from Innovative Technology Ltd. For cable drawings please refer to 11.1. ITL Part...

  • Page 36: Cctalk

    USB Data - USB Vcc Power USB Vcc (+5VDC) Factory Use Only Do not connect + Vin Power +12VDC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 35 of 80...

  • Page 37: Cctalk® Des Encryption

    NV10USB/+. Caution! +12VDC and 0V (GND) must always be connected, also when using USB connections. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 36 of 80...

  • Page 38: Mdb

    Tx, transmit (ttl levels) Output Serial Data Rx, receive (ttl levels) Input Serial Data + Vin Power +12/110VDC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 37 of 80...

  • Page 39: If5 Interface

    The IF5 allows the NV10USB/+ to operate with MDB machines no matter the voltage (24/34/48). A link to the IF5 can be found below. Webshop Link: http://innovative-technology.com/shop/accessories/if5-mdb-voltage- converter-detail Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 38 of 80...

  • Page 40: Parallel

    Not Used USB - Data Not Used USB Vcc Power Not Used Factory Use Only Do not connect + Vin Power +12VDC Supply Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 39 of 80...

  • Page 41: Inhibit Control

    SSP which gives more security along the length of the cable. The IF10 should be mounted close to the host machine control board where the IF10 converts to the parallel connection. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 40 of 80...

  • Page 42: Binary

    = 2 decimal) will be active low for 100 ± 3 ms. Caution! Binary is an unsecure interface and should not be used for new developments! Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 41 of 80...

  • Page 43: Pinout

    (GND) the Master Inhibit is set and the NV10 USB/+ is disabled. 6.6.4 Busy Control This is a general-purpose busy signal. It is active low (Pin 9) while the NV10USB/+ is in operation. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 42 of 80...

  • Page 44: Low Power Mode

    SSP which gives more security along the length of the cable. The IF9 should be mounted close to the host machine control board. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 43 of 80...

  • Page 45: Sio And Si2

    -SIO 9600 Baud (Disabled at Start up) - A software enable must be sent to enable the validator. The data is formatted as follows: 1-start bit 8-data bits 2-stop bits 300 baud. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 44 of 80...
  • Page 46 NV10 FAMILY USER MANUAL << Back to Contents The NV10USB/+ receives/transmits the following Event codes: Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 45 of 80...
  • Page 47 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 46 of 80...

  • Page 48: Pinout

    Transaction examples: 6.7.2 Pinout Name Type Description Vend 1 Output Credit Output Pulse Stream + Vin Power +12VDC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 47 of 80...

  • Page 49: Pulse

    Not Used USB Vcc Power Not Used Factory Use Only Do not connect + Vin Power +12VDC Supply Power 0V Supply (GND) Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 48 of 80...

  • Page 50: Inhibit Control

    If no confirmation of vend is received then the note will be returned to the customer after 30 seconds. For timing diagrams please refer to section 11.5 of this manual. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 49 of 80...

  • Page 51: If15 Interface

    SSP which gives more security along the length of the cable. The IF15 should be mounted close to the host machine control board where the IF15 converts to the pulse connection. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 50 of 80...

  • Page 52: Routine Maintenance

    7.3 Recommended Belt Changing Intervals Innovative Technology Ltd recommends to change the drive belts every month or as required. Dirt, dust or other residue leads to bad note acceptance and other performance degradation. Please refer to for comprehensive belt changing instructions.

  • Page 53: First Level Support

    NV10 USB/+ front bezel will flash in a particular sequence. A summary of the Bezel Flash Codes for the NV10 USB/+ is shown below: Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 52 of 80...

  • Page 54: Checking Power And Communication Connections

    2. Click the red configuration button present on the side of the unit twice. 3. Monitor the quantity of flashes made by the front bezel and check flash codes below: Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 53 of 80...

  • Page 55: Second Level Support

    NV10 USB/+ validator. 9.2 Fault Finding Flow Chart Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 54 of 80...
  • Page 56 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 55 of 80...

  • Page 57: Cleaning The Nv10

    CAUTION: WHEN CLEANING THE “RECESSED” FRONT SENSOR, USE A SMALL SOFT BRUSH OR COTTON WOOL BUD. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 56 of 80...
  • Page 58 Dirt, dust or other residue causes bad note acceptance rates and other performance degradation. The recommended cleaning interval is once a month! Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 57 of 80...

  • Page 59: Belt Cleaning

    4. Repeat steps 3 and 4 until all dust and debris has been removed from both belts. 5. Repeat step 3 using a DRY lint free cloth to remove any excess moisture. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 58 of 80...

  • Page 60: Changing The Drive Belts

    3. After the bezel has been removed, simultaneously press the two release buttons on the side of the unit and separate the two halves. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 59 of 80...
  • Page 61 6. Take the drive belt out of both wheels and pass it over the side. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 60 of 80...

  • Page 62: Re-Initialisation Of The Sensors

    And press on the lower left green button “initialise”. 3. Press on the initialise sensor button on the bottom of the screen. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 61 of 80...
  • Page 63 5. Wait for the software to gather Picture 5 – the unit data. Description 5 6. When motors run continuously, insert Configuration paper. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 62 of 80...
  • Page 64 NV10 FAMILY USER MANUAL << Back to Contents 7. When the initialisation process is complete click on ok to check results. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 63 of 80...
  • Page 65 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 64 of 80...

  • Page 66: Compliances And Approvals

    All the information provided in this statement of compliance is accurate to the best our knowledge, as of the date of this publication being issued. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 65 of 80...
  • Page 67 Electronic Equipment by handing it over to an approved re- processor, or by returning it to the original equipment manufacturer for reprocessing. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 66 of 80...

  • Page 68: Appendix

    NV10 FAMILY USER MANUAL << Back to Contents 11 APPENDIX 11.1 Cable Drawings 11.1.1 CN214 Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 67 of 80...

  • Page 69: Cn174

    NV10 FAMILY USER MANUAL << Back to Contents 11.1.2 CN174 Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 68 of 80...
  • Page 70 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 69 of 80...

  • Page 71: Cn392

    NV10 FAMILY USER MANUAL << Back to Contents 11.1.3 CN392 Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 70 of 80...

  • Page 72: Switching To Programming Mode (Ssp)

    PC via a CN392 cable, DA2 adapter or connection to a DA3. Pressing and holding the button again will return the NV10 USB/+ to its original interface. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 71 of 80...

  • Page 73: Des Trusted (Safe) Mode

    This is done by pressing in the red clips on the top and pulling away the lower half Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 72 of 80...
  • Page 74 Plug the validator back to the host and your validator should now be installed and configured. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 73 of 80...

  • Page 75: Escrow Control

    30 seconds. If the host machine itself aborts the transaction by setting the corresponding inhibit input high, the note is returned immediately. The sequence of Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 74 of 80...

  • Page 76: Escrow Timing Diagram

    Binary modes. This allows the Validator to hold onto the note once accepted, and only stack the note into the cash box when the host machine confirms that the vend operation has been completed. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 75 of 80...
  • Page 77 In the event of a note being forcibly removed from the mouth of the NV10 USB/+ during the 30 second interval, the NV10 USB/+ will go out of service for 45 seconds. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 76 of 80...

  • Page 78: Low Power Mode Timing Diagram

    After the credit is issued the busy line goes high and approximately 1 second after the busy line goes high (Time B) the NV10USB/+ goes back into low power mode. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 77 of 80...

  • Page 79: St Processor Pcn

    NV10 FAMILY USER MANUAL << Back to Contents 11.7 ST Processor PCN 11.7.1 NV10USB+ Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 78 of 80...
  • Page 80 NV10 FAMILY USER MANUAL << Back to Contents Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1 Page 79 of 80...

  • Page 81: File Naming Convention

    Validator can be selected, this is especially relevant due to the recent move to the ST processor. Below is an explanation of the file naming convention as well as information on the file names which relate to the NV10 family. Copyright © Innovative Technology Ltd 2016 Doc: GA02116 - NV10 FAMILY USER MANUAL Version:1.1...
