User Manual NV200 Spectral Range

<< Back to Contents

9.5 Clearing a Jam from the Bunch Note Feeder

In case of a jam event in the Bunch Note Feeder (BNF), follow the instructions below to

clear the note paths. Ensure the power is removed from the unit before

attempting to clear a jam:

1) Remove the BNF bezel

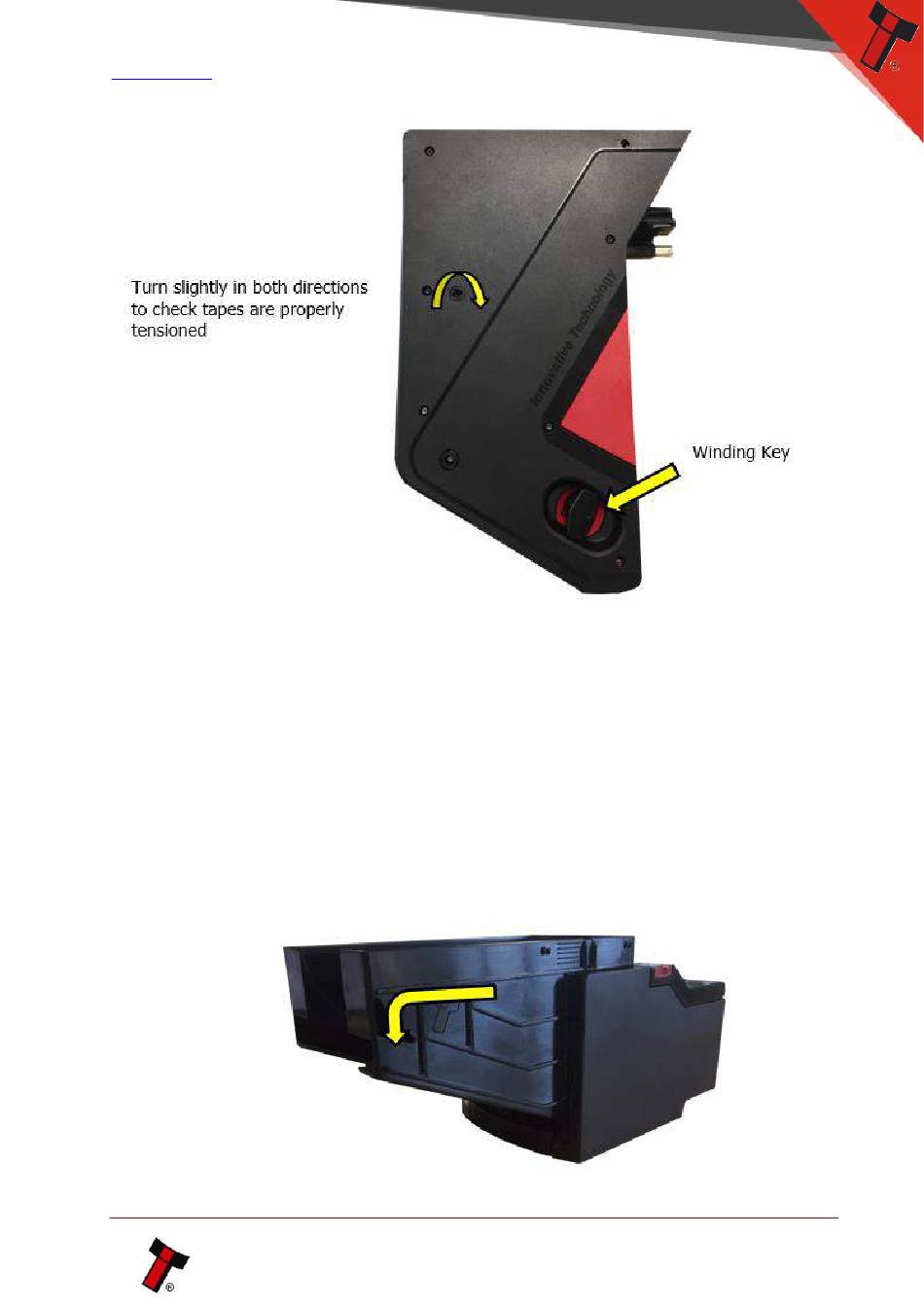

Pull the bezel forward and down as shown in the picture to unclip the bezel from

the front of the BNF. When it is unclipped, pull forward to fully remove the

bezel:

Doc: GA02119 User Manual NV200 Spectral Range

Version: 2.2

Page 85 of 113
