6.4 SSP and eSSP

6.4.1 General Description

Smiley ® Secure Protocol (SSP) and Encrypted Smiley
proven secure interfaces specifically designed by Innovative Technology Ltd. to address
the problems by cash handling systems in gaming machines. Problems such as acceptor
swapping, re-programming acceptors and line tapping are all addressed. This interface
is recommended for all new designs. Innovative Technology Ltd. provides full SDK
packages upon request including Interface Specification, Implementation Guide as well
as source code examples for C++, C#.NET and Linux. Contact
technology.co.uk for further information.

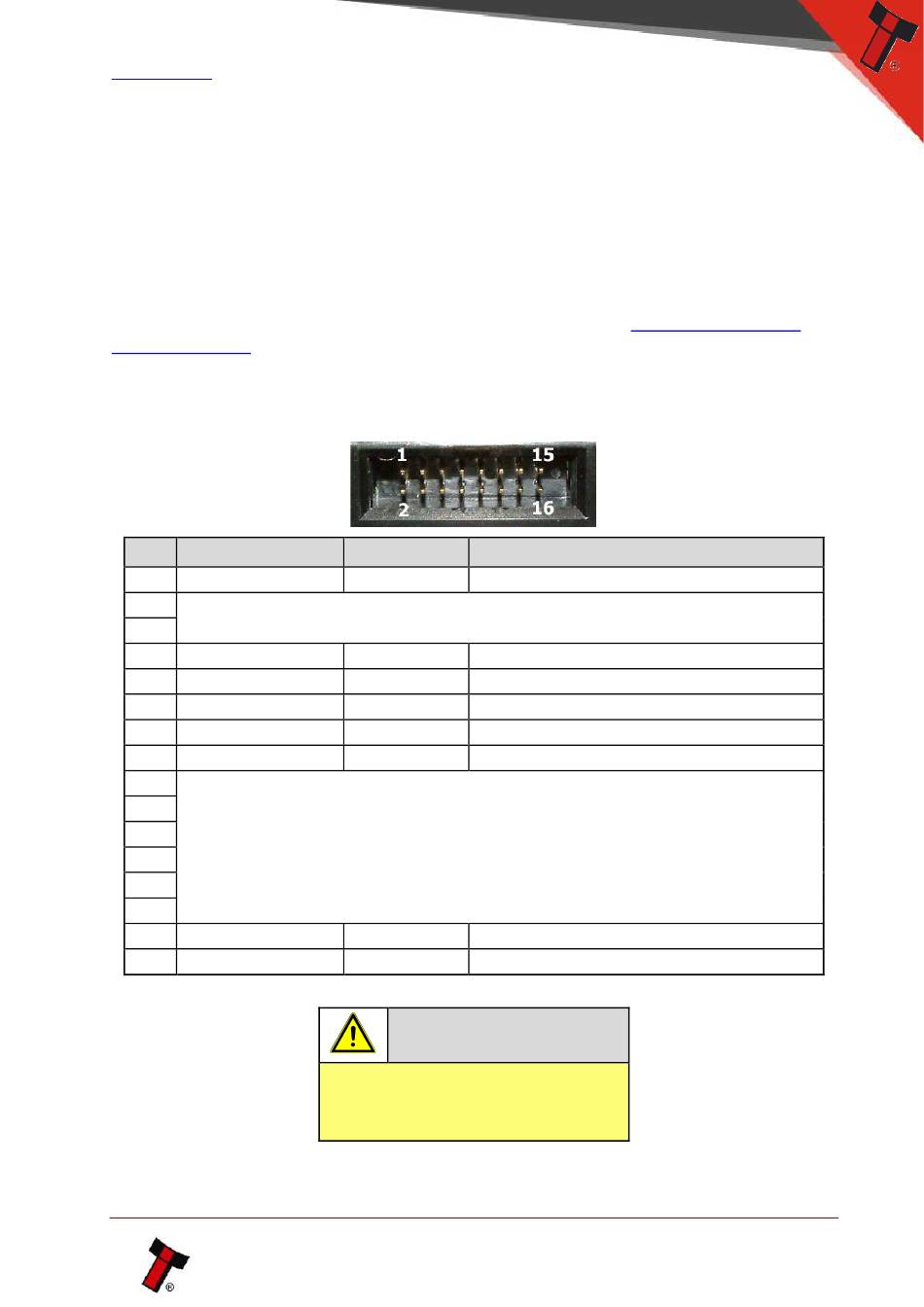

6.4.2 Pin Assignments

Pin Name
1 TxD TTL
2
3
4 TxD TTL
5 RxD TTL
6 TxD RS232
7 RxD RS232
8 TxD TTL
9
10
11
12
13
14
15 + Vin
16 0V
Copyright © Innovative Technology Ltd 2019
Type Description
Output Serial Data Out (Tx)
Factory Use Only – DO NOT CONNECT
Output Connect to Pin 1 for Smart Ticket
Input Serial Data In (Rx)
Output Serial Data Out (Tx)
Input Serial Data In (Rx)
Input Connect to Pin 5 for Smart Ticket
Factory Use Only – DO NOT CONNECT
Power +12/24VDC Supply
Power 0V Supply (GND)
Caution!
+12VDC/+24VDC and 0V (GND)
must always be connected, also
when using USB connections.
® Secure Protocol (eSSP) are field
support@innovative-
