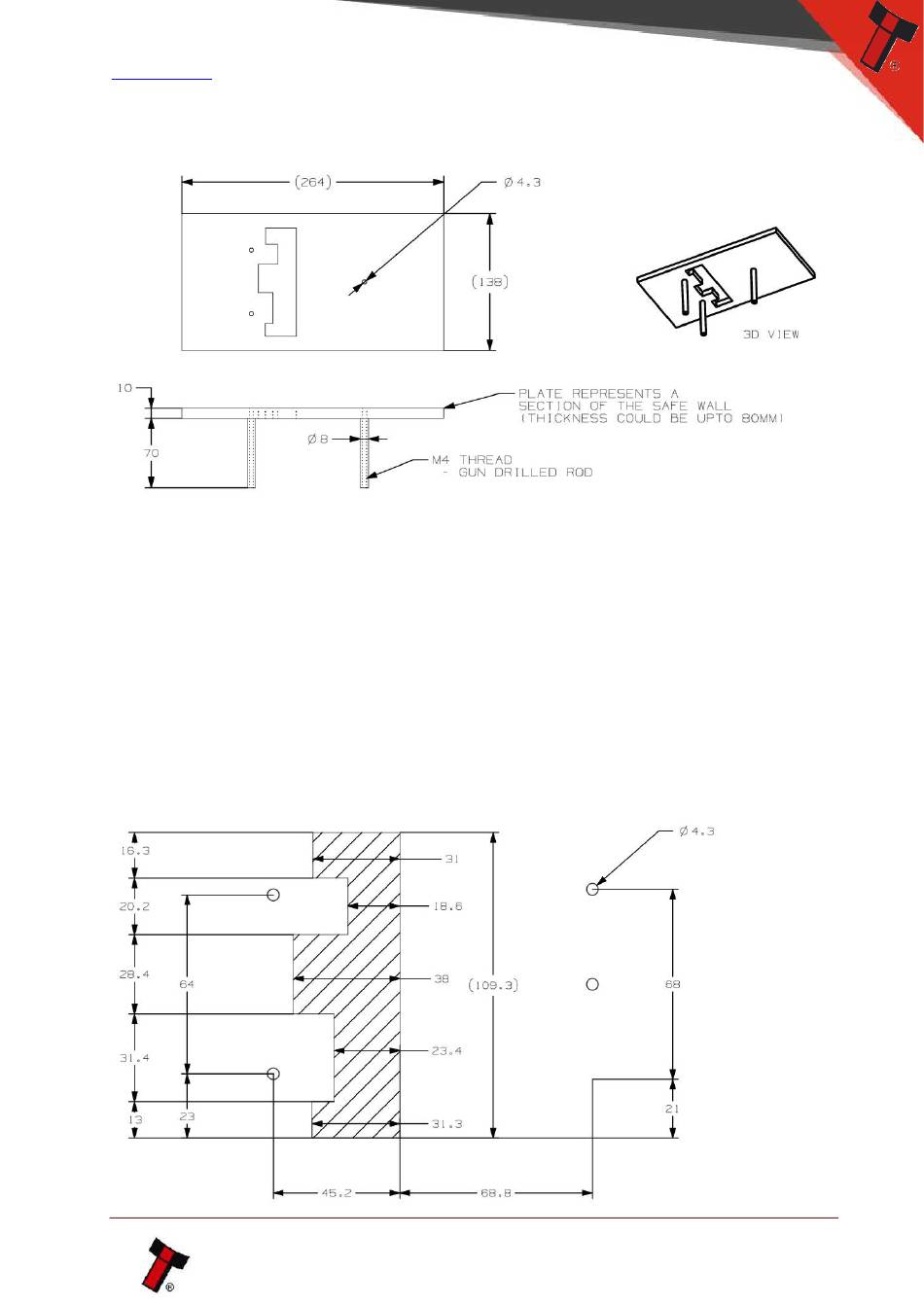

This example suits a nominal 10mm thick safe wall.

It is critical the top and bottom plates of the safe interface are aligned in X, Y and Z

directions to +/- 0.5mm.

Here mounting is achieved by 3x internally threaded 8 mm rods (PA03829) – the length

is 80mm minus wall thickness (here 80 - 10 = 70).

The top plates and bottom plates can be attached simply with 6xM4 pan-head screws.

Additionally to the above a brace should be fitted to the bottom of the NV200 Spectral

cashbox chassis.

Below profile recommended for sample mounting method above.

Doc: GA02119 User Manual NV200 Spectral Range

Version: 2.2

Page 42 of 113
