4.9 Safe Interface Mounting

4.9.1 Safe Interface

The Safe Interface module consists of three main components. The Outer Safe Docking
Plate, the Inner Safe Docking Plate and the Note Transport (80mm).
When mounting the Safe Interface, it is vital that the Outer and Inner Docking plates
line up exactly. If they are out of alignment the Note Transport will not dock correctly.
See Section 4.10.4 for a dimensional drawing of the Safe Interface including mounting
points.
1) Attach the Inner Docking Plate
The Inner Docking Plate attaches to the top of the cashbox chassis. The cashbox
is mounted inside the safe.

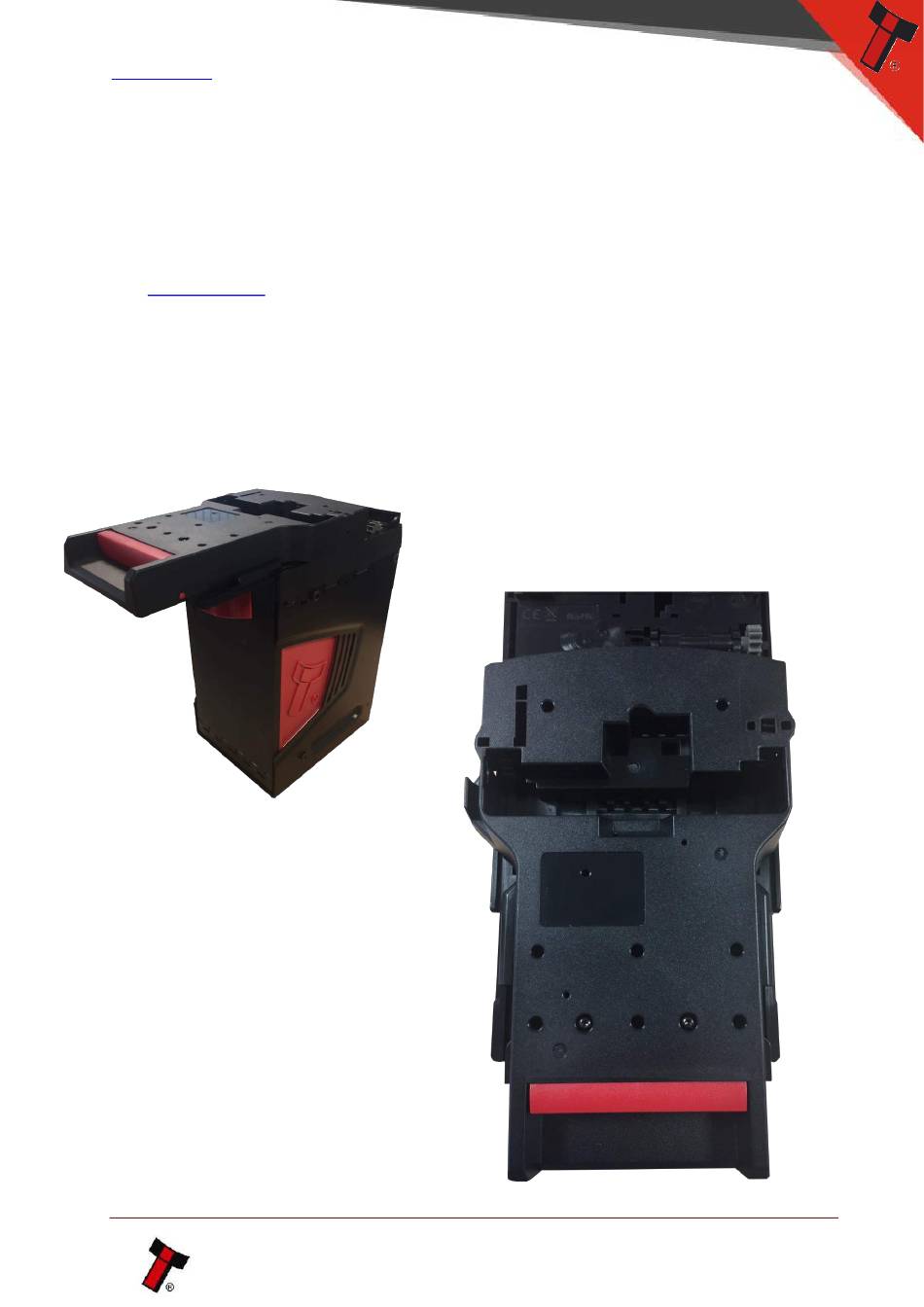

First, position the Inner Docking Plate on top of the cashbox chassis. It will
extend slightly forward of the chassis initially as per the picture below. Ensure
that the locating tabs are aligned with the slots on the chassis:
