NV200 TEBS

User

Manual

GA02031

Table of Contents

Need help?

Do you have a question about the NV200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innovative Technology NV200

Page 2: Table Of Contents
4.4.2 SSP Update 4.4.3 Updating through Data Flash Cards or SD Cards Technical Information 20 Communication Interfaces NV 200 SSP Interface: DIP Switches 23 Spare Parts ITL Drawings and Schematics 24 Part Numbers 28 Contact Copyright © Innovative Technology Ltd 2015 GA02031...
Page 3: Manual Introduction
Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found in every section of this manual set. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product.
Page 4: Product Safety
NV200 TEBS User Manual Innovative Technology Ltd shall not be liable under this warranty if it’s testing and examination disclose that the alleged defect in the product does not exist or was caused by the customer's or any third person's misuse, neglect, improper installation or testing, unauthorized attempts to repair, or any other cause beyond the range of the intended use.
Page 5: Product Introduction

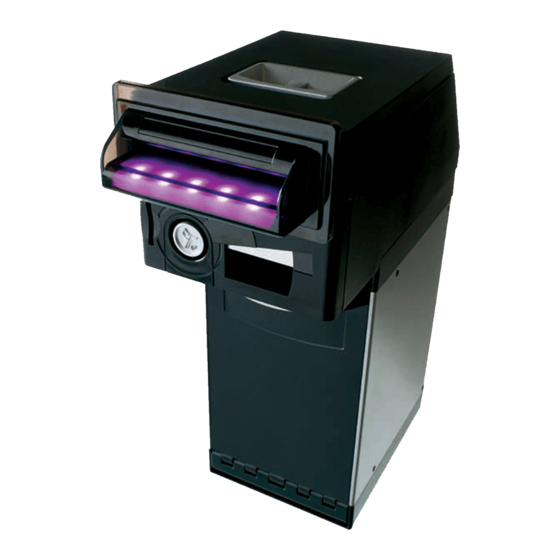

TEBS Cashbox Chassis The NV200 with TEBS is a device that can accept, validate and store from 850 up to 1000 street grade bank notes of mixed denominations (depending on currency). 2.1 Features The NV200 validator with TEBS has many innovative features, including: ...
Page 6: Typical Applications
NV200 TEBS User Manual 2.2 Typical Applications The NV200 validator with TEBS can be used in a variety of situations where high security and high volume bank note acceptance and validation are needed. Some typical applications are:  AWP and SWP applications ...
Page 7: Installation
NV200 TEBS User Manual 3 INSTALLATION 3.1 Assembly and Fitting Instructions Installing the NV200 is a simple operation, described in the steps outlined here: Head Remove the unit from the box and release remove all plastic wrapping, lift the catch top of the NV200 up to reveal the note path.
Page 8: Bezel Removal And Replacement
Check bezel fixing screw length before installation. The bezel on the front of the NV200 validator has been designed to be removed and refitted very easily. To remove or refit the bezel, access to the note path is required as described earlier in this section –...
Page 10: Ssp Interfacing
Description Quantity TEBS Tamper evident bag system IF17 USB Interface Converter / WR147 SMART Payout to NV200 Adapter CN397 SMART Payout to Host Cable CN389 Hopper Interface Power Cable CN214 USB A to B Cable Assembly Table 1 – Content Table ITL products SSP SETUP OPTION 01 Copyright ©...
Page 11 This setup option shows how to connect a TEBS and a SMART Coin System into a host machine via a USB COM port by using available ITL cables and interfaces. Drawing 2 – SSP SETUP OPTION 02 Copyright © Innovative Technology Ltd 2015 GA02031...
Page 12 IF17 USB Interface Converter / CN398 Dual eSSP Interface Cable Assembly WR147 SMART Payout to NV200 Adapter CN389 Hopper Interface Power Cable CN214 USB A to B Cable Assembly Table 2 – Content Table ITL products SSP SETUP OPTION 02...
Page 13: Field Servicing
NV200 unit. You can clean the NV200 note path with the head unit still fitted to the chassis, although you may find it easier to remove the head from the chassis assembly. To remove the NV200 head unit, first...
Page 14 Do not use any lubricants. Do not attempt to disassemble the validator WARNING! head – trying to do this could cause personal injury and will damage the unit beyond repair. Do not try to disassemble Copyright © Innovative Technology Ltd 2015 GA02031...
Page 15: Fault Finding - Flash Codes
The NV200 Validator has inbuilt fault detection facilities. If there is a configuration or other error, the NV200 front bezel will flash in a particular sequence, and a summary of the Bezel Flash Codes for the NV200 is shown below:...
Page 16: What To Do When A Fault Is Identified
Repair/re-assemble the unit 4.2.4.2 The TEBS unit has functioning internal electronics but there is no communication between NV200 head and TEBS  Attempt to use the appropriate TEBS software tool to initiate communications and allow access (Unlock Enable, Key unlock, Withdraw bag) ...
Page 17: Clearing A Jam
If this fails, see 4.2.4.1 The TEBS unit is dead i.e. no comms, no internal electronic control 4.2.4.5 The NV200 is communicating but reports no communications to the TEBS  Remove/replace the NV200 head  Attempt to use the appropriate TEBS software tool to initiate communications and allow access (Unlock Enable, Key unlock, Withdraw bag) ...
Page 18 To clear this type of jam you will need to disconnect the power and then remove the NV200 head. Once you remove the head as explained in the picture below check to see if the note is protruding from the TEBS cashbox. This means the note hasn’t been driven down into the cashbox, this jam can be cleared by winding the drive gears on the left of the unit and slowly pulling the note out.
Page 19 The stacker plate should be approximately 5cm from the home position, now carefully pull the note out from behind the stacker plate and then wind the plate back to its rest position. Replace the cashbox and the unit should initialise as usual. Copyright © Innovative Technology Ltd 2015 GA02031...
Page 20: Unit Update Procedure
4.4.3 Updating through Data Flash Cards or SD Cards The NV200 can also be reprogrammed through the SD slot on the front of the unit; to program a card to update the unit NV Card Utilities has to be used. NV Card Utilities allows the user to create update cards for the NV200 family of products.
Page 21: Technical Information
(NOTE: no cleaning solution is to be used just a damp cloth) Standards & IEC 61249-2-21 Materials for PCBs. Approvals: CE/RoHS/WEEE IEC/UL 60950 Safety (CB Scheme) Notes: Bag capacity can vary dependent on note quality. Copyright © Innovative Technology Ltd 2015 GA02031...
Page 22: Communication Interfaces
16 way connector. regardless of connection type. The first connector is a 16 pin socket used to interface the NV200 to the host machine. The pin numbering of the socket is shown below, as well as an overview of the socket connections: The USB connector is a standard Type ‘B’...
Page 23: Nv 200 Ssp Interface
Ground Do not make any connections to the interface socket WARNING! pins marked ‘Do not connect’ – making connections to these pins could cause severe Risk of unit damage damage to the unit. Copyright © Innovative Technology Ltd 2015 GA02031...
Page 24: Dip Switches
NV200 TEBS User Manual 6.2 DIP Switches The NV200 has a Dual Inline Package (DIP) switch bank that is used to set the various options for the unit. A summary of the switch options are shown below: Switch Option Switch OFF () Switch ON ()
Page 25: Spare Parts
Any commercially available USB 2.0 compliant Type A to Type B cable is suitable – these are available from many different sources. The cable should be electrically shielded and less than 5 metres long. Copyright © Innovative Technology Ltd 2015 GA02031...
Page 26 ITL Part Number Description Details CN414 RS232 to NV200 interface cable Provides 24V supply and RS232 communications to NV200 Comments: Please consult the tables on the next page for pin out and connector information. Copyright © Innovative Technology Ltd 2015 GA02031...
Page 30: Contact
Tel: +44 161 626 9999 Fax: +44 161 620 2090 E-mail: support@innovative-technology.com Web site: www.innovative-technology.com BRAZIL suporte@bellis-technology.com.br CHINA support@innovative-technology.com GERMANY supportDE@innovative-technology.eu SPAIN supportES@innovative-technology.eu UNITED KINGDOM support@innovative-technology.com UNITED STATES OF AMERICA supportusa@bellis-technology.com REST OF THE WORLD support@innovative-technology.com Copyright © Innovative Technology Ltd 2013 AN09-01...
