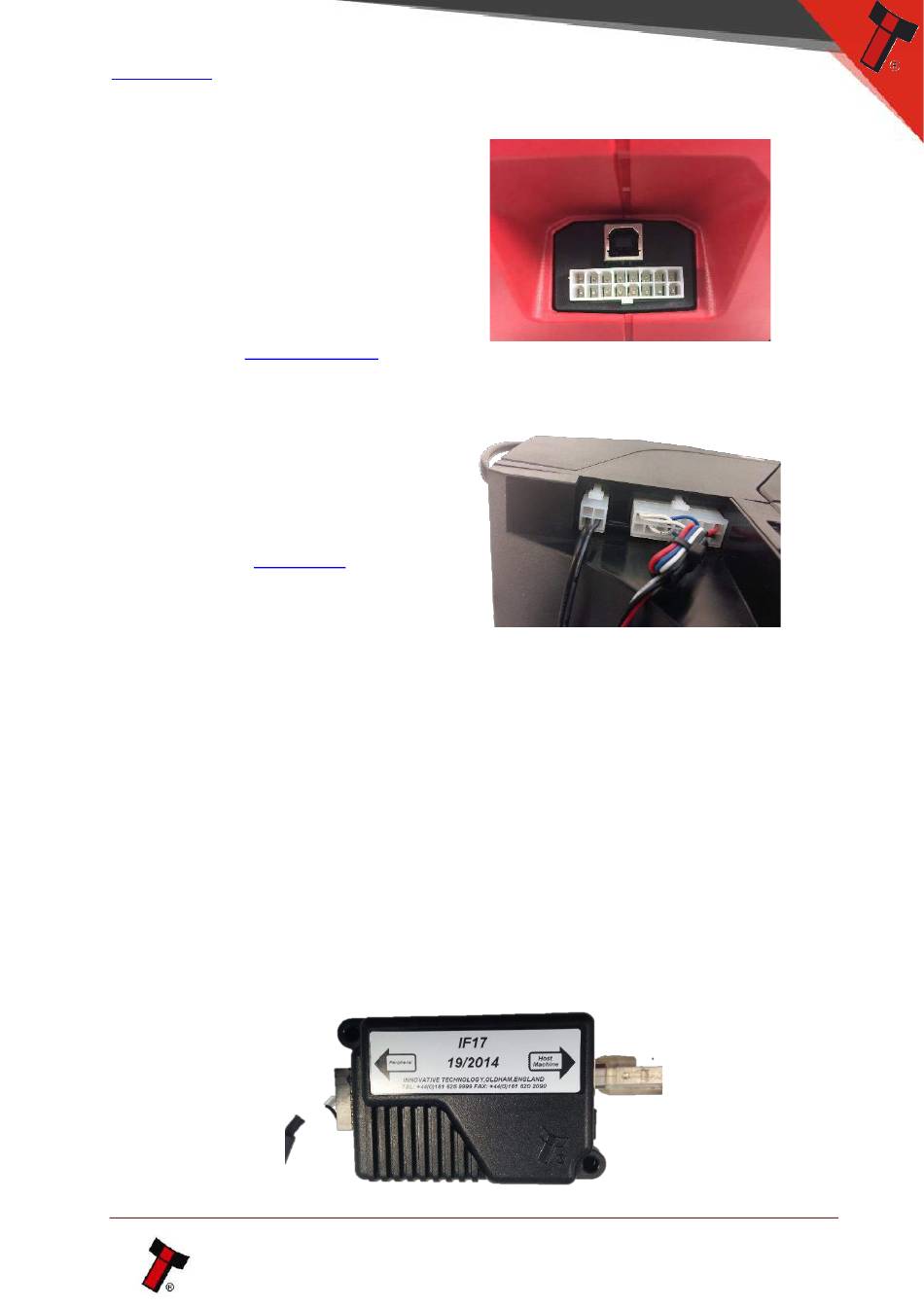

8.3.3 Spectral Payout Connection

The Spectral Payout has a 16-pin molex
connector and a USB Type B socket.
These connectors are located on the
rear of the module at the bottom as
opposed to the top of the module on
the Smart Payout. An adapter cable has
been made to support legacy
machines. See Appendix 11.1.5

8.3.4 Smart Ticket Connection

The SMART Ticket uses the same 16 pin
molex connector as the Spectral Payout,
additional pins need to be populated to
carry communications to both the NV200
Spectral and printer. More details of this
can be found in Section 6.2
An additional 4-pin molex connector is
required for power, both must be
connected before the unit will identify as
a Smart Ticket. When power is supplied
to the ticket the LED on the rear will be
illuminated.

8.3.5 Checking the Supply Voltage

If the power supply seems to be powered and connections to the unit are in place, yet
the unit isn't powered, check the voltage output from the power supply is sufficient and
the polarity is correct. If this isn't the issue replace the cable as it may have been
damaged. Should this not resolve the issue, contact your local repair centre, details of
which can be found on our website.

8.4 Communication with the Host

If there is no communication with the host check the communication cable, typically
this will be the IF17 and the port on the host system.
Ensure the cable is connected to the IF17 correctly, so the connectors are fully seated,
and the USB cable is connected to the computer.
