User Manual NV200 Spectral Range
<< Back to Contents

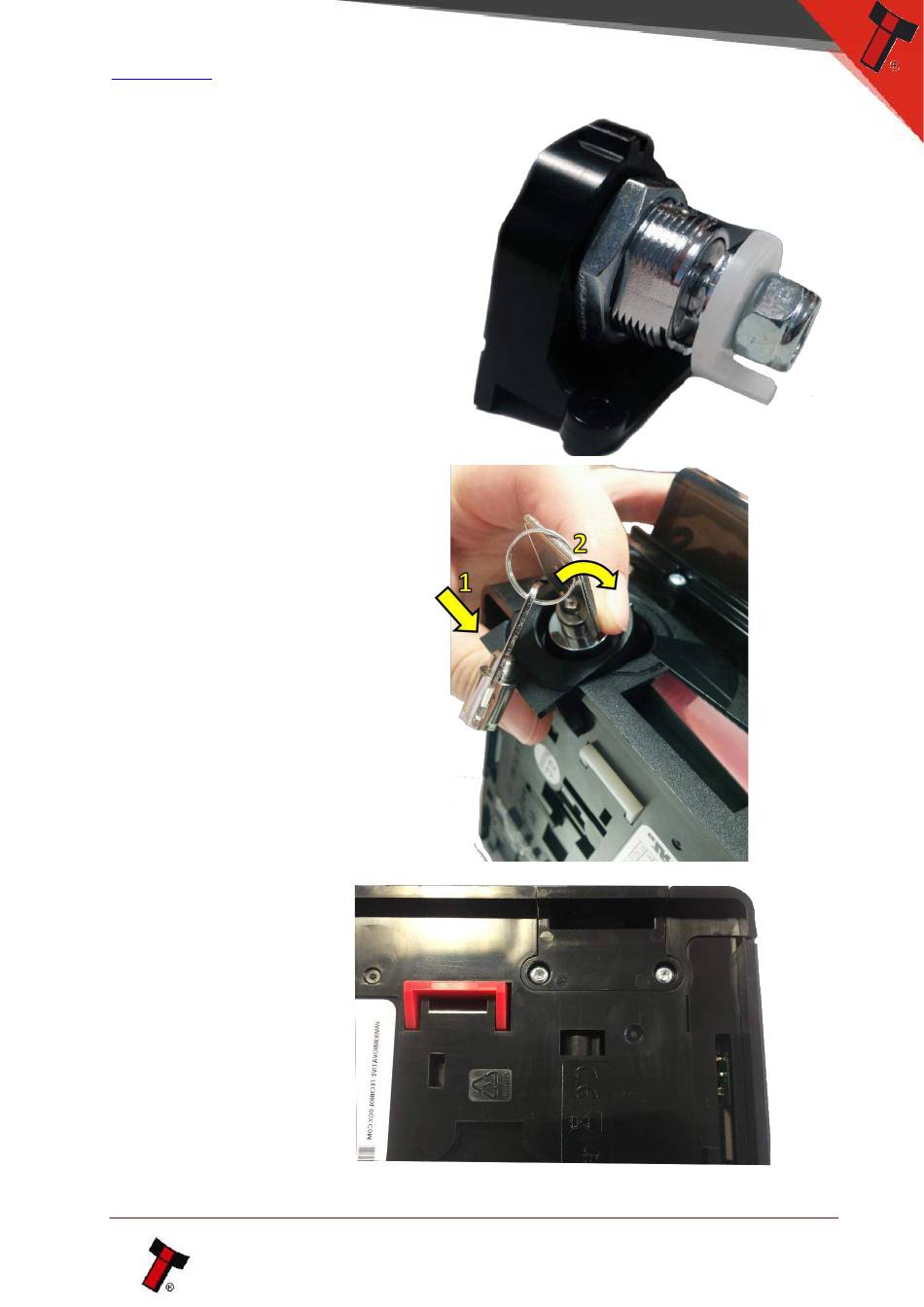

6. Re-attach
Locking Cam
Re-attach the
locking cam onto
the barrel of the
lock and tighten.
7. Fit Assembled
Lock
To fit the
assembled lock into
the unit, place the
bottom in first the
push the top into
position.
8. Screw in place
Turn the unit
upside down and
screw in the 2xT8
screws previously
removed.
Copyright © Innovative Technology Ltd 2019
Doc: GA02119 User Manual NV200 Spectral Range
Version: 2.2
Page 28 of 113
