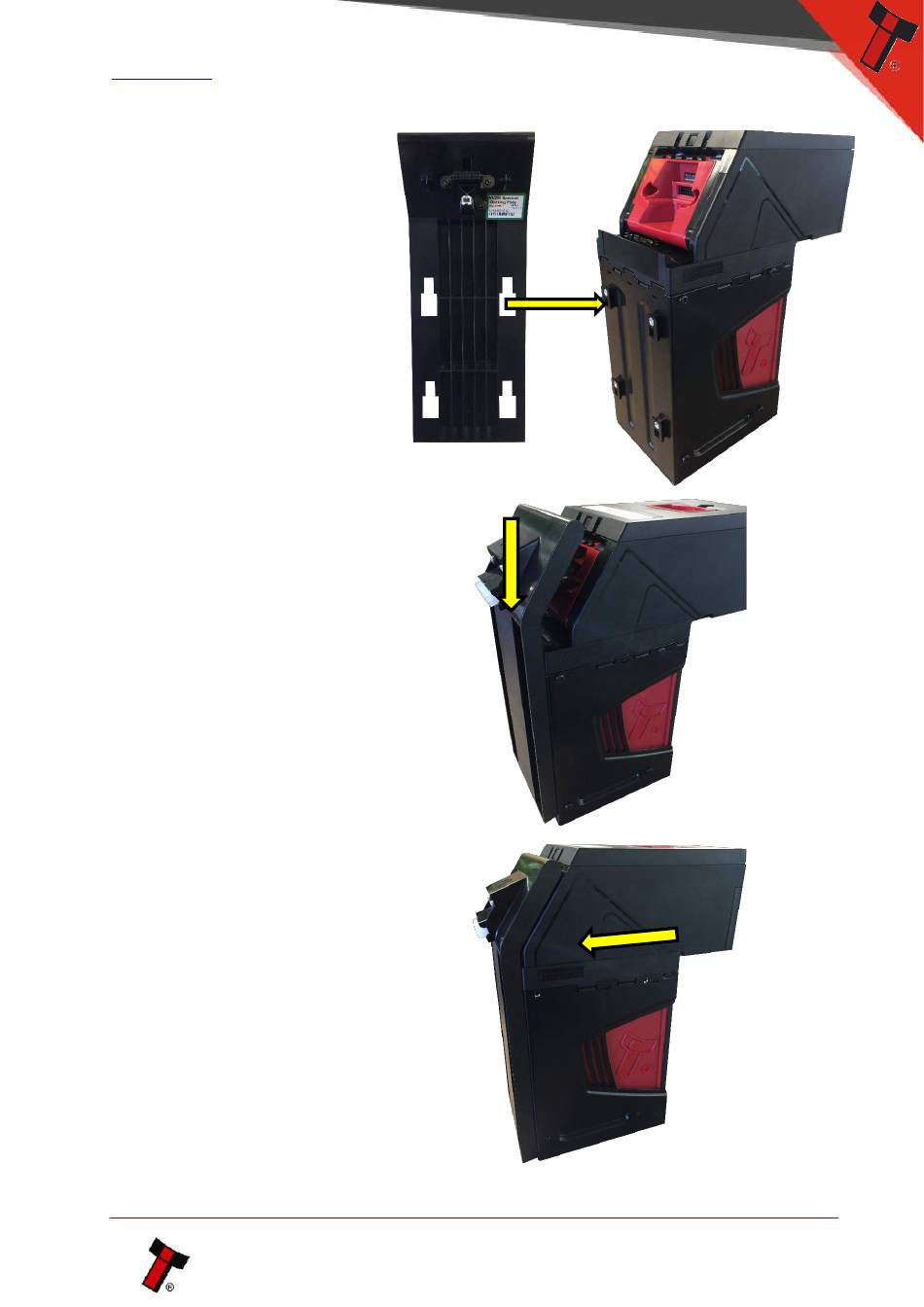

2. Attach the
docking plate
Align the holes in
the docking plate
with the mounting
points on the back
of the NV200
Spectral chassis
3. Lock Docking
Plate in place
Press downwards
on the docking
plate to lock it into
place on the
chassis
4. Dock the NV200
Spectral head
Firmly push the
NV200 Spectral
back along the
chassis until it
locks into place on
the docking plate
connectors.
Copyright © Innovative Technology Ltd 2019
Doc: GA02119 User Manual NV200 Spectral Range
Version: 2.2
