PCI, EISA or GSC Boards
Follow these steps to remove or replace a PCI, EISA or GSC board:
1. Working from the rear of the workstation, unscrew the four captive screws and
pull the EISA Assembly straight out using the handle. See Figure 5–31.

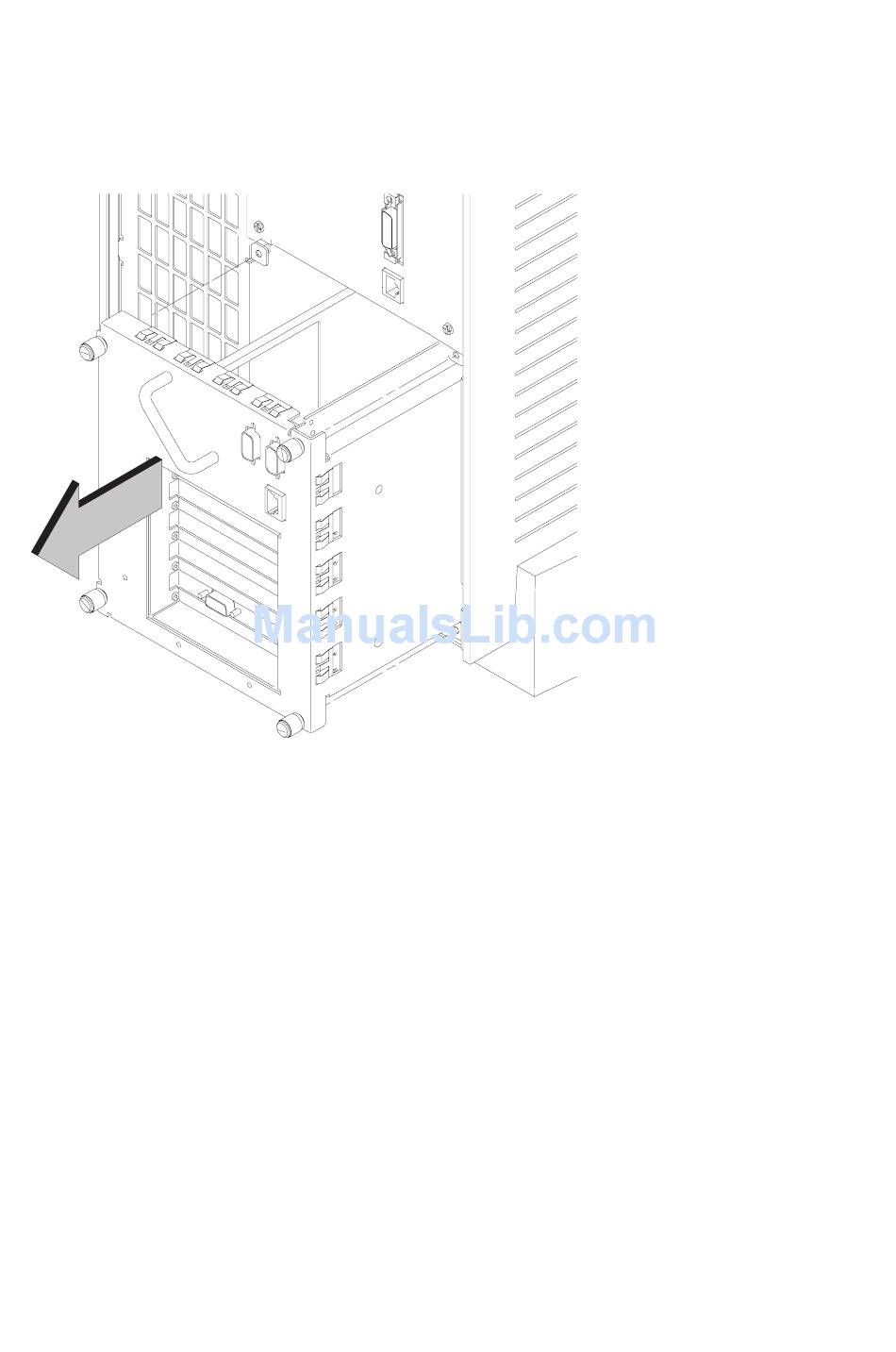

Figure 5–31. Removing the EISA Assembly
5–36
Field Replaceable Units
