Replacing The Cpu Assembly - HP Visualize J2240 Service Handbook

When replacing the CPU Assembly follow these steps:
1. Pull drawer latches to open position.
2. Align the top of the CPU assembly with the guides on the system unit. Then,
align the bottom with the guides and slide the CPU Assembly into the system
unit. See Figure 5–11. See also the installation label on the back of the assembly.

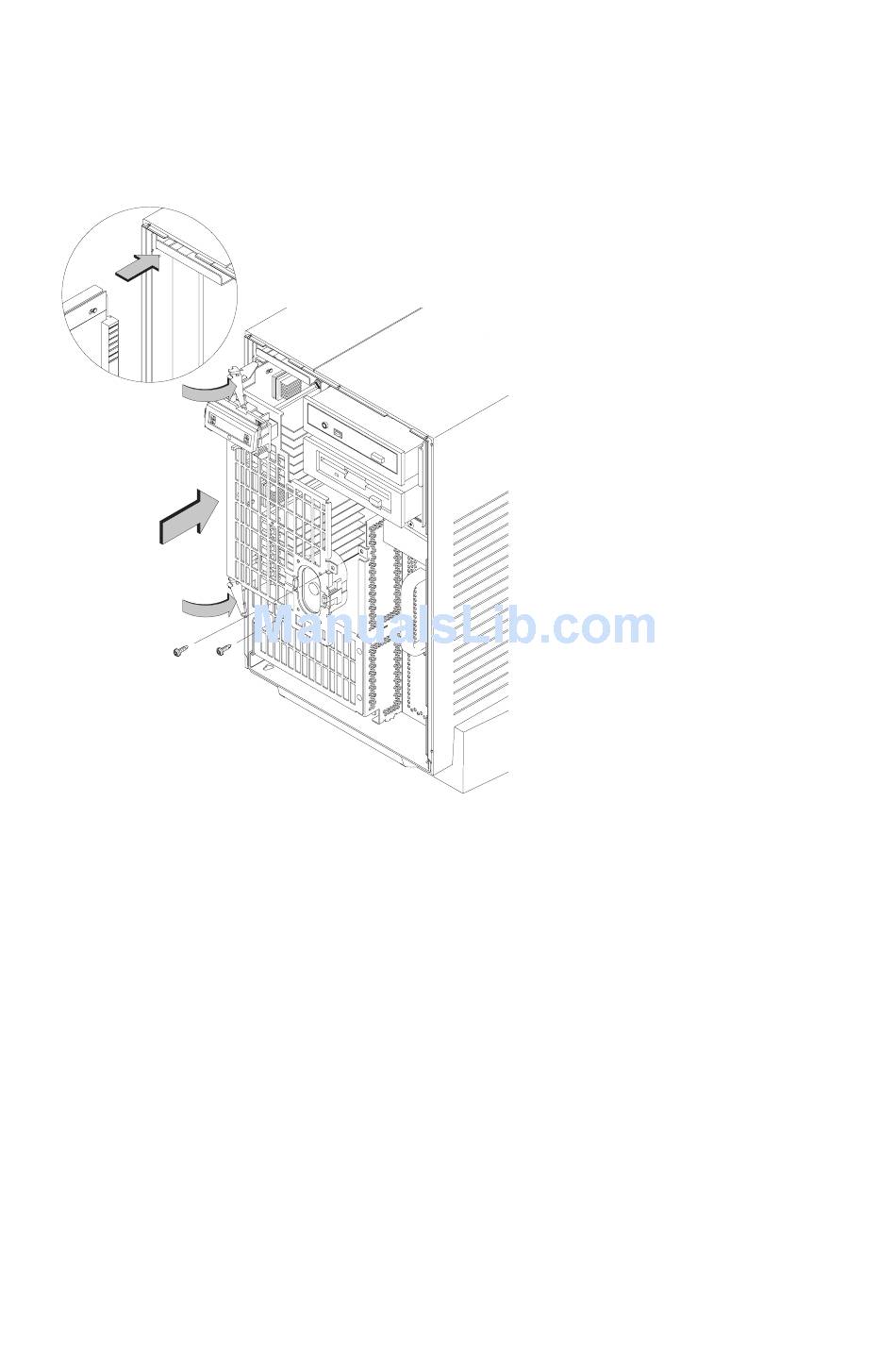

Figure 5–11. Replacing the CPU Assembly
3. Press the drawer latches all the way in and replace the two screws in the center of
the CPU Assembly. The drawer latches must be completely depressed to ensure
proper seating of the connectors.
5–18 Field Replaceable Units
