4. Set the drawer on a flat surface.
5. Disconnect the SCSI and power cables from the back of the drive.
6. Remove the two screws holding the drive mounting bracket in place and slide
the drive and bracket out. See Figure 5–49.

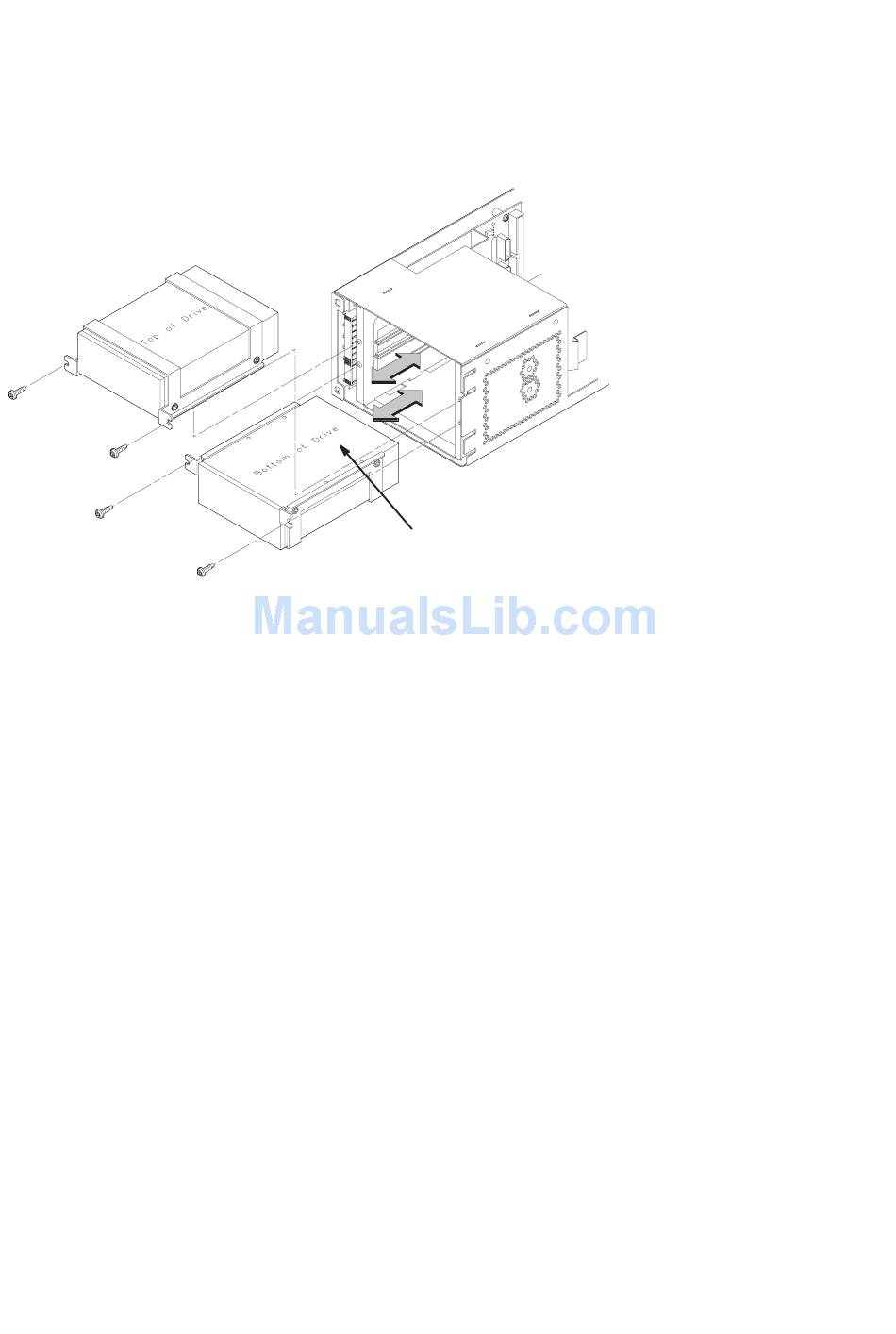

Figure 5–49. Removing the Drives from the Storage Assembly
To replace a hard drive, follow these steps:
1. If the drive that's being installed doesn't already have drive brackets attached,
do this now, using Figure 5–50 as a guide.
Do not over-tighten the screws holding the drive in the storage drawer.
5–54 Field Replaceable Units
PCB side of drive
