Gb, 2.0 Gb, Fast, Wide Differential Disk Drive Jumper Settings - HP Visualize J2240 Service Handbook

J class workstation
Hide thumbs Also See for Visualize J2240:
Table of Contents

Advertisement

Front View
Rear
Front

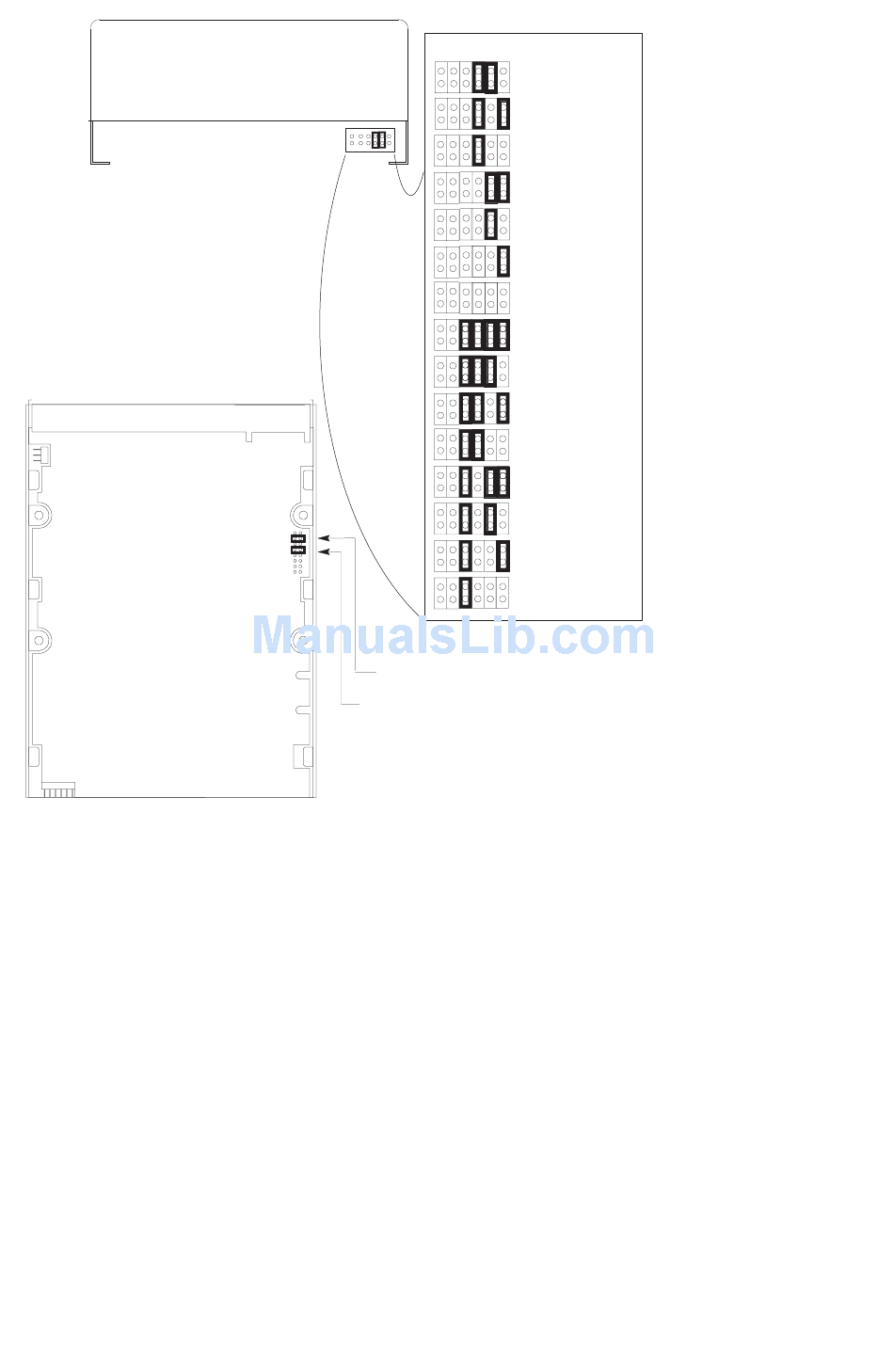

Figure 3–2. 1.0 GB, 2.0 GB, Fast, Wide Differential
Disk Drive Jumper Settings
Jumpers: FW SCSI Address
6
5
4
3
2
1
0
15
14
13
12
11
10
9
8
Terminator Power
Parity Enable Configuration
Configuration
Highest
Priority
Lowest
Priority
3–3
