HP Visualize J2240 Upgrade Instructions

HP Visualize J2240 Upgrade Instructions

J class workstations
Hide thumbs Also See for Visualize J2240:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Service Handbook

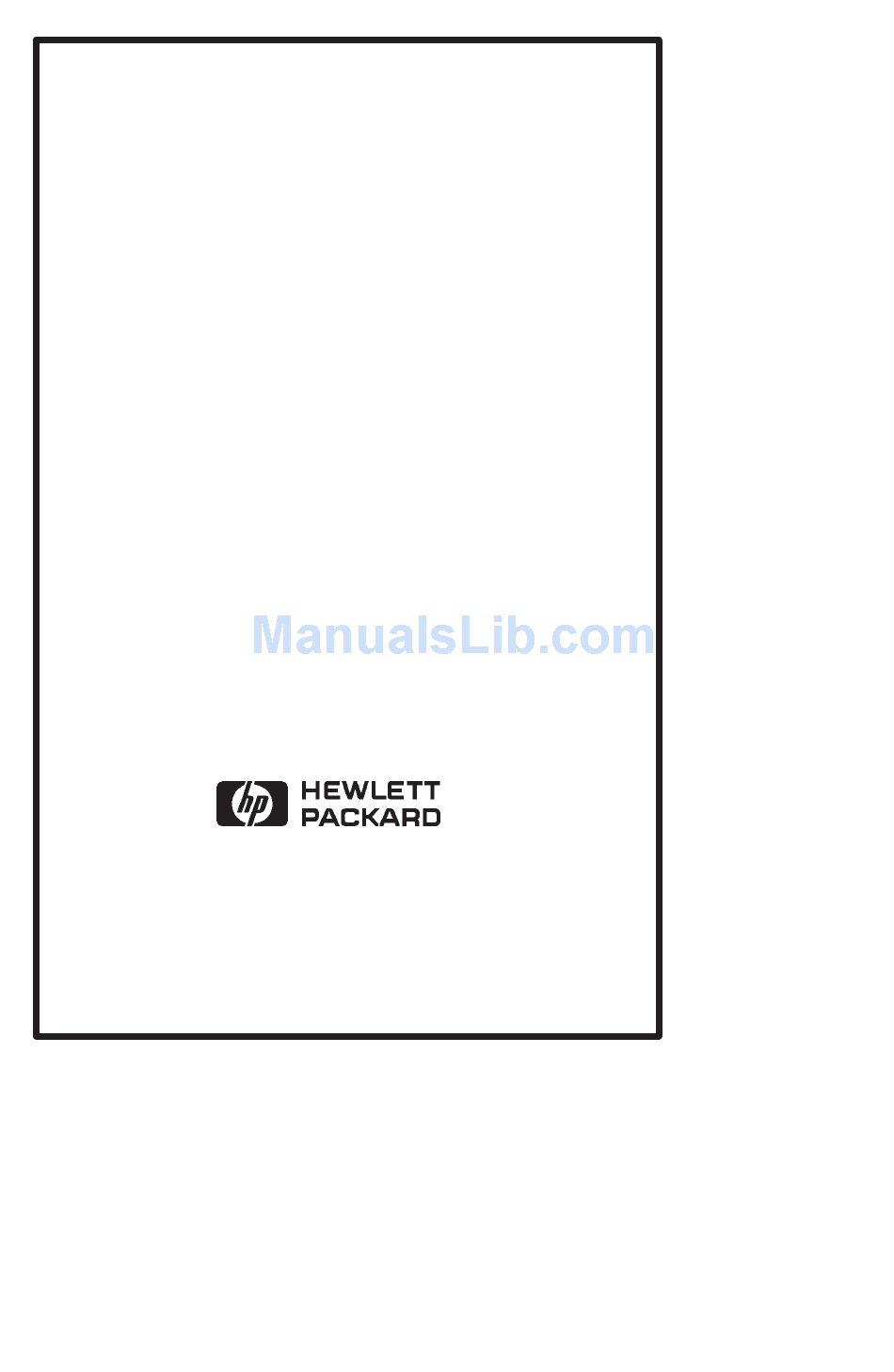

Model J2240
Upgrade Instructions
J Class Workstations
HP Part Number A2876–90012
Edition E0198
R
Hewlett–Packard Company
3404 E. Harmony Rd., Ft. Collins, CO 80528–9599

Advertisement

Table of Contents
loading

Related Manuals for HP Visualize J2240

Summary of Contents for HP Visualize J2240

  • Page 1 Model J2240 Upgrade Instructions J Class Workstations HP Part Number A2876–90012 Edition E0198 Hewlett–Packard Company 3404 E. Harmony Rd., Ft. Collins, CO 80528–9599...

  • Page 2: Printing History

    (Minor corrections and updates which are incorporated at reprint do not cause the date to change.) The manual part number changes when extensive technical changes are incorporated. HP Part Number Printing Date A2876–90010 November1996 A2876–90011...
  • Page 3 Install PHCO_13952 J2240 Upgrade Utilities Patch The workstation must be running HP–UX 10.20 ACE (Feb 1998) plus J2240 Workstation software or later to accommodate the J2240 upgrade. If the workstation is running a version of HP–UX lower than 10.20, update the operating system software before continuing.
  • Page 4 (If you have not already registered with the HP ESC, click on the Register Now link, read the Terms & Conditions agreement, enter your user information and password to login to the HP ESC. Be sure to record your User ID and password. Then go to the HP ESC Main Page.) Click on the Patch Database link.

  • Page 5: Emissions Regulations

    Ask the dealer or an experienced radio/television technician for help. Hewlett–Packard’s system certification tests were conducted with HP–supported peripheral devices and HP shielded cables, such as those you receive with your com- puter. Changes or modifications not expressly approved by Hewlett–Packard could void the user’s authority to operate the equipment.

  • Page 6: Emissions Regulations Compliance

    Emissions Regulations Compliance Any third–party I/O device installed in HP system(s) must be in accordance with the requirements set forth in the preceding Emissions Regulations statements. In the event that a third–party noncompliant I/O device is installed, the customer assumes all responsibility and liability arising therefrom.

  • Page 7: Warnings And Cautions

    Warnings and Cautions WARNING: Removing device cover may expose sharp edges in equipment chassis. To avoid injury, use care when installing customer add–on devices. WARNUNG: Das Entfernen der Geräteabdeckung legt die scharfen Kanten im Inneren des Gerätes frei. Um Verietzungen zu vermeiden, seien Sie vorsichtig beim Einbau von zusätzlichen Bauteilen, die vom Kunden selber eingebaut werden können.
  • Page 8 3. HP does not warrant that the operation of HP products will be uninterrupted or error free. If HP is unable, within a reasonable time, to repair or replace any product to a condition as warranted, customer will be entitled to a refund of the purchase price upon prompt return of the product.

  • Page 9: Kit Contents

    Kit Contents New Main Tray Assembly (CPU board) New PCI/EISA Assembly New I/O Assembly Support Media User Manual PA–RISC Computer System HP Part Number B3782–90202 Model J2240 Upgrade Instructions J Class Workstations HP Part Number A2876–90012 J2240 Model Label Static strap...

  • Page 10: Installation Prerequisites

    Operating System Verify that you have loaded the necessary operating system software on your system (HP–UX 10.20 ACE (April 1998) or later). This software must be loaded on the system before performing this upgrade procedure. We also recommend installing software diagnostics.

  • Page 11: Associated Documentation

    Safety glasses (needed for Model J2240 Label change) Associated Documentation The following documents are associated with the upgrade kit. J282/2240 Service Handbook (HP Part Number A2876–90041)* J282/2240 Owner’s Guide(HP Part Number A2876–90015)* Model J2240 Upgrade Instructions J Class Workstations HP Part Number A2876–90012 (This document)

  • Page 12: Upgrade Procedures

    Upgrade Procedures The upgrade procedure consists of the following sections: Powering Off the System Removing the I/O Assembly Removing the EISA Assembly Removing the Front Bezel Removing the Main Tray Assembly Removing Memory DIMMs Installing the Memory DIMMs Installing the new J2240 Main Tray Assembly Changing the Model Label Replacing the Front Bezel Installing the PCI/EISA Assembly...

  • Page 13: Powering Off The System

    Powering Off the System Before performing this upgrade procedure, observe the following precautions: The workstation must be running HP–UX 10.20 ACE (April 1998) or later to accommodate the J2240 upgrade. If the workstation is running a version of HP–UX lower than 10.20, update the operating system software before continuing.
  • Page 14 Power down the system. Use the command shutdown –h now to shutdown the HP–UX operating system. Then turn the system unit off. Unplug the system unit power cord and the power cords of any peripheral devices from ac wall outlets.
  • Page 15 WARNING: To avoid electrical shock, make sure that you unplug the power cable from the wall outlet and the system unit before proceeding further. CAUTION: The internal components of the workstation are sus- ceptible to mechanical and electrostatic shock. To prevent such damage from occurring, observe the following precautions during the installation proce- dure:...
  • Page 16 Removing the J282 I/O Assembly The following steps describe how to remove the J282 I/O Assembly. Figure 1. J282 I/O Assembly removal...
  • Page 17 Attach the static–grounding wrist strap by following the instructions on the package. Attach the the sticky end of the wrist strap to bare metal on the system unit. Disconnect all peripheral cables from the I/O Assembly connectors. Loosen the the four screws on the J282 I/O Assembly using a #20 Torx or flat–blade screwdriver.
  • Page 18 Removing the J282 EISA Assembly Follow these steps to remove the J282 EISA Assembly from your workstation: Disconnect all peripheral cables from the EISA Assembly connectors. Working from the rear of the workstation, unscrew the four captive screws. Pull the EISA Assembly straight out using the handle. See Figure 2. Set the EISA Assembly aside.

  • Page 19: Removing The Front Bezel

    Removing the Front Bezel To remove the front bezel follow these steps: CAUTION: Do not attempt to operate the workstation with the front bezel removed. The bezel is needed to ensure proper air flow for system cooling. Figure 3. Removing the Front Bezel Release the front bezel by pushing in the two locking tabs at the front of the system unit as shown in Figure 3.
  • Page 20 Removing the J282 Main Tray Assembly To remove the J282 Main Tray Assembly (CPU Tray) follow these steps: Figure 4. Removing the Main Tray Assembly Remove the two screws in the center of the J282 Main Tray Assembly using a #20 Torx driver.
  • Page 21 Pull the Main Tray Assembly straight out and place on a flat surface. This assembly is heavy. Move it slowly and be sure it is properly supported. CAUTION: The CPU Modules are HOT and may cause burns. Allow the Main Tray sufficient time to cool before removing it.

  • Page 22: Removing Memory Dimms

    Removing Memory DIMMs To remove the memory modules from the J282 Main Tray (CPU board), do the following: Locate the memory DIMMs in the Main Tray, as shown in Figure 5. Memory Bracket Figure 5. Memory Retention Bracket and Memory DIMM Location Remove the Memory Retention Bracket (if in place) and set aside.
  • Page 23 To remove a memory DIMM, push the ejector handles on the side of the DIMM. Lift the memory DIMM up and out of the connector. Place the memory DIMM on a static–free service. Figure 6 shows how to remove the memory DIMM.

  • Page 24: Installing Memory Dimms

    Installing Memory DIMMs Install the memory DIMMs in the new J2240 Main Tray as described in the following procedure: To install a memory DIMM, open the ejector tab and line the DIMM up with the guides as shown in Figure 7, making sure to put the notched end toward the white ejector handle.
  • Page 25 NOTICE: Install memory DIMMs in the J2240 DIMM slots as pairs (DIMMs must be same size to make a pair). Load DIMMs in ascending pair order (e.g. pair 1 then pair 2). Use Figure 8 as a guide. Pair 8 Pair 6 Front of System...
  • Page 26 Installing the New J2240 Main Tray Assembly Install the new J2240 Main Tray Assembly as described in the following procedure: Remove insulator strip from the calendar battery on the new J2240 Main Tray Assembly. Pull Main Tray Ejector Handles to open position. CAUTION: Do Not install the J2240 Main Tray Assembly un- til you have removed the J282 EISA Assembly or you will damage connectors on both assemblies.
  • Page 27 Figure 9. Replacing the Main Tray Assembly Replace the two main tray retaining screws, as shown in Figure 9.

  • Page 28: Changing The Model Label

    Changing the Model Label Before replacing the front bezel, you need to remove the old model label. Follow these steps to remove the old model label and replace it with the new model label. Using a flat blade screwdriver on the inside of the front bezel, break off the plastic tab behind the sheet metal as shown in Figure 10.
  • Page 29 Figure 11. Prying Off the Old Model Label Press the new model label into the three grooves.

  • Page 30: Replacing The Front Bezel

    Replacing the Front Bezel When replacing the front bezel, follow these steps, ensuring that the top latches snap completely into position: Line up the two guide pins on the bottom with their guides and swing the panel Push the front bezel against the two locking tabs at the front of the system unit and ensure they lock in place.
  • Page 31 Installing the PCI/EISA Assembly Move your GSC/EISA cards from your J282 EISA Assembly to your J2240 PCI/EISA Assembly and install the J2240 PCI/EISA Assembly by using the following steps: Place both of the assembly units side by side and rotate them 90 degrees clockwise and place on a flat surface, as shown in Figure 13.
  • Page 32 Unscrew one screw at the back of each of the covers using a #15 Torx driver and lift the covers up and out to remove them from the EISA Assemblies. See Figure 14. Figure 14. Removing the EISA Assembly Cover...
  • Page 33 Unscrew one screw at the top of the slot cover of the J2240 PCI/EISA Assembly using a #15 Torx driver and pull the cover straight up to remove it. See Figure 15. To remove a board from the J282 EISA assembly, unscrew one screw at the top of the slot handle and put the card edge and handle straight up to remove it.
  • Page 34 Place GSC or EISA board removed from the J282 that you are installing into the J2240 in the board guides and slide firmly into the connector. Check to see the board is evenly inserted to seat properly. See Figure 16. Figure 16.
  • Page 35 Before installing the cover on the J2240 PCI/EISA Assembly, if you installed an EISA or graphics board that is taller than a PCI card remove the small break–off block from the cover that corresponds to that slot. Refer to Figure 17, which shows the block removed for Slot 0.
  • Page 36 Insert cover in guide and secure with screw. Refer to Figure 18. CAUTION: The Guide must be properly and completely installed in the slot or the cover may dislodge and prevent you from removing the PCI/EISA Assembly from the system unit. Guide Figure 18.
  • Page 37 Rotate the J2240 PCI/EISA Assembly unit back 90 degrees as shown in Figure 19 and grasp the handle. Figure 19. Rotating the J2240 PCI/EISA Assembly Back...
  • Page 38 Slide the J2240 PCI/EISA Assembly into the system unit and secure it with the four captive screws. See Figure 20. You may need to tip or rotate the PCI/EISA assembly slightly to get it past the system unit tie–down point. CAUTION: Do Not install the J2240 PCI/EISA Assembly until you have replaced the J282 Main Tray Assembly with the new J2240 Main Tray Assembly or you...
  • Page 39 Installing the New J2240 I/O Assembly The installation of the J2240 I/O Assembly is detailed in the following steps: Figure 21. J2240 I/O Assembly installation...
  • Page 40 Slide the J2240 I/O Assembly in position using the handle. Install the the four screws on the J2240 I/O Assembly using a #20 Torx driver. NOTICE: The I/O Assembly has a new regulatory label which references a different product number than that of the adjacent SCSI Bulkhead.

  • Page 41: Verifying System Operation

    1–888–301–5932 (US & Canada) or contact the HP Response Center for your country. Filling Out the Return Form and Returning Original Parts Follow the instructions on the Hewlett Packard Upgrade Return Instructions sheet included with the upgrade return kit.
  • Page 42 Hewlett–Packard Co. 1998 Printed in USA Edition No. E0198 HP Part Number A2876–90012 *A2876-90012*...
