4. Set the drawer on a flat surface.
NOTICE:
The EMI plate may have a fan attached to it. If it
does go to step 7.
EMI Plate with no Fan Attached
5. Unscrew the captive screw holding the EMI plate at the back of the removable
drives and lift the plate up and out of the drawer, as shown in Figure 5–44.
6. Disconnect the SCSI and power cables from the drive.
7. Go to step 13.

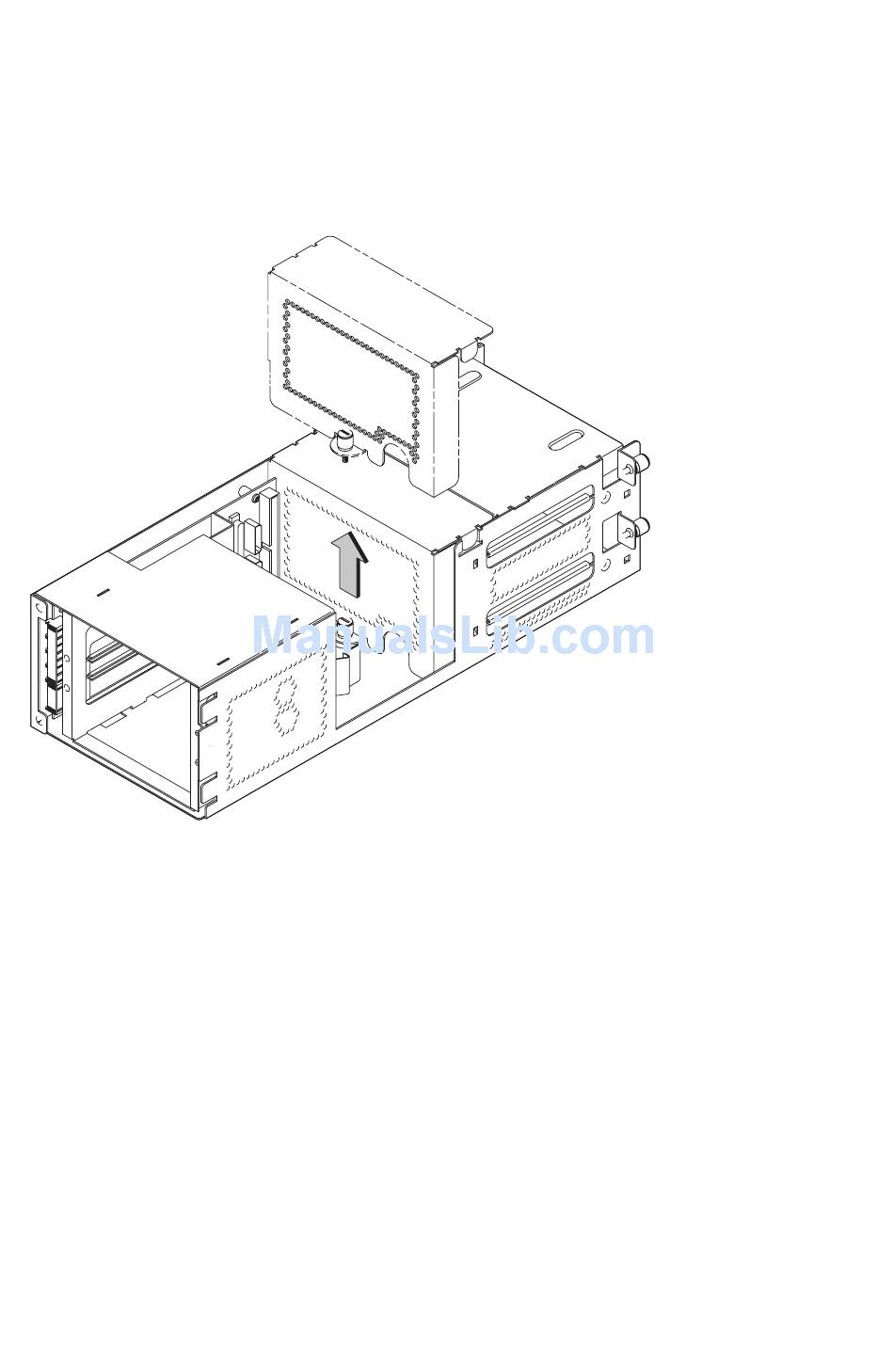

Figure 5–44. Removing EMI Plate
Field Replaceable Units
5–49
